AccuPel DGA-6000 User Manual

Ultra-hd video generator / analyzer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AccuPel
DGA-6000 Documentation - User Manual
DGA-6000
Ultra-HD Video
Generator / Analyzer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DGA-6000 and is the answer not in the manual?

Questions and answers

Related Manuals for AccuPel DGA-6000

Summary of Contents for AccuPel DGA-6000

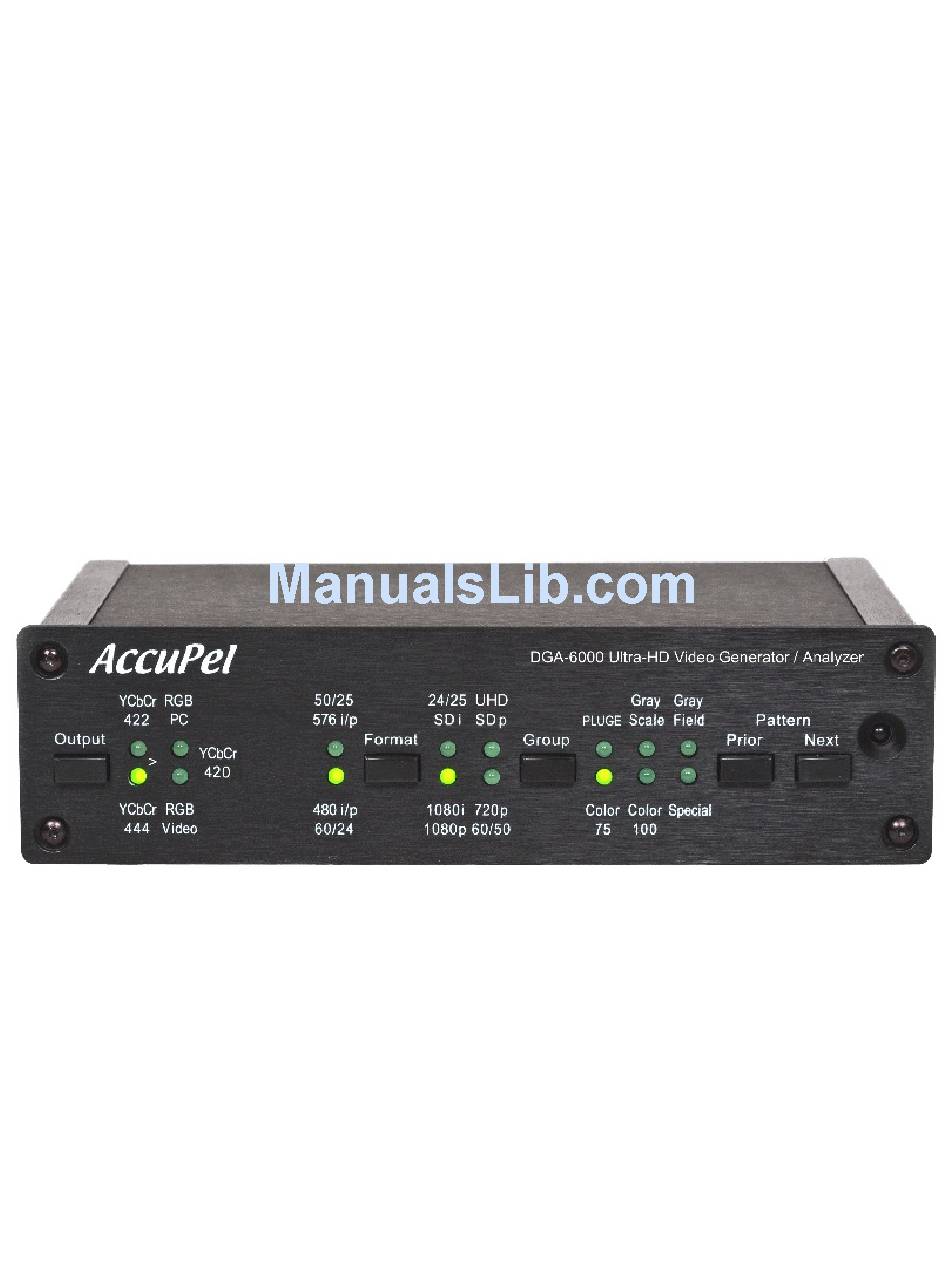

  • Page 1 AccuPel DGA-6000 Documentation - User Manual DGA-6000 Ultra-HD Video Generator / Analyzer...

  • Page 2: Safety Information

    Version 0.995 Safety Information • Do not expose the DGA-6000 to rain or moisture. Do not operate the DGA-6000 with the covers removed. • Use only the supplied power module. Route power cords so they will not be stepped on or pinched by anything placed on or against them.

  • Page 3: Table Of Contents

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL TABLE OF CONTENTS INTRODUCTION: VERSATILE, ACCURATE, EASY-TO-USE ............1 FRONT PANEL CONTROLS ........................5 LED I ............................5 NDICATORS ............................. 5 UTPUT ELECTOR ......................... 5 UTPUT NDICATOR 50 H / 60 H ...........................

  • Page 4: Introduction: Versatile, Accurate, Easy-To-Use

    Two Independent Test Equipment Devices in a Single Product The DGA-6000 is a 4K Ultra-HD Video Generator and a 4K Ultra-HD Video Analyzer, and both functions are HDR and Rec. 2020 compatible. The Generator and Analyzer can be used independently to test video sources and video displays, or together to test or calibrate video processors.
  • Page 5 DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL All DGA-6000 2D test patterns are available in all 33 3D video formats. All 3D formats are available in 10-bit native (and 8-bit native) YCbCr 4:2:2, and Deep Color (10-bit native) and 8-bit native YCbCr 4:4:4, RGB- Video, and RGB-PC output modes.

  • Page 6: Front Panel Controls

    Front Panel Controls LED Indicators Each time power is applied to the DGA-6000 the PLUGE, Gray Scale, and Gray Field LEDs will illuminate in sequence for about 15 seconds as the Generator and Analyzer functions are initialized. The inactive Format LEDs blink once when any valid IR remote control command is received. Any slowly blinking LED indicates that a special feature mode is active (e.g.

  • Page 7: Format Selector

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Format Selector Press and release the Format button to change the video format in the following order - 1080i, 720p, SD i, SD p, 1080p60(50), 1080p24(25), and a UHD (e.g. 2160p) user-selectable format (if its frame rate matches the 50/60 Hz selection).

  • Page 8: Prior & Next Pattern Selector Buttons

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Gray Scale Window & Gray Field Values When the Gray Scale window or Gray Field patterns are changed (from the front panel or the IR remote control) the PLUGE, Color 75, Color 100, and Special LEDs temporarily produce a binary code that represents the luma value of the window or field.

  • Page 9: Ir Remote Control Functions

    IR Remote Control Functions The AccuPel DGA-6 IR (Infrared) Remote Control provides selection of all calibration patterns, signal settings, and analyzer functions of the AccuPel DGA-6000. It is also used to navigate and select settings in the DGA-6000 On-Screen Display (OSD) menus.

  • Page 10: Format Selection

    Generator menu. The 59.94 mode produces the 23.98p and 29.97p formats (more precisely they are 24/1.001 and 30/1.001 respectively). Note: 1080p formats are indicated on the DGA-6000 front panel by illuminating the 1080p LED and the 60/50 or 24/25 LED. 2160p formats (and 1080p30) are indicated by...

  • Page 11: Pattern Selection

    User-Defined Pattern List Up to 10 patterns can be stored in the user-defined pattern list. The user-defined pattern list is stored in the DGA-6000 and is discarded if the power is disconnected. Store - The currently displayed pattern is stored in the pattern list.

  • Page 12: Other Generator Ir Remote Control Functions

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Other Generator IR Remote Control Functions Mute – Press the Mute key to produce a 0% black field. Press again to restore the previous pattern. Func – Press and release the Func key prior to a second key to select additional functions and shortcuts.

  • Page 13: On Screen Display (Osd)

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL On Screen Display (OSD) OSD Menu Systems The Generator and Analyzer functions have separate OSD systems that overlay menus, information, cursors, and human interface elements over their respective video outputs. The Generator OSD system includes a main Generator Menu, a Pattern Information Bar, and additional special menus for Motion Patterns and the 3D Crosstalk Pattern.

  • Page 14: Menu Navigation

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Menu Navigation The main Generator and Analyzer Menus are organized into three columns. The left column of the Generator Menu lists eight sub-menus – User, Output 1, Output 2, Info, Misc, Defaults, (AVI) InfoFrame, and 3D Mode.

  • Page 15: Generator Osd Menu

    16 and reference white is 235 for 8-bit video, and black is 64 and reference white is 940 for 10-bit video. If the RGB-PC output mode is selected the DGA-6000 will temporarily convert the entered video values to conform to PC levels where black is 0, and reference white is either 255 (8-bit) or 1023 (10-bit).
  • Page 16 HD V Rate – Select 59.94 or 60.00 Hz field/frame rate for HD/UHD signals. HDMI/DVI – Select HDMI or DVI output. Some older video monitors and computer monitors will not display HDMI protocol signals. (Note: The DGA-6000 Analyzer function is not compatible with the older DVI signals.) Deep Color –...
  • Page 17 DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Output 2 Sync HD – Select positive or negative HD/UHD digital sync. Positive is standard. Sync SD – Select positive or negative SD digital sync. Negative is standard. Sync Posn (Position) – Change Hsync (+/- 99 pixels) and Vsync (+/- 15 lines) position. Use with overscan pattern to measure H &...
  • Page 18 DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Misc USB Baud – Current Baud Rate selection. Also see Appendix A, the USB Interface Manual. USB Flow – Flow control selection. Also see Appendix A, the USB Interface Manual. HDMI Range – Select HDMI Standard (also called Limited) Range (1-254, 4-1019), or HDMI Full Range (0-255, 0-1023) for YCbCr and RGB-video signals.
  • Page 19 Infoframe – Select Infoframe On or Off. A CTA-861 Vendor Specific Infoframe is normally sent from the DGA-6000 to the display (or video processor) to identify the video signal’s 3D Structure. A 3D display, or a 3D compatible processor, uses the Infoframe information to correctly process and/or display 3D signals.

  • Page 20: Video Analyzer

    UHD TV or UHD Monitor equipped with an HDMI input that supports HDCP v2.2. The DGA-6000 will not remove or alter the HDCP protection level of the Analyzer’s incoming video signals. The Analyzer will not change incoming signal formats or convert HDR video to SDR video. Therefore, the Monitor must be fully compatible with the video source driving the Analyzer input, else the Monitor may display the source video and the Analyzer information panes incorrectly, or not at all.

  • Page 21: Analyzer Ir Remote Control Functions

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Analyzer IR Remote Control Functions Func – Press and release the Func key prior to pressing a second key to select additional functions or shortcuts. Any key not assigned a Func sequence cancels a previous Func key.

  • Page 22: Analyzer Pixelpane

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Analyzer PixelPane Heading - Cursor Values Modes – Frame, Field 1, Field 2 (interlaced frames only) Pixel ViewPort – A magnified live view of the pixel area surrounding the cursor pixel (intersection of horizontal and vertical cursor lines).

  • Page 23: Analyzer Infopanes

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Analyzer InfoPanes (Pro Engineering Option only) APL InfoPane Heading - Signal Levels Modes – Frame, Area Displayed Data – Measures Y,Cb,Cr or G,B,R (8/10/12-bit) min/max values in frame or Area rectangle, and frame APL% (average picture level). Peak reading.
  • Page 24 DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL HDCP InfoPane Heading - HDCP Status Modes – Analyzer input HDCP version. Select Off, v1.x, v2.2. Allow up to 10 seconds for the source, analyzer, and monitor to properly re-establish HDCP communications and possibly change to a different video format. An HDCP 2.2 source will often switch to a lower resolution output format when the input port has a lower HDCP level.

  • Page 25: Analyzer Infoframe Types

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Analyzer InfoFrame Types (Pro Engineering Option only) Note: InfoFrame protocols are documented in copyrighted standards. Please refer to the appropriate standards listed below for identification of the parsed InfoFrame data values in the Analyzer InfoPanes.

  • Page 26: Rear Panel I/O

    YCbCr 4:4:4, and YCbCr 4:2:2 digital video signals (2160p50/60 8-bit YCbCr 4:2:0 only). USB Input/Output Port USB input/output. Use a Type A to Type B USB cable to connect the DGA-6000 to a computer. Requires a DGA-6000 USB driver that can be downloaded from www.accupel.com. (See Appendix A, the DGA-6000 USB Interface manual for details.)

  • Page 27: Test Pattern Notes

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Test Pattern Notes Color 75 Group 75% Tri-split Color Bars – Check or adjust Color Saturation and Hue controls by matching color bars while individually viewing each primary color. (Use display controls to enable single primary colors, or view through color filters.) Similar to SMPTE Color Bars, but offset and split for easier...

  • Page 28: Pluge Group

    Motion Patterns (70) – Pro Engineering Option only. 70 Motion Patterns including Circular & Hyperbolic Zone Plates, Linear Frequency Sweeps, Resolution Wedges, Cosine Balls, & Detail Discs. Refer to Appendix B, the DGA-6000 Motion Pattern Manual for extensive details. PLUGE Group 0% APL PLUGE - Calibrate black level and measure black level stability at 0% Average Picture Level.

  • Page 29: Gray Scale Group - Low -Gs, High -Gs

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Gray Scale Groups 10-Step Vertical Gray Scale Linearity (3) - Check grayscale tracking and color temperature. 0%- 100% in 10% steps, Low-GS 0%-10% in 1% steps, High-GS 100%-109% in 0.9% steps. 10-Step Split Vertical Gray Scale Linearity (3) - Check grayscale tracking and color temperature.

  • Page 30: Using The 3D Crosstalk Pattern

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Using the 3D Crosstalk Pattern In the Generator menu select the 3D Mode sub-menu’s Crosstalk item to produce a special test pattern to measure the amount of 3D crosstalk between left eye and right eye images as seen through 3D glasses.

  • Page 31: Characteristics

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Characteristics Compatible Picture Formats (59.94 & 60.00 Hz based) 2160p59.94/60 3840 x 2160 Pixels - Progressive Active Picture Area YCbCr 4:2:0 only 4400 x 2250 Pixels - Progressive Total Frame (per CTA-861-F) 296.70330 (297.0/1.001) / 297.00000 MHz Pixel Clock Rates...

  • Page 32: Picture Formats (50.00 H Z Based )

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Characteristics (cont) Compatible Picture Formats (50.00 Hz based) 2160p50 3840 x 2160 Pixels - Progressive Active Picture Area YCbCr 4:2:0 only 5280 x 2250 Pixels - Progressive Total Frame (per CTA-861-F) 297.00000 MHz Pixel Clock Rate 50.00 Hz Frame Rate...

  • Page 33: Mode

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Characteristics (cont) 33 Available 3D Structure/Formats R60 – Required Format 60 Hz Display’s Must Accept R50 – Required Format 50 Hz Display’s Must Accept – Primary Format 3D Structures – Secondary Format Frame Packing 1080p23.98/24 (R60, R50, P)

  • Page 34: Standard Calibration Patterns

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Characteristics (cont) Standard Calibration Patterns (115 Patterns) (+70 Pro Option Patterns) Color 75 (16) 75% Color Bars & 75% Tri-Split Bars, User Color Window/Field, 75% Red/Green/Blue/Cyan/Magenta/Yellow/Gray Window, 75% Red/Green/Blue/Cyan/Magenta/Yellow/Gray Field Color 100 (16) 100% Color Bars &...

  • Page 35: Limited Warranty

    USER MANUAL LIMITED WARRANTY DISPLAY CALIBRATIONS, LLC warranties that its AccuPel products will be free of defects in workmanship and material and conform substantially to published specifications under normal use and service. This warranty is made to the first purchaser of the products and extends for twelve (12) months from the date of sale.

  • Page 36: Appendix Ausb Interface Manual

    USB Driver To use the DGA-6000 USB port download and install a PC or Mac USB driver from the AccuPel website (www.accupel.com). Full instructions for installing the driver are included with the download.

  • Page 37: Serial Protocol

    Com Port protocols when using the USB port. The computer should be set to 8 bits, no parity, and 1 stop bit. It must also be set to match the DGA-6000 baud rate, which can be selected from 9600 baud to 230.4K baud in the OSD menu.

  • Page 38: Usb Interface Command Tables

    DVG-5000, HDG-4000 or HDG-3000 Video Generators that will still be executed by the DGA-6000, and also commands that have no DGA-6000 function but for software compatibility will still be accepted without returning an ER (error) message. Legacy commands will be depreciated in future AccuPel generators.

  • Page 39: Format Commands

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Format Commands Formats Command Legacy Notes 2D Formats 480i 480p 720p60 720p Produces 720p59.94 or 720p60 1080i60 1080i Produces 1080i59.94 or 1080i60 1080p24 Produces 1080p23.98 or 1080p24 1080p30 Produces 1080p29.97 or 1080p30 1080p60 Produces 1080p59.94 or 1080p60...

  • Page 40: Group Commands

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Group Commands Groups Command Legacy Notes Groups Color75 These commands are usually not needed. Color100 Send Pattern commands instead. Special PLUGE Grayscale Selects NormalGS, LowGS, or HighGS Grayfield Grayscale NormalGS 10% - 100% Grayscale patterns (default)
  • Page 41 DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Special Overscan Overscan 1% Lines InvOverscan Inverse Overscan 1% Lines XHatch Crosshatch InvXHatch Inverse Crosshatch NeedlePulse Dual Needle Pulses CMultiBurst Color Pixel Multiburst MultiBurst Pixel Multiburst CrossHair Cross Hair and 4:3 Sizing Sharpness Sharpness &...

  • Page 42: Pattern Conversion Commands

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Pattern Conversion Commands Pattern Command Legacy Notes Conversion Gray2Color Convert all non-color (gray) patterns to a color Gray2Off No conversion – remain gray (default) Gray2Green Convert to Green Gray2Blue Convert to Blue...

  • Page 43: Sync Commands

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Sync Commands Sync Command Legacy Notes Modes HD HV NegDHDSync Negative Digital HV HD sync Sync PosDHDSync Positive Digital HV HD sync (std mode) SD HV NegDSDSync Negative Digital HV SD sync (std mode)

  • Page 44: User Value Commands

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL User Value Commands User Value Command Legacy Notes Commands User Field Value UvalField Send command, wait for OK, send integer % text value from 0 to 109 ex. “UvalField”(CR), [“OK”], “65”(CR) User Window...

  • Page 45: Special Features Commands

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL User RGB Color UColorRGB10 Send command, wait for OK, send one 12- 10-bit Value character RRRRGGGGBBBB 10-bit RGB triplet. Each R,G,B value from 0004 to 1019 (0-100% = 64-940) UColorRGB10S Sequential (fast)

  • Page 46: Analyzer Commands

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Analyzer Commands Command Legacy Notes Monitor EDID @MonEDID? Read the Analyzer Monitor’s EDID Query Returns 16 rows of 16 (2-char) hex values separated by spaces with CR/LF at end of each row. (Import into Excel as a txt file)
  • Page 47 DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Appendix B Motion Pattern Manual Pro Engineering Option Only TABLE OF CONTENTS DGA-6000 MOTION PATTERN OVERVIEW ..................B-2 ACCESSING THE MOTION PATTERNS .................... B-3 ........................ B-3 ISPLAY A OTION ATTERN MOTION PATTERN MENU ........................B-3 ....................

  • Page 48: Dga-6000 Motion Pattern Overview

    The DGA-6000 Motion Patterns can be used to evaluate the performance of UHD and HD TVs and video processors. Motion patterns are essential to evaluate 1080i, 480i, and 576i deinterlacing, and the scaling of HD (and SD) video formats to UHD (or HD) display formats.

  • Page 49: Accessing The Motion Patterns

    1) Select the Special Patterns Group - Press the Special button on the remote control, or use the Group button on the remote control, or the DGA-6000 front panel to advance to the Special Group. 2) Select the Motion Pattern – The Motion Pattern is the last pattern in the Special Patterns group.

  • Page 50: Group

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Group – Selects a Motion Pattern Group – Circular ZP (Zone Plate), Hyperbolic ZP, Resolution (Wedges), Cosine Ball, Detail Disc, and Linear Frequency (Sweeps). The selected Motion Pattern Group is shown in the center column.

  • Page 51: Units

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Units – The unit for each cursor value is shown just below each cursor value whenever Cursors are enabled. The Units menu item and the cursor units are not displayed when the Cursors are Off. Use the Left and Right cursor keys to change the resolution and frequency units whenever Units is highlighted in green.

  • Page 52: Motion Items In The Main Osd Menu

    DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL Motion Items in the Main OSD Menu I-Motion (in Sync menu) – Determines how interlaced fields sync to pattern frequencies and motion. Phase-Lock – When an odd number of lines of vertical movement per field is selected, horizontal pattern lines at the Nyquist frequency will always be displayed in the interlaced fields.

  • Page 53: Introduction To Video Motion Testing

    Introduction to Video Motion Testing Quantitative and Qualitative Testing Motion patterns are an essential tool for assessing video performance. The AccuPel DGA-6000 motion patterns are digitally generated in real-time using mathematical algorithms that produce perfectly uniform spatial frequency characteristics for the measurement and evaluation of displays and video processors. The...

  • Page 54: Nyquist Frequency

    For demonstration purposes, the DGA-6000 Slow Edge filter (a digital horizontal spatial filter – not available for 2160p motion patterns) can be temporarily enabled to observe the aliasing reduction effects of low-pass filtering, but be sure to disable the Slow Edge filter when using the motion patterns to actually test displays or processors.

  • Page 55: Spatial Frequency Response (Mtf) & Effective Resolution

    MTF curve is expensive and best done in a laboratory environment. However, the DGA-6000 motion patterns include sinusoidal signals that produce Circular and Hyperbolic Zone Plates, Linear Horizontal and Vertical Frequency Sweeps, and Horizontal and Vertical Resolution Wedges for visually determining where the spatial frequency response (MTF) begins to roll-off, and the effective (limiting) resolution for both static and moving images.

  • Page 56: Motion Pattern Notes

    An Example of Measuring Effective Resolution with and without Motion – Set the DGA-6000 Format to match the native resolution of the display. For instance, if the native display resolution is 1920x1080 pixels select 1080i to make interlaced video resolution measurements (with deinterlacing), or 1080p to make progressive video resolution measurements.

  • Page 57: Detail Discs

    DGA-6000. For instance, the square details in the detail disc patterns are precisely 1, 2, 4, or 8 black or white pixels in length vertically and horizontally, so they are physically slightly rectangular rather than square on screen for standard-definition video formats.
