Summary of Contents for Unigraf UFG-05 4S

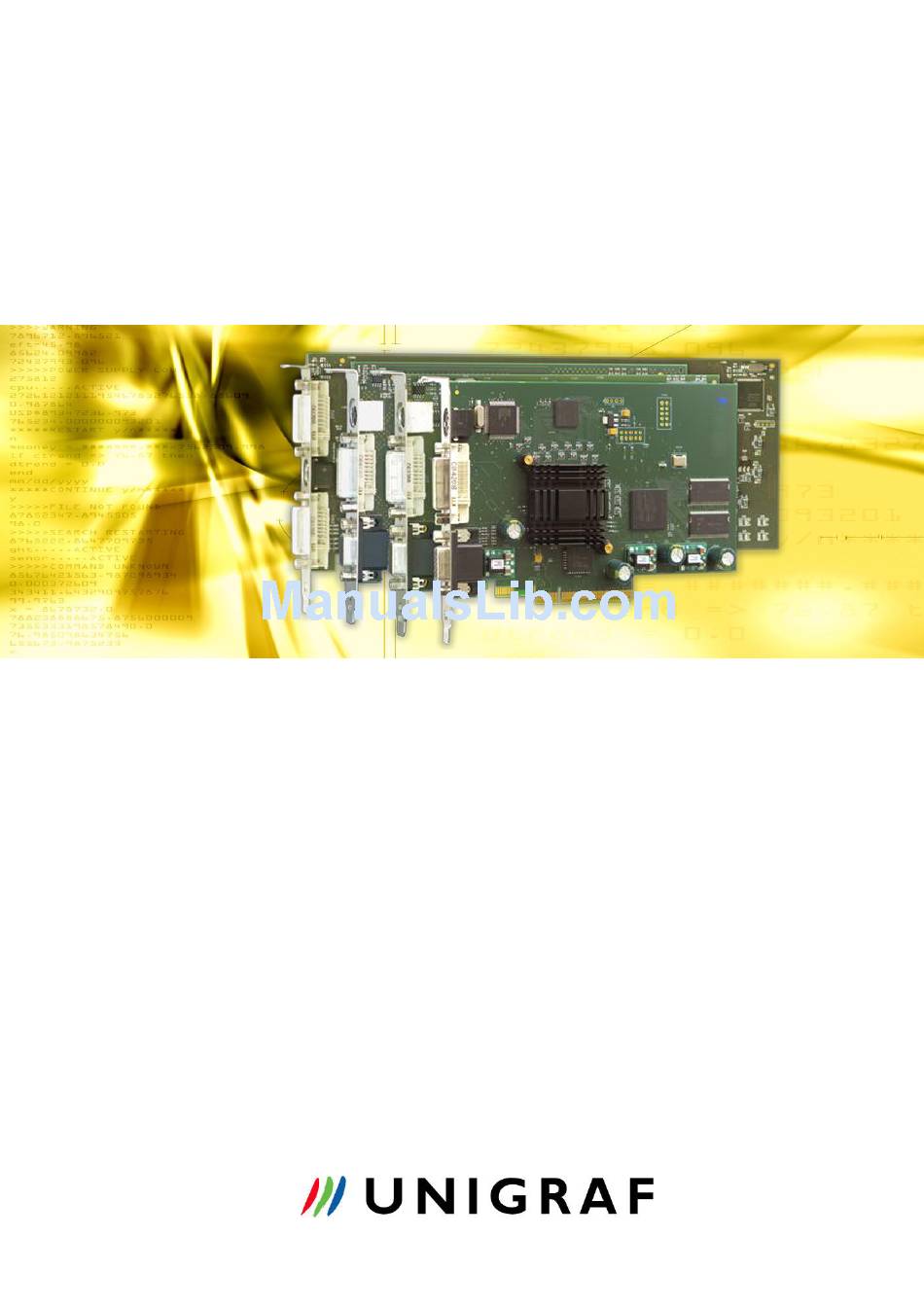

- Page 1 ® ® ® ® ® ® ® ®...
-
Page 2: Company Information
About this Manual Copyright This manual, Copyright © 2013 Unigraf Oy. All rights reserved Reproduction of this manual in whole or in part without written permission of Unigraf Oy is prohibited. Notice The information given in this manual is verified in the correctness on the date of issue. -
Page 3: Limited Warranty
Any product or part repaired by Unigraf pursuant to this warranty shall have a warranty period of not less than 90 days, from the date of such repair, irrespective of any earlier expiration of original warranty period. -
Page 4: Table Of Contents
About this Manual Table of Contents About this Manual .................... 5 Purpose ......................5 Product and Driver Version ................5 Notes ....................... 5 Introduction ...................... 6 Product Description ..................6 Product Features ..................... 6 Identifying Connectors ..................6 Installation......................7 Unpacking ...................... -
Page 5: About This Manual
Give instructions for the user how to capture images. Product and Driver Version This manual explains features found in product versions UFG-05 4S, UFG-05 1E, UFG-05 32, UFG-05 Dual 32, UFG-05 Dual 64 and Windows driver version 2.6. Please consult Unigraf for differences or upgrades of previous versions. -
Page 6: Introduction
XP (32 bit) and ® Microsoft Vista (32 and 64 bit) Identifying Connectors The UFG-05 4S, UFG-05 1E and UFG-05 32 boards have three connectors on their front panel: S-Video connector for S-Video and Composite Video (top) DVI-I connector for digital HDMI and DVI input (middle) ... -
Page 7: Installation
Installation 3. INSTALLATION Unpacking The UFG-05 family frame grabber product shipment contains The UFG-05 card in an anti-static bag The Utilities CD containing drivers for Windows operating system along with Ready to use sample Windows applications. An electronic copy of this User Manual is included. Note The UFG-05 boards are highly dedicated electronic devices that contain ESD sensitive components. -
Page 8: Driver Installation
Please use a PCI Rev 2.2 (66 MHz) slot for UFG-05 32 or UFG-05 Dual64, PCI-X (66 MHz) for UFG-05 Dual64, PCI Express 1.0 for UFG-05 1E and PCI Express 2.0 for UFG-05 4S. You can use either a 3.3 V or a 5 V slot ... -
Page 9: Firmware Update
Installation Firmware Update You can check the firmware version loaded into the non-volatile memory of the unit. The firmware version must match to the driver version used. Open the Capture Filter Properties dialog of e.g. AmCap tool. Select FG Properties tab. -
Page 10: Configuration
Configuration 4. CONFIGURATION Configuration Dialog The parameters that describe the input source can be configured by the Capture Filter Properties dialog. The dialog contains three tabs: Windows standard Video Decoder tab, a Video Proc Amp tab and the FG Properties tab. All capture properties for UFG-05 can be configured through the FG Properties tab. -
Page 11: Analog Input
Configuration Analog Input The Input timing section has a unique appearance for each input type. For Analog sources the section contains the full selection of controls for adjusting the position of the captured image in the video signal. On the top of the section you can see the detected timing mode. E.g. 1080p indicates a progressive timing and 1080i an interlaced timing. - Page 12 Configuration Manual Timing Adjustment For manual timing adjustments, please fill in the corresponding fields. In the Automatic Detection mode they are filled by the driver. HRes Horizontal size of the captured bitmap, VRes Vertical size of the captured bitmap HStart Horizontal start (horizontal sync + horizontal back porch VStart Vertical start (vertical sync + vertical back porch)
-
Page 13: Digital Input
Configuration Digital Input For Digital sources the Input Timing section contains only two automatically updated fields. Digital sources are set up automatically and they do not need any detection or calibration procedure. HRes horizontal size of the captured bitmap, VRes vertical size of the captured bitmap. Both for Analog and Digital inputs you can select the color mode as a Sub-type. -
Page 14: S-Video And Composite Video
Configuration S-Video and Composite Video S-Video and Composite Video sources are input through the S-Video Line-In jack in the rear panel of the frame grabber board. On the Sub-Type selection you can select between the input type and the video type. The selections are: Composite NTSC, Composite PAL, Composite SECAM, S-Video NTSC, S-Video PAL and S-Video SECAM. -
Page 15: Overriding Capture Format
Configuration Overriding Capture Format The Fix Capture Format section is used for overriding the source capture frame size and frame rate. You can do this by configuring the UFG-05 hardware to scale the captured image or by selecting only a pre-defined portion of the incoming frames for output. - Page 16 Configuration You can make the UFG-05 to override the frame rate request of the application by selecting the Override FPS check-box. The hardware will use the selection in the combo-box on the right. The first four settings are used for Frame Locking. This means that the UFG-05 returns all frames (SRC), every 2 frame (SRC/2), every 3 frame...
-
Page 17: Adjusting Captured Colors
Configuration Adjusting Captured Colors The Picture section contains controls for adjusting the color information. Brightness, Contrast, Hue and Saturation have unique values for all three input types. The values are stored and re-loaded when the corresponding input is selected. The Reset button sets the factory default values. -
Page 18: Advanced Controls
Configuration Advanced Controls The Advanced section contains controls for advanced features of the UFG-05 unit. The user might need the functions after the installation of the unit but not during the normal operation. Please use the features in this section with care. When done improperly, they may impair the correct operation of the UFG-05 unit. -
Page 19: Usage
Usage 5. USAGE The driver software provided with the UFG-05 family frame grabbers is an AVStream WDM driver compatible with standard capturing applications supporting Microsoft® DirectShow®. The driver is built for Microsoft® Windows 8, Windows 7, Windows XP and Windows Vista. Previewing Video You may preview the video captured by UFG-05 with applications like Windows Media Encoder, VirtualDUB, AmCap, GraphEdit, etc. -
Page 20: Applications And Troubleshooting
Usage Applications and Troubleshooting You might experience some issues in the tested applications. Here are the procedures how to resolve them. GraphEdit In GraphEdit insert the filter of the device (usually UFG-05 Channel) to the graph. Right click on the single pin and choose render. Start the graph with the play button. If you want to preview with a custom format, disconnect the graph by clicking on the arrow coming out of the UFG-05 filter and pressing the Del key. -
Page 21: Performance
Please use a PCI Rev 2.2 (66 MHz) slot for UFG-05 32 or UFG-05 Dual64, PCI-X (66 MHz) for UFG-05 Dual64, PCI Express 1.0 for UFG-05 1E and PCI Express 2.0 for UFG-05 4S. You can use either a 3.3 V or a 5 V slot The PCI bus performance is typically the limiting factor when previewing captured video. -
Page 22: Frame Locking
Usage The graph above shows the relation of the Requested Frame Rate (FPS) and the Achieved Frame Rate (fps). On a certain FPS level the achieved fps drops to half of the requested FPS and stays there. The FPS value jus below this point provides the optimum performance for the PC capturing setup. -
Page 23: Appendix A. Product Specification
UFG-05 32, UFG-05 Dual 32: 32-bit 66 MHz PCI (2.2) UFG-05 64: PCI-X 64 UFG-05 1E: PCI Express 1 lane (1.0) UFG-05 4S: PCI Express 4 lane (2.0) (8 lane physical) System Memory Size All models except UFG-05 4S, 4 GBytes maximum... -
Page 24: Driver Properties
UFG-05 Dual 32: 106 x 250 mm Power Consumption UFG-05 4S: 1 W max on +3.3 V; 5 W max on +12.0 V Other models: 6 W (9 W Dual 64) max on +3.3 V; 1 W max on +12.0 V... -
Page 25: Appendix B. Supported Video Modes
Appendix B. Supported Video Modes APPENDIX B. SUPPORTED VIDEO MODES Resolution (Pixels) Vertical Frequency (Hz) 640x480 60, 72, 75, 85, 100, 120, 135 640x350 640x400 60, 75, 100 700x525 720x400 70, 85 720x483 800x600 50, 56, 60, 72, 74, 85, 100 768x576 848x480 60, 70... -
Page 26: Declaration Of Conformity
DECLARATION OF CONFORMITY We declare under our sole responsibility that the following products: Unigraf UFG-05 family to which this declaration relates, is in conformity with the protection requirements of Council Directive: 89/336/EEC as emendated by 92/31/EEC and 93/68/EEC on the approximation of the laws of the Member States relating to Electromagnetic Compatibility.
