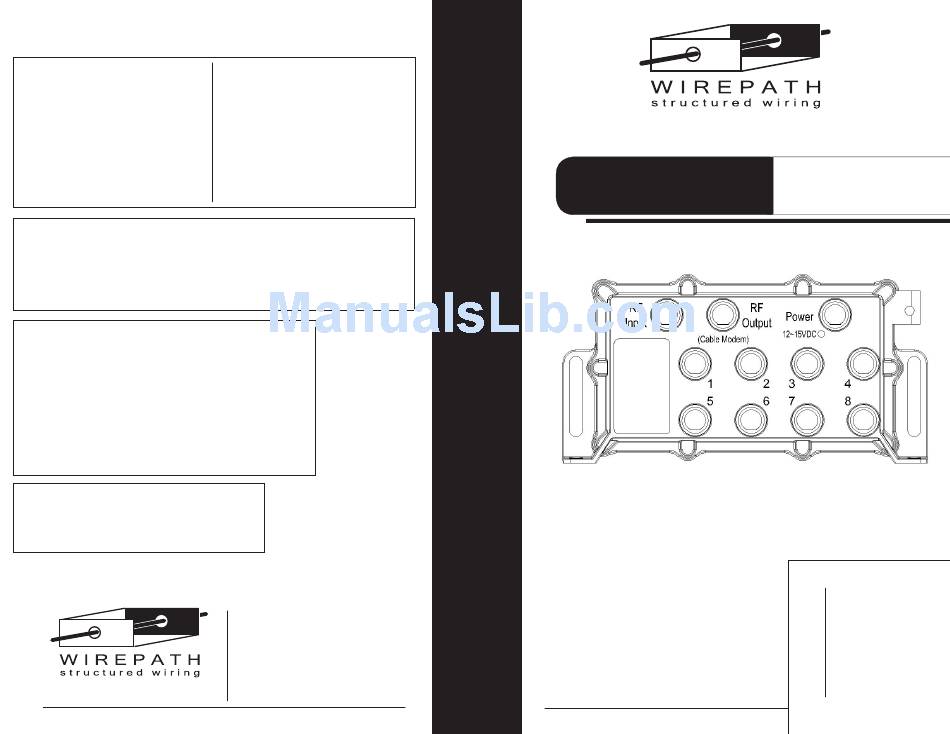

Wirepath WP-OUT-VID1X8PWR-PC Installation Manual

Specifications

8-Port Outputs
Reverse
Frequency Range 5-42MHz
Insertion Loss (Gain) -13.5dB (+/-0.5dB)
Return Loss -20dB
Forward
Frequency Range 54-1000MHz
Insertion Loss (Gain) +1.5dB (+/-0.75dB)
Return Loss -20dB
Group Delay
5-10MHZ / 36-42MHz <20ms/1MHz
20-36MHz <5ms/1MHz
54-60MHz <20ms/3.58MHz
60-1000MHz <5ms/3.58MHz
Surge 6KV/B3 ANSI81-2003/IEEEC62
Operating Voltage 12-15VDC – 300ma
Operating Temperature -40 - +60C
Environmental Die-cast Aluminum / Powder Coat Finish
500hours Salt Fog No Degradation
Ground Contact #10 AWG max
F-Ports 3/8"-32UNEF/B SCTE Compliant
Weather Sealed 15PSI
Power Supply
Input 110VAC/60Hz (UL Rated)
Output 1 15VDC – 300ma
Output Connector F-Type
Bypass Section
Reverse
Frequency Range 5-42MHz
Insertion Loss -6.8dB (+/-0.5dB)
Return Loss -20dB
Forward
Frequency Range 54-1000MHz
Insertion Loss (Gain) -6.8dB (+/-0.5dB)
Return Loss -20dB
CSO 62dB
CTB 70dB
XMOD 70dB
NF 2.8dB
Hum Modulation 70dB
Wirepath
Tech Support: 1. 866.838.5052
®
email: support@snapav.com
©2007 Snap AV • Charlotte, NC
100909
INSTALLATION GUIDE
2X6 POWERED RF VIDEO MODULE
Thank you for purchasing a great item from one of the highest value lines in
structured wiring available today, Wirepath. We appreciate your purchase and
are committed to being the best choice for your needs.
The Wirepath WP-MOD-VID2x6PWR is a superb
choice for almost every type of home installation.
It has been designed with advanced technology
components that allow high performance while
being flexible enough for any type of installation.
Use other Wirepath structured wire items for your
installation needs to get the best value possible
in your systems.
®
>>WP-OUT-VID1X8PWR-PC
INTRODUCTION & FEATURES
2
INSTALLATION
3
4 SPECIFICATIONS
