Dymec KY-501U Installation Manual

DYMEC Installation Guide

Introduction

The KY-501U is an industrial, 5 port Fast Ethernet switch.
Miniature Design, Temperature Hardened (-40 ~ +85 C), DC
powered switch (12 ~ 48 Volts DC) with 5 X 10/100 Base(T)X
RJ-45 Ports. Designed for extra small spaces, wide temperature
rage and harsh environments. Used in Security, Surveillance,
ITS, Robotic and scientific applications. Fits many fire alarm
boxes. DYMEC - American Industrial

Features

Supports 5 Fast Ethernet Ports (5 X 10/100Base(T)X // RJ-45
Supports auto-negotiation and auto-MDI/MDI-X
Supports store and forward transmission
Supports w control
Compact size for easily installation
Rigid IP-30 housing design
DIN-Rail and panel mounting enabled
Very Small Form Factor - Miniature - Palm Size

Practical Operation

D I G
KY-501U
KY-501U

Specifications

DYMEC Switch Model
KY-501U
Physical Ports
10/100 Base-T(X) Ports i RJ45
Auto MDI/MDIX
Technology
IEEE 802.3 for 10Base-T,
IEEE 802.3u for 100Base-T(X) and 100Base-FX,
Ethernet Standards
IEE E 802.3x for Flow control
NEMA TS-2
Store-and-Forward
Processing
LED indicators
Power indicator Green: Power LED x2
10/100TX RJ45 Port Indicator Green for port Link/Act. Amber for duplex indicator
Power
Input power Dual 12~48 VDC voltage power input at 4-pin terminal block
Power consumption(Typ.) < 3 Watts
Overload current protection YES
Reverse polarity protection Present on terminal block
Physical Characteristic
Enclosure IP-30, Military Grade
Dimension (W x D x H) 26.1(W) x 70(D) x 95(H)mm (1.03x 2.76 x 3.74nch.)
205 g
Weight (g)
Environmental
Storage Temperature -40 to 85 C (-40 to 185 F) o o
Operating Temperature
-40 to 85 C (-40 to 185 F)
Operating Humidity 5% to 97% Non-condensing
Regulatory approvals
EMI FCC Part 15, CISPR (EN55022) class A
EN61000-4-2 (ESD),
EMS
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
Warranty 5 years
PRINTED ON RECYCLED PAPER
Industrial Unmanaged Switch

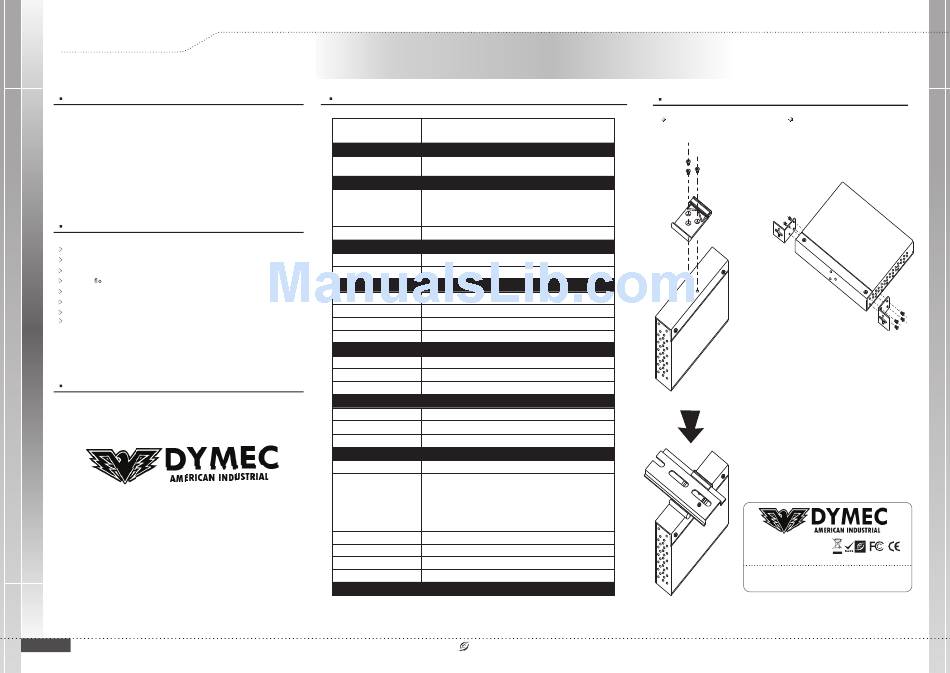

Installation

Din-Rail Install Step
5
Version 7.0
Wall-mounted Install Step
Copyright© DYMEC 2015
All rights reserved.
Web Sites: www.DYMEC.com
TELEPHONE: (816) 988-7861
FAX: (480) 287-8605 www.DYMECDIRECT.com
DYMEC Installation Guide
