Fraser Gazebo - Assembly instructions
Assembly instructions for: Fraser Gazebo • Bar counter
w w w . c a n a d i a n s p a c o m p a n y . c o m
Fraser Gazebo - Assembly Instructions

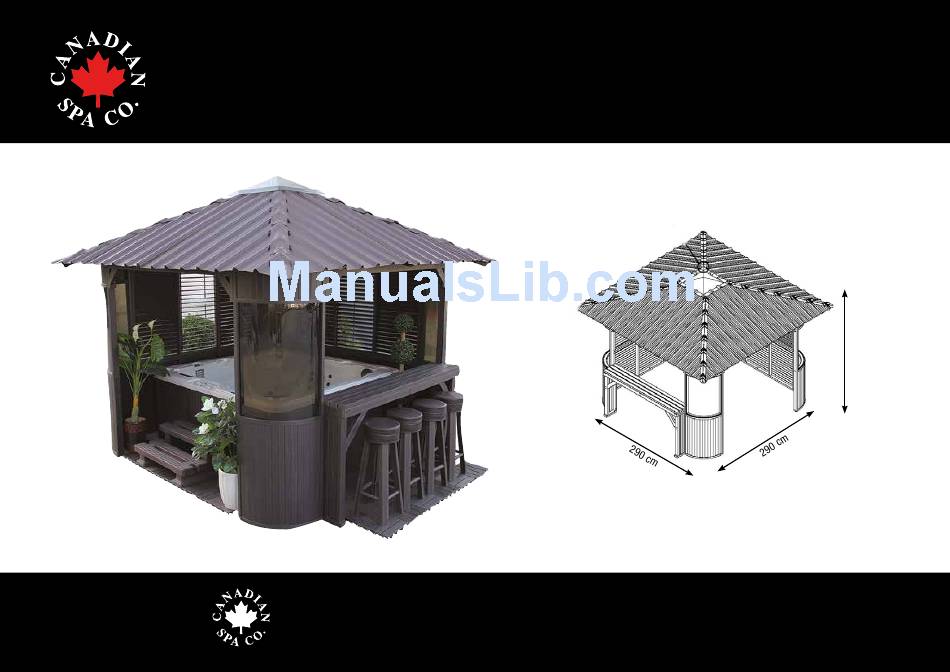

Freestanding Gazebo in synthetic wood with
Bar counter and Stools (optional)
• Two louvred sides
• Skylight
• Rounded corners with smoked acrylic
windows
• ABS roof
285 cm
• Easy 'nut and bolt assembly
• Bar
• 10' x 10' x 10' (290 x 290 x 285 cm.)
• 4 stools with seat covers (optional)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Fraser and is the answer not in the manual?

Questions and answers

Related Manuals for Canadian Spa Fraser

Summary of Contents for Canadian Spa Fraser

  • Page 1 • 4 stools with seat covers (optional) • ABS roof Assembly instructions for: Fraser Gazebo • Bar counter w w w . c a n a d i a n s p a c o m p a n y . c o m...

  • Page 2: Parts List

    Fraser Gazebo - Assembly Instructions Parts List: ITEM: PART: CARTON QTY: QTY (PIECES): Gazebo corner(s) Gazebo louvred wall panel(s) Gazebo bottom wall panel(s) Bar table top Bar table legs Bar stool seat(s)and covers (optional extra) Bar stool legs (optional extra)
  • Page 3 The main sections: The Fraser Gazebo is comprised of 4 main sections: 1.The Wall Structure, 2.The Roof, 3.The Bar, 4. Bar Stools x 4 (optional extra) Please check that you have ALL the parts you need before assembling the gazebo.
  • Page 4 Access to power and water for Spa* / Gazebo Before you take delivery of your Fraser Gazebo (and Spa) please take the time to decide where you want the Gazebo to be positioned with a view to access to electricity and water.
  • Page 5 Fraser Gazebo - Assembly Instructions 1. Bar assembly Item No. Name: Quantity: Bar table leg 2 pcs Bar table top 1 pc Support Brace 4 pcs Hexagon bolt M8*50 4 pcs Tapping screw M5*50 8 pcs Tapping screw M5 * 50 Hexagon screw M8 * 50 1.
  • Page 6 Fraser Gazebo - Assembly Instructions 2. Wall corner(s) assembly Item No. Name: Quantity: The right corner 1 pc of the bar table The left corner of 1 pc the bar table The corner of 1 pc louvred/panels The right corner...
  • Page 7 Fraser Gazebo - Assembly Instructions Name: Quantity: Item No. 3. Wall corner(s) assembly Corner 4 pcs Louvred window 2 pcs Bottom panel 2 pcs Hexagon bolt M8 * 50 Bar table 1 pc Connecting beam 2 pcs 40 pcs Hexagon bolt M8*50...
  • Page 8 Fraser Gazebo - Assembly Instructions 4. Roof frame joist(s) assembly Tapping screw CT M5*50 Roof frame joist Corner joist bracket 1. Link the 4 x Roof joists (1.97m) with corner joist brackets and connect to Gazebo frame using Tapping screws (CT M5*50)

  • Page 9: Roof Frame Assembly

    Fraser Gazebo - Assembly Instructions 5. Roof frame assembly 1. Roof (left hand-side): Keep the contact surface flat Left Hip rafter (2A) Ensure screw holes face upwards Tapping screw CT M5*50 Roof crossmember (1A) Rafter (3A) 2. Roof (right hand-side):...
  • Page 10 Fraser Gazebo - Assembly Instructions 6. Roof frame assembly M8*90 Bolts, Cap Nuts and Washers Roof frame Roof frame Once the two frames have been assembled connect Gazebo body them together using M8*90 Bolts, Cap Nuts and Washers. Then place the first roof frame on the Gazebo body.
  • Page 11 Fraser Gazebo - Assembly Instructions 7. Roof frame assembly Screw CT--M5*60 Screw CT--M5*60 M8*90 Bolts, Cap Nuts and Washers IMPORTANT: Make sure the Roof Frame is level with 1. Now assemble the remaining 3 Roof Frames on the Gazebo body before screwing the remaining frames Gazebo and combine them using M8*90 Bolts, Cap together.
  • Page 12 Fraser Gazebo - Assembly Instructions 8. Roof frame assembly Keep the contact surface flat Screw CT-M5*50 Sky light Frame Screw holes Centre Roof Rafter Centre Roof Rafter Centre Roof Rafter Centre Roof 1. Place the Sky light Frame on the Gazebo Roof and align the screw holes with...
  • Page 13 Fraser Gazebo - Assembly Instructions 9. Roof frame assembly Screw DB-M4*35 90º Bracket Straight Bracket 90º Bracket Straight Bracket 1. Place the 90º Bracket on the Roof Hip Rafters and screw together using screw DB-M4*35. 2. Place the Straight Bracket on the Centre Roof Rafter(s) and screw together using screw DB-M4*35.
  • Page 14 Fraser Gazebo - Assembly Instructions 10. Roof frame assembly IMPORTANT: Please ensure the gazebo walls are square before you hang the roof tiles 2. Locate the row of screw holes, keep these at 90º with the top of the roof when installing...
  • Page 15 Fraser Gazebo - Assembly Instructions 11. Roof frame assembly Bracket Sky light Inside of Sky light frame Roof Hip tile Screw DB-M4*35 Washer 1. Place the Skylight frame inside the aperture at the top of the roof and screw together using screw DB-M4*35 and washers 2.
  • Page 16 Fraser Gazebo - Assembly Instructions 11. Bar Stool(s)* assembly Item No. Name: Quantity: Leg brace (short) 16 pcs Leg brace (long) 16 pcs Stool legs 16 pcs Align the leg brace to the stool leg Align the leg brace to the stool leg...
  • Page 17 E-Post (post@canadianspacompany.no) Canadian Spa Company meets ISO 9001 Standards When you purchase a hot tub from Canadian Spa Company, the ISO 9001 certification assures world class excellence in manufacturing and customer service. 20/05/15 w w w . c a n a d i a n s p a c o m p a n y . c o m...
