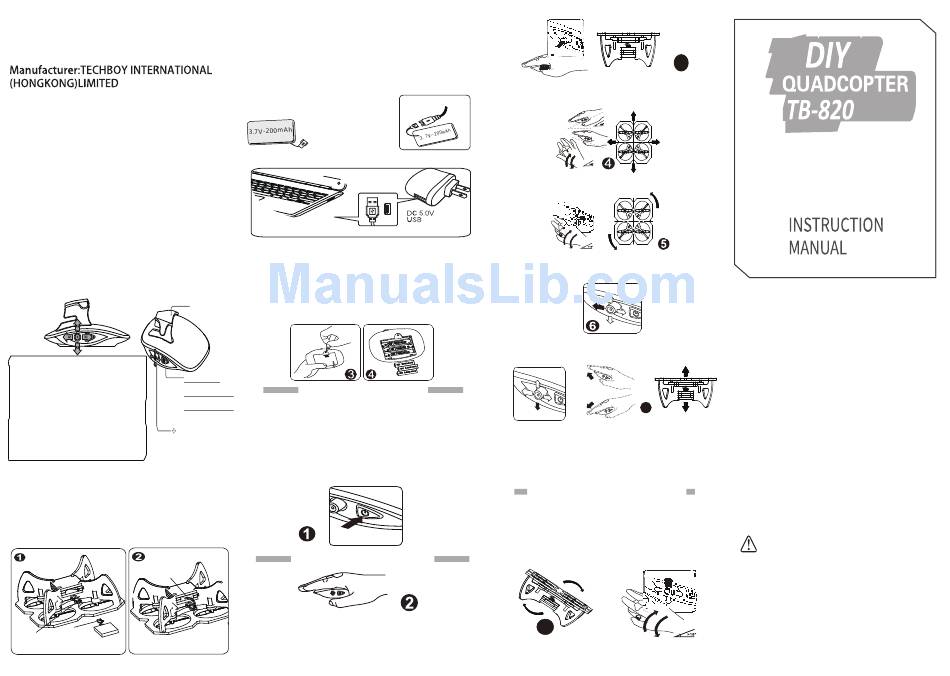

Techboy TB-820 Instruction Manual

Motion controlled flying objects
Model:TB-820
Ages:8+
Product Information
Length:120mm,width:120mm,height:45mm.
Battery Information
Product:1x3.7V-200mAh battery,inst-alled inside of produ-
ct,it is replaceable.
Controller:3xAAA battery required.1.5V,it is replaceable,not
included.
Parameter Information
Charging time:about 30 minutes.Working time:about 5-8
minutes.Control distance:20m.
Product List
TB-820 Quadcopter 1Pcs,Controller 1 Pcs,Instruction Manual
1 Pcs,Finger holder 2 Pcs.USB cable 1 Pcs.
Repair And Maintenance
Please keep it far away from direct sunlight or heat.The Q-
uadcopter & controler contain electrical parts.Please keep it
far way from water or wet environment.Please use dry clean
cloth to clean product if it is getdirty.Do not wash it.
K Auto take off/landing (please
refer operation details)
Power switch:
K1 Speed adjustment (please re
Short press to turn
fer operation details) off Quadcopter
Long press to turn
K2 Stunt (please refer operation
off controller
details)
K3 Turning (please refer operation
Five directions switch
details)
K4 Height adjustment (please refer
operation details)
Controller Introduction
1.Connect battery wire to PCB wire cable (referpicture1.)Put
battery into box.(refer picture 2)
2.Refer above instruction to take out battery
Install or take battery out.
INSTRUCTION MANUAL
Battery compartments
Battery
The battery cable
Circuit board cable
How to charge
Take battery out from box.Disassemble battery from PCB
wire cable(refer picture 3).Connect battery cable to USB co-
nnector (refer picture 4).insert the USB port of the USB ch-
arging wire to the USB port of thecomputer(or the USB port
of the power adapter)to charge the battery.USB cable red li-
ght turn on it indicate it is charging.When USB cable red lig-
ht turn off.It indicates fully charged.Disassemble USB cable
and battery.Install battery into box.
Battery
Controller installing the battery
1.Use screwdriver or other objects,press the battery cover b-
utton.andtake off battery cover at same time.(refer picture 3).
2.Install 3 x AAA batteries according battery polarity.(refer p-
icture 4)
3.re-install battery cover.it install well when you hear "DA"
Finger Holder
sound.
4.Remove batteries according above steps.
FLIGHT PREPARATION
1.Connect the battery to copter correctly , put the copter on
the flat groud(The copter's battery in front of you) the light
flashing from high speed to low speed.
2.Install batteries into controller correctly.
3.Press ON/OFF transparent button of controller.(refer pict-
ure 1)DroneLED turn to keep lighting,indicate code match s-
uccessfully,Repressbutton if failed.
4.Please replace new batteries if controller LED do not light.
OPERATION & CONTROL
Please hold controller horizontally.(refer
picture 2)
1.Press K, the copter take off automatically,and keep in
a certain height hovering.(refer picture 3)
2.Lean forward/backwsard/left/right slowly (with angle over 15)
controller.To control copter fly forward/backward/left/right (ref-
USB
er picture 4)
3.press to K3 direction,move hand to left or right, the copter tu-
rn left orright.(refer picture 5)
4.press to K1 direction, adjust speed press once to medium spe-
ed.Presscnce again to high speed.Press third time to low speed
(copter keep inlow speed at very beginning)(refer picture 6)
5.Fly higher/lower,press K4 and at same time move your wrist
up anddown slowly,the copter fly higher or lower altitude,r-
elease K4,copter keep in current altitude,hovering.(refer pict-
ure7)
6.Landing,press K button,the copter stop flying and begin to
landing slowly.
7.Stop immedicately in case emgerency. Press turn on/off butt-
on againto trun off copter immedicately if any emgerency or
copter could not landing successfully or propellers keep rot-
ating.
3D EVERSION & THROWING
FIGHT INSTRUCTIONS
Stunt feature:
1.Make sure flying height is over 2 meters and copter is in full
chargedstatus when do stunt operation.
2.Press K2, Lean rightward/leftward/forward/backward(with a-
ngle over75)controller. To control copter do leftward/rightward/
forward/backward stunt operation.(refer picture 8)
8
The packaging box and instruction manual contains important
information,please keep it for further reference.
3
NOTE:The flying unit contains a Lithium Polymer Bat-
tery,DO NOT disassembly the flying unit as this may
result in permanent damage or hazardous operation.
DO NOT modify this product in any way.
DO NOT laumch at people or animals.
DO NOT use near overhead cables,vents,fans or any
other obstacles.
☆
Make sure people around you are aware you are
playing.
☆
If the quadcopter gets stuck in high places,ask an
7 adult to retrieve it for you.
DO NOT attempt to retrieve yourself.
☆
Before recharging,when not in use or before stor-
age,always allowyour quadcopter to deplete its
charge (by allowing the propeller to spin freely u-
ntil it stops),and switch OFF when not in use.
☆
Only use the charger provided in this pack to ch-
arge quadcopter and only under adult supervition.
ADULT SUPERVISION IS RECOMMENDED AT ALL TI-
MES!
INFORMATION
IMPORTANT BATTERY
DO NOT mix old and new batteries.
DO NOT mix alkaline.Carbon-zinc or rechargeable (-
nikel-cadium)batteries.
DO NOT try to charge non-rechargeable batteries.
DO NOT dispose of batteries in fire.
DO NOT short circuit the supply terminals.
DO NOT use near water.Ensure that the contact surf-
aces are clean before installing new batteries.Batteries
should always be replaced by adults.Replace batteries
of the same type and brand at the same time.
