ENFORCER EB-P104-01Q Installation Manual

Passive video transceivers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Passive Video Transceivers
EB-P104-01Q
 Transmits up to 1,300ft (400m) color video or up to
1,950ft (600m) B/W video
 Built-in surge protection
 Passive operation – No external power required
 Transmits video over Cat5e/6
 Removable terminal blocks or RJ45 connectors
 Connects to cameras, DVRs, multiplexers, and other devices
Note: Products with model numbers that end with "Q" or that have a round green "Q" sticker are RoHS compliant.
Installation Manual
Model Number
EB-P104-01Q
EB-P116-01Q
EB-P116-01Q
Channels
4
16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EB-P104-01Q and is the answer not in the manual?

Questions and answers

Summary of Contents for ENFORCER EB-P104-01Q

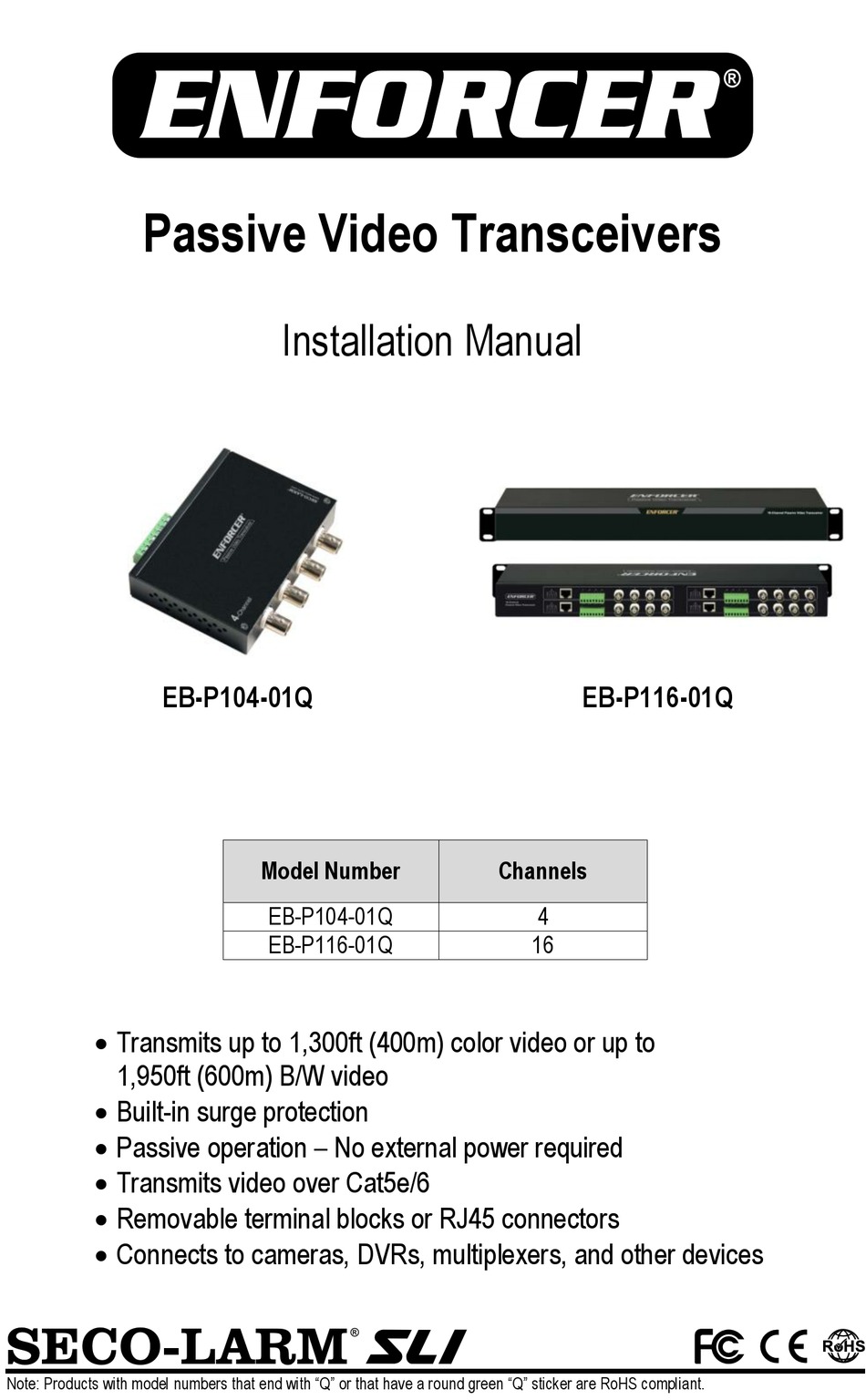

  • Page 1 Passive Video Transceivers Installation Manual EB-P104-01Q EB-P116-01Q Model Number Channels EB-P104-01Q EB-P116-01Q  Transmits up to 1,300ft (400m) color video or up to 1,950ft (600m) B/W video  Built-in surge protection  Passive operation – No external power required  Transmits video over Cat5e/6 ...

  • Page 2: Table Of Contents

    Troubleshooting ........8 Introduction: ENFORCER Passive Video Transceivers allow CCTV cameras to connect to a DVR, video switcher, or multiplexer connect via inexpensive Cat5e/6 unshielded twisted pair (UTP) cable. These transceivers are a great way to cut the cost and complexity of security networks by eliminating the need to run expensive coaxial cable to multiple CCTV cameras.

  • Page 3: Specifications

    ENFORCER Passive Video Transceivers Specifications: Model EB-P104-01Q EB-P116-01Q Number of channels 1,950’ (600m) Range* Color 1,300’ (400m) Video format NTSC, PAL, SECAM Maximum input 1.1Vp-p Insertion loss <2dB per pair from DC~6MHz Return loss >15dB from DC~6MHz Frequency response DC~6MHz Common mode rejection >40dB, 15kHz~6MHz...

  • Page 4: Shelf/Table Mounting

    ENFORCER Passive Video Transceivers Shelf/Table Mounting: 1. Units may be stacked one on top of the other, or with other equipment. Note: Do not stack more than 70-lbs on top of the passive video transceiver. 2. Make sure the rubber feet are firmly...

  • Page 5: Wiring

    (EB-P116-01Q) Connecting to a DVR, Video Switcher, or Multiplexer: 1. Run one coaxial cable (not included) from the Video Out on the EB-P104-01Q or EB-P116-01Q to the corresponding Video In port of the DVR, video switcher, or multiplexer (not included).

  • Page 6: Sample Applications

    (MVD-V105-1Q) Local Display Remote Displays 1. The ENFORCER Bullet Camera is connected to the 16-Channel Passive Video Transceiver (EB-P116-01Q) through a Passive Balun (EB-P101-01Q). 2. The ENFORCER Dome Camera is connected to the 16-Channel Passive Video Transceiver (EB-P116-01Q) through a 4-Channel Passive Video Transceiver (EB-P104-01Q) via the RJ45 port.

  • Page 7: Sample Applications

    Color: Up to 1,300ft (400m) Remote B/W: Up to 1,950ft (600m) DVR, Monitor, Switch, etc. Four ENFORCER Cameras are connected to a remote display device via two 4-Channel Passive Video Transceivers (EB-P104-01Q). Sample Application: Connecting with RJ45 vs. Terminal Block...

  • Page 8: Troubleshooting

    ENFORCER Passive Video Transceivers Troubleshooting:  Check that the monitor is powered up.  Check that the CCTV camera is powered up.  Check that the video cable connecting the camera to the The screen is blank transceiver is connected properly.
