Installation Instructions
Shard Outdoor Sconces 302515D & 302517D
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
Please Note: This fixture is designed to be mounted on a standard wall surface and may not be suitable for all
applications. Sconces are to be mounted 4 feet above ground. If installing in a non-wood frame application, we
recommend consulting a qualified builder or electrician.

To Mount Fixture to Wall

Component Parts
A Fixture Assembly
B Mounting Bracket
C #8 Black Screws (4)
D Rubber Washer (2)
E Green Ground Screw
F Cupped Washer
G Caulking Lip
H Decorative Assembly
I Black Screws (2)
Caution: Be sure power is off at the main breaker box prior to
installation.
1. Carefully unpack the fixture from the carton.
2. Using two machine screws (not provided) fasten the
mount bracket (B) to the electric box.
Note: A new electric box comes with screws. When
replacing an existing fixture, retain screws for use with
the new fixture.

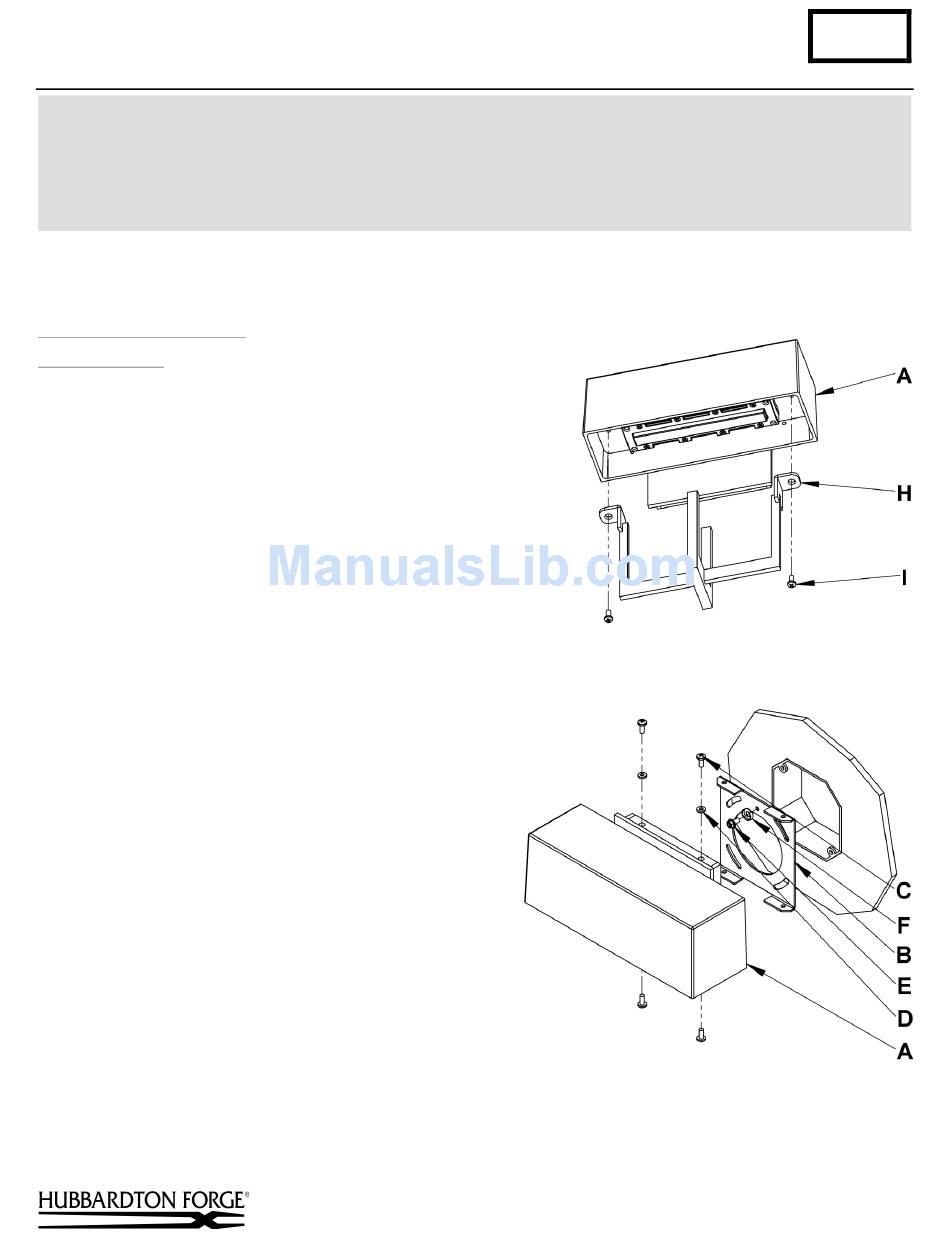

3. Remove decorative assembly (H) by removing
the two black screws (I). (Figure 1)
Note: Decorative assembly is shipped installed.
4. Hold the fixture assembly (A) close to the wall
mount bracket and using suitable wire connectors
(not provided), connect fixture wires to supply
wires (white to white and black to black). Ground
the mounting bracket using the green ground
screw (E) and cupped washer (F), from the
mounting kit, to secure a pigtail lead to the
bracket and connect all ground wires (bare
copper or green to bare copper or green).
Caution: Make sure wire connectors are twisted
on securely, and no bare wires are exposed.
(Figures 1 thru 3)
Modern American Blacksmiths | Fine, Hand-Crafted Lighting
Castleton, Vermont USA |
(Figure 1)
HUBBARDTONFORGE.COM
B352
Page 1 of 3
(Figure 2)
(continued)
