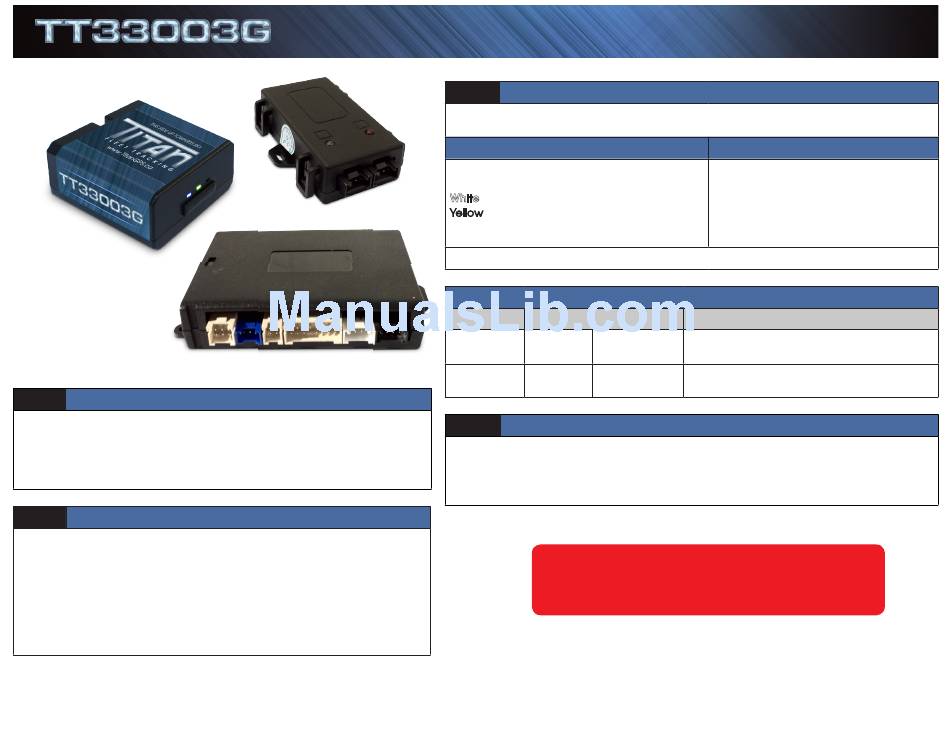

Titan TT33003G Quick Install Manual

STEP 1: TT33003G & TMSIOV2 Preparation
Connect the white 5 pin TT33003G IC3 harness to the IC3 module. Then
connect the 4 pin data cable between either black connector on the IC3
Module and the black connector on the IC4CTS module. Connect the white
6 pin connector and the blue 3 pin connector to the IC4CTS.
STEP 2: TT33003G & TMSIOV2 Installation
Connect the TT33003G to the TMSIOV2 (see the diagram for correct
connections) using the supplied harnesses. Install both the TT33003G and
TMSIOV2 devices in a secure position where they will not be subject to
moisture damage and cannot easily be found (preferably under the dash).
Ensure the TT33003G is installed flat with the correct side pointing skyward
with no metal blocking the unit from the sky.
closer than 18 inches to the vehicle's radio or BCM( Body Control Module).
TMSIOV2
DO NOT install the devices
QUICK INSTALL GUIDE
STEP 3: Primary Wire connections
The supplied harness comes pre assembled to give power to both the TT33003G and the
TMSIOV2 components.
TT33003G
Black: Ground
Red: 12 Volts (Constant)
White: Ignition (MUST be a true ignition source)
Yellow: Aux 1 Input (-)
Green: Starter Kill (-)
GROUND MUST BE CONNECTED DIRECTLY TO THE CHASSIS WITH PAINT REMOVED
LED Color Type LED Action
Blue
Double Blinks
Cellular
Green
GPS Blinking
STEP 4: Call to test
Call Certified Tracking Solutions at 1-780-391-3800 to test the modem to ensure it is
reporting correctly. This MUST be done to ensure proper installation. The hours of operation
are Monday to Friday, 8am to 6pm MST.
Call Certified Tracking Solutions at 1-780-391-3800.
8AM to 6PM Monday to Friday MST
TMSIOV2
Black: Ground
Red: 12 Volts (Constant)
Pink: Ignition (MUST be a true source)
Green: Doorlock (-)
Blue: Door Unlock (-)
Confirm LED Status
Description
Indicates device has connected to the
cellular network
Indicates device has obtained a valid GPS
signal
For Live Tech Support:
www.TitanGPS.ca
