Summary of Contents for Shenzhen CCA Electronic Factory SP-1310BH

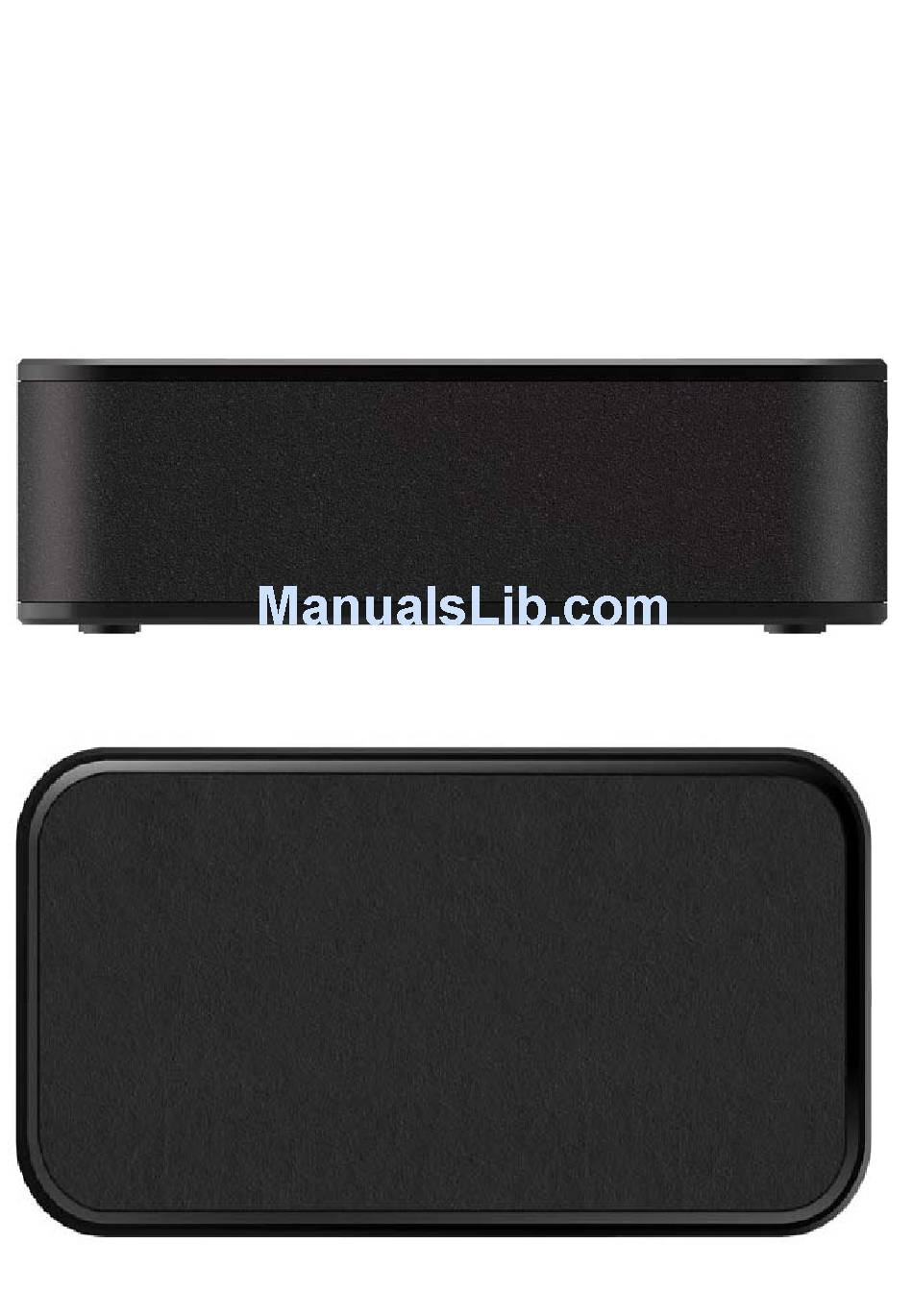

- Page 1 SP-1310BH user manual 一、Goods Detailed list 1.Host 1PCS 2.USB cable 1PCS 3. Audio cable 1PCS 4.A copy of the instruction 二、Schematic diagram of sound box 1.Schematic diagram 2.Schematic diagram of the top...
- Page 2 3.Schematic diagram of the bottom power Status switch indicato 3.5 audio input interface USB charging interface 3.JACK Schematic diagram showing Add the volume keys Play / pause button Reducing the volume keys Bluetooth status indicator, and the charging indicator...
- Page 3 SP-1310BH Bluetooth speaker specifications: 1.Bluetooth: Wireless Bluetooth version 3.0 2402-2480MHz 2. Paired connection: Bluetooth pairing, audio line connection 3.Output power:2.5W*2（1 kHz,10% THD） 4.speaker unit: 4 Ω 2.5W, straight through 36MM tone 5.Frequency response:200Hz-20K Hz 6.Input sensitivity:450mV 7.degree of separation：≥45dB 8.The internal battery: lithium battery 4400mAh 9.Charging input：5V 900mA...
-
Page 4: Troubleshooting
NFC function, please press the play / pause 3 seconds, Bluetooth stereo will enter pairing mode, and then in the mobile phone search and matching can be connected to SP-1310BH. 3、Bluetooth indicator lamp status: Boot: blue indicator slow flash;... - Page 5 Federal Communications Commission (FCC) Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
