PreView WorkSight WWS7020-B Quick Installation Manual

WWS7020-B WorkSight
QUICK INSTALLATION GUIDE
1 Before You Start

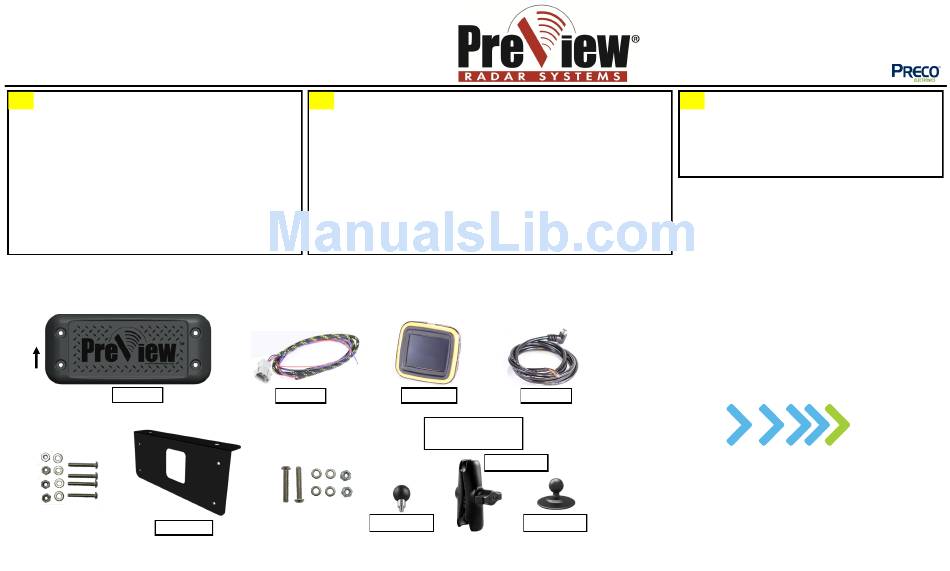

Contents:
WWS7220 Sensor (1)
Sensor Mounting Hardware (1)
WSZ-BK90 Sensor Bracket (1)
A/BK Hardware (1)
WD7102 Display (1)
Display Mounting Assembly: (1) each Mounting Arm, Mounting
Ball, Adhesive Base (Assembly required)
Cables (1)
WWS71PA Cable 6.5'/2.0M (1), WD71PA Cable 6'/1.8M (1)
User Manual and Drill Template
WWS7220
Note orientation:
THIS SIDE UP
Sensor
Hardware
WSZ-BK90
DOC. # 3700275A
®
System
2
Select a location for the sensor approximately 3ft/1M from the ground. Ideally the sensor
should be centered on the rear of the vehicle.
Before the PreView Sensor is permanently installed to the vehicle, verify the selected
location provides a clear detection zone. Temporarily attach the sensor in the proposed
location, apply power to the system, and verify nothing is detected.
The sensor may be mounted directly on the vehicle or attached using the supplied bracket.
Using the drill template, scribe position marks through the holes and drill 1/4" (6mm)
holes centered at the marks. A 1 1/2" diameter clearance hole is required for the sensor
connector and the mating cable. Secure the sensor to the vehicle with the supplied bracket
and hardware. Apply a maximum of 22 in-lbs to secure the sensor.
Not all hardware shown
WWS71PA
WD7102
A/BK Bracket
Hardware
RAM-B-237U
Mount Sensor
Important!
Mounting
WD71PA
Display Mounting
Assembly
RAM-B-201U
RAP-B-378U The quick install guide is only a supplement to the product manuals. Please read all of the
manuals for complete information and instructions before installing the product.
1
10335 W Emerald St 10335 W Emerald St
Phone 1.208.323.1000 Phone 1.208.323.1000
3 Mount Display
Mount the display in a location that is easily viewed by the
driver during vehicle operation. Typical location for the display is
on the dash within reach of the driver, but where it does not
obstruct view of the road or gauges.
Detailed Wiring
Diagram
Contact Technical Support with Questions:
Telephone: 844.787.2327
Web: www.PreViewRadar.com
Email: support@preco.com
