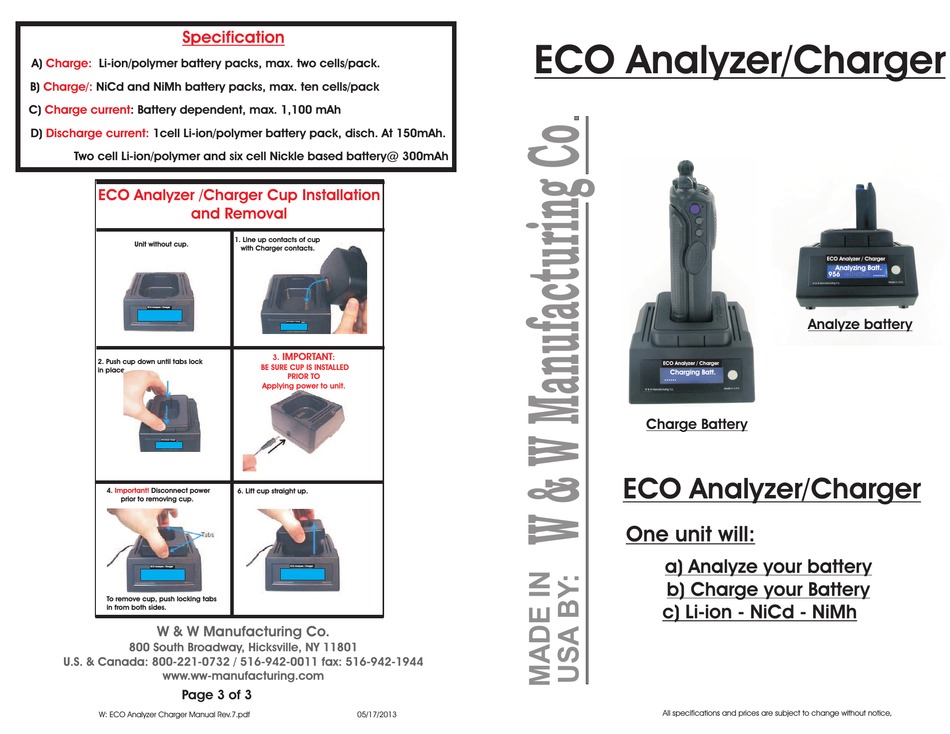

W & W Manufacturing ECO User Manual

Specification
A) Charge: Li-ion/polymer battery packs, max. two cells/pack.
B) Charge/: NiCd and NiMh battery packs, max. ten cells/pack
C) Charge current : Battery dependent, max. 1,100 mAh
D) Discharge current: 1cell Li-ion/polymer battery pack, disch. At 150mAh.
Two cell Li-ion/polymer and six cell Nickle based battery@ 300mAh
ECO Analyzer /Charger Cup Installation
and Removal
Unit without cup.
ECO Analyzer / Charger
2. Push cup down until tabs lock
in place.
ECO Analyzer / Charger
4. Important! Disconnect power
prior to removing cup.
ECO Analyzer / Charger
To remove cup, push locking tabs
in from both sides.
W & W Manufacturing Co.
800 South Broadway, Hicksville, NY 11801
U.S. & Canada: 800-221-0732 / 516-942-0011 fax: 516-942-1944
www.ww-manufacturing.com
Page 3 of 3
W: ECO Analyzer Charger Manual Rev.7.pdf
1. Line up contacts of cup
with Charger contacts.
ECO Analyzer / Charger
IMPORTANT
3. :
BE SURE CUP IS INSTALLED
PRIOR TO
Applying power to unit.
6. Lift cup straight up.
ECO Analyzer / Charger
05/17/2013
ECO Analyzer/Charger
ANALYZER Ia, IIIa & VIa
ECO Analyzer / Charger
Charging Batt.
......
Charge Battery
ECO Analyzer/Charger
One unit will:
a) Analyze your battery
b) Charge your Battery
c) Li-ion - NiCd - NiMh
