Summary of Contents for Lancaster X99M33
- Page 2 MANUAL LAUNDRY TRAY WASTE WATER PUMPS INTRODUCTION LANCASTER models X99M33 & X99M50 pumps are designed for gravity-feed pumping appli- cations. These pumps can be located below the laundry tray/tub/sink and will pump clean or waste water to an overhead or remote drain line. These pumps are manual operation models, no controls are supplied.

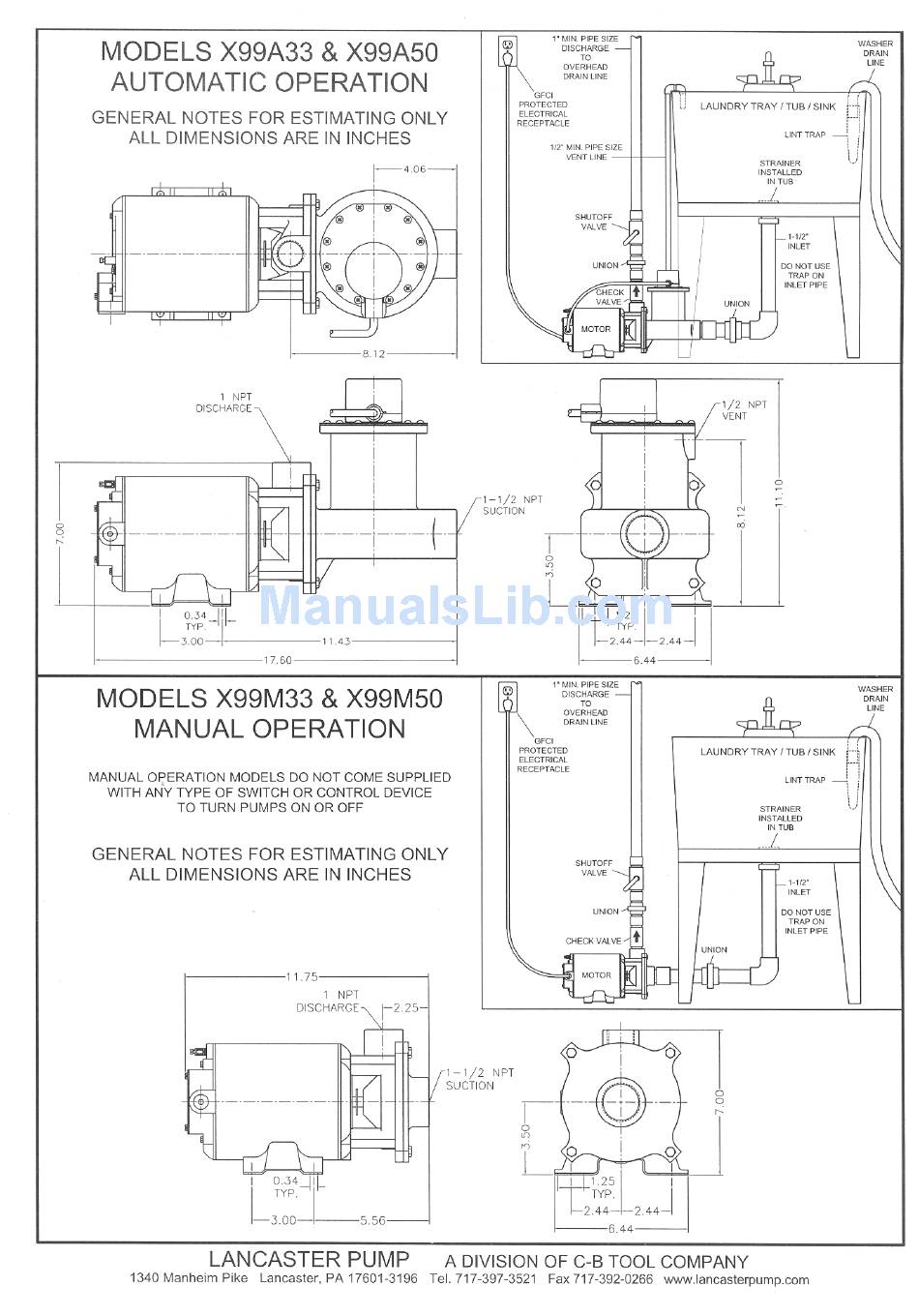

- Page 3 INSTALLATION INSTALLATION INSTALLATION INSTALLATION The diagram shows the various connections which must be made for proper operation. 1. Location. The pump must be installed using a laundry tray/ tub/ sink to drain water into it. The pump must be installed in a level horizontal position, fully supported from the base. It should never be hung on the inlet or discharge line.
-
Page 4: Troubleshooting
5. Electrical Connections. It is strongly recommended that the pump is plugged into a properly grounded electrical receptacle protected by a ground fault circuit interrupter (GFCI) and in accordance with the National Electrical Code and local codes. If the pump is to be controlled by an on and off switch, install at this time. OPERATION The pump does not come supplied with any type of switch or control device to turn pump on or off. - Page 5 G. Return the complete assembly to the factory for repair. H. Replace a portion of the discharge piping with rubber hose. LANCASTER PUMP A DIVISION OF C-B TOOL CO. • www.lancasterpump.com 1340 MANHEIM PIKE • LANCASTER PA 17601-3196 • TEL: 717-397-3521 • FAX: 717-392-0266 E-mail: info@lancasterpump.com...
