Summary of Contents for Toshiba EM245A5C-BS

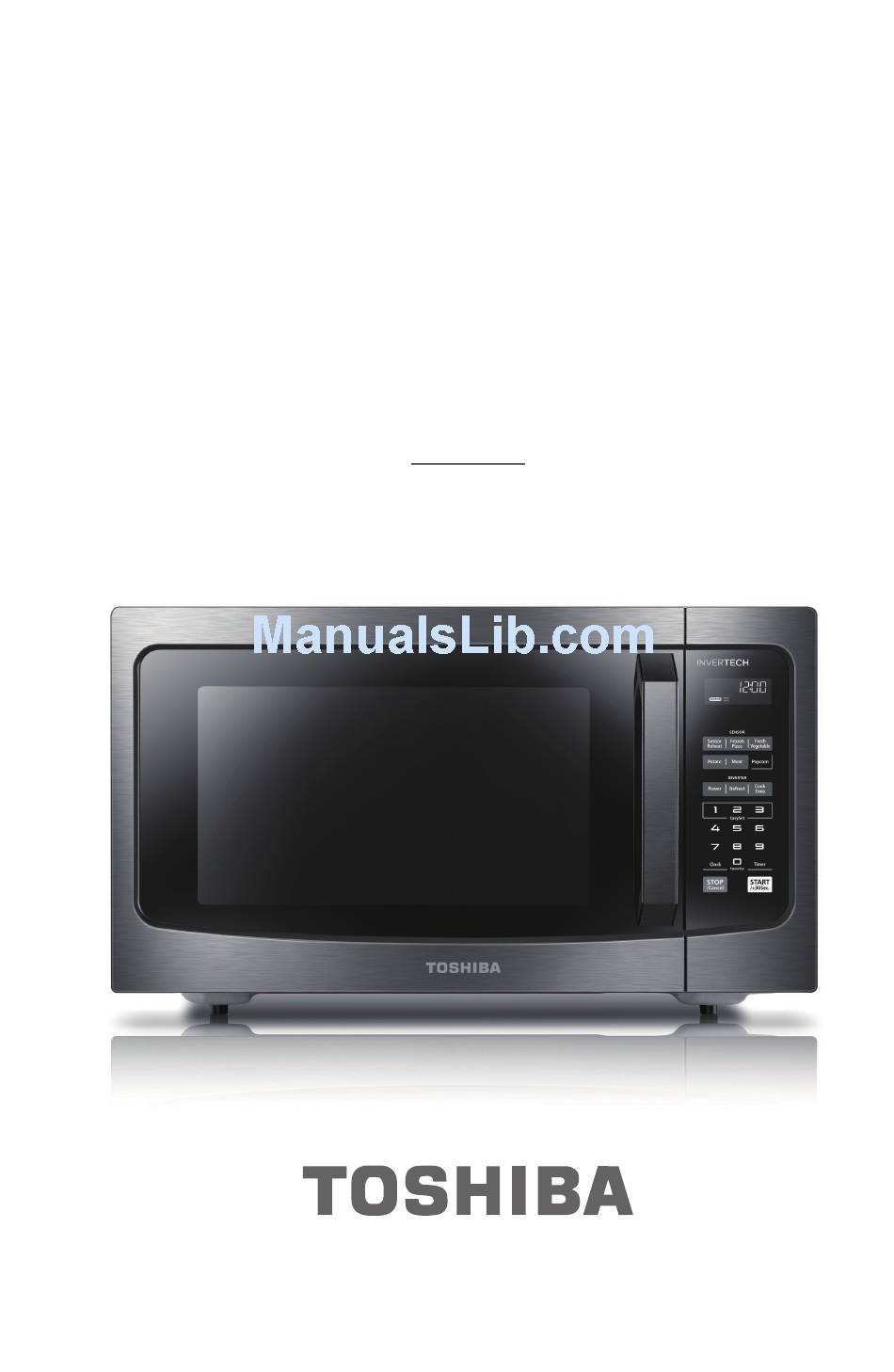

- Page 1 Microwave Solo Oven Instruction EM245A5C-BS...
-
Page 3: Table Of Contents
Welcome to the world of TOSHIBA BEFORE OPERATING THIS PRODUCT, READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS. BE SURE TO SAVE THIS BOOKLIST FOR FUTURE REFERENCE CONTENTS PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY IMPORTANT SAFETY INSTRUCTIONS GROUNDING INSTRUCTIONS... -
Page 4: Precautions To Avoid Possible Exposure To Excessive Microwave Energy
HINGES AND LATCHES (broken or loosened) c. DOOR SEALS AND SEALING SURFACE The oven should not be adjusted or reparied by anyone except properly qualified service personnel. Specifications Model: EM245A5C-BS Rated Voltage: 120V~ 60Hz 1350 W Rated Input Power(Microwave): Rated Output Power(Microwave): 1250W 1.6 cu.ft. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic safety precautions, including the following: Read all instructions before using the appliance. Read and follow the specific: "... - Page 6 IMPORTANT SAFETY INSTRUCTIONS WARNING Use this appliance only for its intended uses as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This oven is specifically designed to heat or cook or dry food. It is not designed for industrial or laboratory use.
- Page 7 IMPORTANT SAFETY INSTRUCTIONS WARNING 20. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.
-
Page 8: Grounding Instructions
GROUNDING INSTRUCTIONS DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. To protect against electrical shock, this appliance is equipped with a cord having a 3 prong grounding-type plug for insertion into a proper grounding-type receptacle. - Page 9 GROUNDING INSTRUCTIONS Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-pronged grounding plug , and a 3-slot receptacle that will accept the plug on the appliance.The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance.
-
Page 10: Radio Interference
GROUNDING INSTRUCTIONS RADIO INTERFERENCE Operation of the microwave oven may cause interference to your radio, TV or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures: Clean door and sealing surface of the oven. Reorient the receiving antenna of radio or television. -
Page 11: Utensils
GROUNDING INSTRUCTIONS UTENSILS CAUTION Electric Shock Hazard Tightly-closed utensils could explode. Closed containers should be opened and plastic pouches should be pierced before cooking. See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven.". -
Page 12: Materials You Can Use In Microwave Oven
MATERIALS YOU CAN USE IN MICROWAVE OVEN UTENSILS REMARKS Shelding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if Aluminum foil foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls. -
Page 13: Materials To Be Avoided In Microwave Oven
MATERIALS TO BE AVOIDED IN MICROWAVE OVEN UTENSILS REMARKS Aluminum tray May cause arcing. Transfer food into microwave-safe dish. Food carton with May cause arcing. Transfer food into microwave-safe dish. metal handle May cause arcing and could cause a fire in the oven. Metal twist ties May cause a fire in the oven. -
Page 14: Setting Up Your Oven
SETTING UP YOUR OVEN NAMES OF OVEN PARTS AND ACCESSORIES Remove the oven and all materials from the ca rton and oven cavi ty. Your oven comes with the following accessories: Glass tra y Turntable ring Instruction Manual Control panel Turntable shaft Turntable ring Glass tray... -
Page 15: Turntable Installation
SETTING UP YOUR OVEN TURNTABLE INSTALLATION Hub (underside) Glass tray Turntable shaft Turntable ring a. Never place the glass tray upside down. The glass tray should never be restricted. b. Both glass tray and turntable ring must always be used during cooking. c. -
Page 16: Countertop Installation
SETTING UP YOUR OVEN COUNTERTOP INSTALLATION Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron. - Page 17 SETTING UP YOUR OVEN INSTALLATION 2. Plug your oven into a standard household outlet. Be sure the voltage and the the frequency is the same as the voltage and the frenquency on the rating label. WARNING Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be avoid.
-
Page 18: Operation
OPERATION CONTROL PANEL AND FEATURES (11) (10) (12) (13) (1) Display Screen Sensor Cook Menu (Sensor Reheat, Frozen Pizza,Fresh Vegetable,Potato and Meat) Popcorn Menu Power Level Defrost Cook Time Number Pads (8) Quick Start Cooking Clock (10) Favorite (11) Timer (12) STOP Cancel Hold 3 sec: Before cooking starts, press to clear all previous settings. -
Page 19: Power Levels
OPERATION 1.POWER LEVELS Ten power levels are available. Prior to or during cooking, press Power and "PL10" will display. Then press number pads to select a different power level. Level Power 100% Display PL10 PL 9 PL 8 PL 7 PL 6 PL 5 PL 4... -
Page 20: Kitchen Timer
OPERATION 3. KITCHEN TIMER Press Timer once, "00:00" will appear in the display. Press the number pads to enter the time amount. The maximum amount of time that can be entered is 99 minutes, 99 seconds. Press to confirm setting, and the timer will start to count down. When the time arrives,the oven will beep 5 times. -
Page 21: Weight Defrost Function
OPERATION NOTE: In the process of setting, if the pad is pressed or if there is no operation within 1 minute, the oven will automatically return to display the clock. 5.ONE TOUCH START Instant cooking at 100% power level and 1 to 3 minutes cooking time can be started by pressing number pads 1 to 3. -
Page 22: Time Defrost
OPERATION 7.TIME DEFROST Press Defrost twice , "TIME" will appear in the display. Press the number pads to input the defrost time. The time arrange is 00:01-99:99. (3) The de fault microwave power is power level 3. Press to start defro cooking. And the remaining defrost time will display. 8. -
Page 23: Sensor Cook Chart
OPERATION 2) During cooking process, following points must be done. a. Keep the door close when the remaining time is not displays or the buzzer does not sound twice. b. When the buzzer sound twice , the time will count down and display the rem ing time, you can open the door to mix the food up ,turn over or replace the food. - Page 24 OPERATION Sensor Reheat Menu 1) In waiting states, and put the food into the microwave oven. Press "SENSOR REHEAT" "S-01" is displayed. " " to start sensor reheat function and no need to set time. 2) Press " 3) The sensor will sound twice when the steaming was be emanated.The surplus time will displays, the buzzer will sound 5 beeps when finishing and the oven will turn back to the waiting states.
-
Page 25: Memory Function
OPERATION 10. MEMORY FUNCTION Press Favorite to program and choose up to three cooking procedures.Each procedure will be indicated by 1, 2 or 3 in the display. Press Favorite until your desired procedure number appears in the display. Press to begin it. A maximum of two cooking stages can be set for each procedure. -
Page 26: Lock Function For Children
OPERATION Press Power again, then press "6" to choose 60% second stage cooking power. Press to immediately start multi-stage cooking. To choose the procedure from the memory list, press Favorite three times. Screen will display "3"; press to run procedure. NOTE: If you do not want to save a particular multi-stage program as a procedure, do not press Favotite as the first step. -
Page 27: Maintenance
MAINTENANCE TROUBLESHOOTING Check your problem by using the chart below and try the solutions for each problem. TROUBLE Possible Cause Possible Remedy Electrical cord for oven is not Plug into the outlet. plugged in. Close the door and try again. Oven will not start Door is open. -
Page 28: One Year Limited Warranty
ONE YEAR LIMITED WARRANTY This product carries a warranty stating that it will be free from defects in material and workmanship for a period of one year from the date of purchase. This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. - Page 32 Customer Assistance: 800-842-1289 Midea America Corp 5 Sylvan Way, Parsippany, NJ 07054 PN.:16170000A58915...
