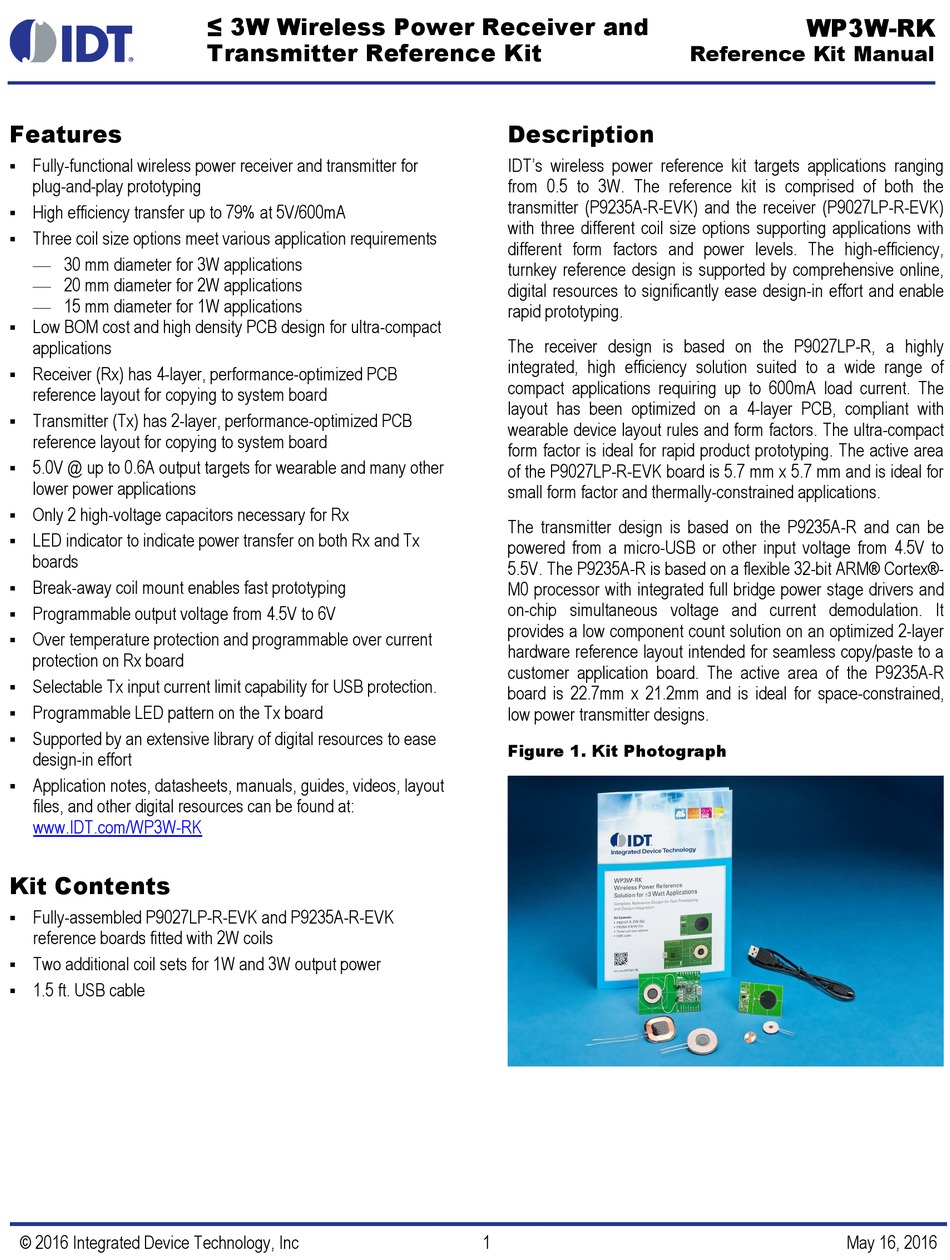

IDT WP3W-RK Manual

? 3w wireless power receiver and transmitter reference kit

Advertisement

Quick Links

Features
Fully-functional wireless power receiver and transmitter for
plug-and-play prototyping
High efficiency transfer up to 79% at 5V/600mA
Three coil size options meet various application requirements
— 30 mm diameter for 3W applications
— 20 mm diameter for 2W applications
— 15 mm diameter for 1W applications
Low BOM cost and high density PCB design for ultra-compact
applications
Receiver (Rx) has 4-layer, performance-optimized PCB
reference layout for copying to system board
Transmitter (Tx) has 2-layer, performance-optimized PCB
reference layout for copying to system board
5.0V @ up to 0.6A output targets for wearable and many other
lower power applications
Only 2 high-voltage capacitors necessary for Rx
LED indicator to indicate power transfer on both Rx and Tx
boards
Break-away coil mount enables fast prototyping
Programmable output voltage from 4.5V to 6V
Over temperature protection and programmable over current
protection on Rx board
Selectable Tx input current limit capability for USB protection.
Programmable LED pattern on the Tx board
Supported by an extensive library of digital resources to ease
design-in effort
Application notes, datasheets, manuals, guides, videos, layout
files, and other digital resources can be found at:
www.IDT.com/WP3W-RK

Kit Contents

Fully-assembled P9027LP-R-EVK and P9235A-R-EVK
reference boards fitted with 2W coils
Two additional coil sets for 1W and 3W output power
1.5 ft. USB cable
© 2016 Integrated Device Technology, Inc
≤ 3W Wireless Power Receiver and
Transmitter Reference Kit
Description
IDT's wireless power reference kit targets applications ranging
from 0.5 to 3W. The reference kit is comprised of both the
transmitter (P9235A-R-EVK) and the receiver (P9027LP-R-EVK)
with three different coil size options supporting applications with
different form factors and power levels. The high-efficiency,
turnkey reference design is supported by comprehensive online,
digital resources to significantly ease design-in effort and enable
rapid prototyping.
The receiver design is based on the P9027LP-R, a highly
integrated, high efficiency solution suited to a wide range of
compact applications requiring up to 600mA load current. The
layout has been optimized on a 4-layer PCB, compliant with
wearable device layout rules and form factors. The ultra-compact
form factor is ideal for rapid product prototyping. The active area
of the P9027LP-R-EVK board is 5.7 mm x 5.7 mm and is ideal for
small form factor and thermally-constrained applications.
The transmitter design is based on the P9235A-R and can be
powered from a micro-USB or other input voltage from 4.5V to
5.5V. The P9235A-R is based on a flexible 32-bit ARM® Cortex®-
M0 processor with integrated full bridge power stage drivers and
on-chip simultaneous voltage and current demodulation. It
provides a low component count solution on an optimized 2-layer
hardware reference layout intended for seamless copy/paste to a
customer application board. The active area of the P9235A-R
board is 22.7mm x 21.2mm and is ideal for space-constrained,
low power transmitter designs.
Figure 1. Kit Photograph
1
WP3W-RK
Reference Kit Manual
May 16, 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WP3W-RK and is the answer not in the manual?

Questions and answers

Summary of Contents for IDT WP3W-RK

  • Page 1: Kit Contents

    Reference Kit Manual Features Description Fully-functional wireless power receiver and transmitter for IDT’s wireless power reference kit targets applications ranging  plug-and-play prototyping from 0.5 to 3W. The reference kit is comprised of both the transmitter (P9235A-R-EVK) and the receiver (P9027LP-R-EVK) High efficiency transfer up to 79% at 5V/600mA ...
  • Page 2: Hardware Overview

    WP3W-RK Reference Kit Manual Hardware Overview Figure 2. P9027LP-R-EVK Reference Board Illustration Top Layer Figure 3. P9235A-R-EVK Reference Board Illustration Top Layer © 2016 Integrated Device Technology, Inc May 16, 2016...
  • Page 3 WP3W-RK Reference Kit Manual Figure 4. Tx and Rx Coil Pairs for 1W, 2W and 3W Applications © 2016 Integrated Device Technology, Inc May 16, 2016...
  • Page 4: Usage Guide

    In most cases, these boards can be imported into an existing customer system for evaluation and prototyping. The WP3W-RK evaluation kit is based on the WPC Qi standard protocol but targets ‘paired’ transmitter-receiver solutions –...
  • Page 5: Performance Characteristics

    WP3W-RK Reference Kit Manual Coil Spacer (Upside-down Coil) A good wireless power transfer system should maintain a small separation gap between the transmitter coil and the receiver coil. For the reference board, the receiver coil has been mounted upside-down on the P9027LP-R-EVK board. The PCB area under the Rx coil is used as a spacer (0.5mm) to simulate the thickness of a wearable device case, and there is no copper conductor.
  • Page 6 WP3W-RK Reference Kit Manual Figure 6. Load Regulation for 30mm Coil Vin=5V, Vout=5V, Iout=600mA, Tx=P9235A-R, Tx coil=760308101103, Spacer=1.5mm, Rx coil=760308102213, Rx=P9027LP-R, No air flow, Room temperature -0.1 -0.2 -0.3 -0.4 -0.5 Iout (mA) Figure 7. Typical Efficiency Curve for 20mm Coil Vin=5V, Vout=5V, Iout=400mA, Tx=P9235A-R, Tx coil=760308101104, Spacer=1.5mm,...
  • Page 7 WP3W-RK Reference Kit Manual Figure 8. Load Regulation for 20mm Coil Vin=5V, Vout=5V, Iout=400mA, Tx=P9235A-R, Tx coil=760308101104, Spacer=1.5mm, Rx coil=760308101220, Rx=P9027LP-R, No air flow, Room temperature -0.1 -0.2 -0.3 -0.4 -0.5 Iout (mA) Figure 9. 5V/400mA Thermal Images Using 20mm Coil P9235A-R: 39.2 Degree C...
  • Page 8 WP3W-RK Reference Kit Manual Figure 10. 0 to 400mA Step Load Response (Ch1=Vrect, Ch2=VSNS, Ch3=Vout, Ch4=Iout) Figure 11. No Load Start-up by Tx Input Power (Ch1=Vrect, Ch2=VIN, Ch3=Vout,Ch4=Iout) © 2016 Integrated Device Technology, Inc May 16, 2016...
  • Page 9 WP3W-RK Reference Kit Manual Figure 12. 600mA Full Load Start-up by Tx Input Power (Ch1=Vrect, Ch2=VIN, Ch3=Vout,Ch4=Iout) Figure 13. No Load Start-up by Rx Enable Signal (Ch2=EN, Ch3=Vout, Ch4=Iout) © 2016 Integrated Device Technology, Inc May 16, 2016...
  • Page 10 WP3W-RK Reference Kit Manual Figure 14. 600mA Full Load Start-up by Rx Enable Signal (Ch2=EN, Ch3=Vout, Ch4=Iout) Figure 15. Rx Over Temperature Protection (Ch1=Vrect, Ch2=Vin, Ch3=Vout, Ch4=INT) © 2016 Integrated Device Technology, Inc May 16, 2016...
  • Page 11 WP3W-RK Reference Kit Manual Figure 16. Rx Over Current Protection (Ch1=Vrect, Ch2=Iout, Ch3=Vout, Ch4=INT) © 2016 Integrated Device Technology, Inc May 16, 2016...
  • Page 12 WP3W-RK Reference Kit Manual P9027LP-R-EVK Schematic Figure 17. P9027-R-EVK Board Schematic © 2016 Integrated Device Technology, Inc May 16, 2016...
  • Page 13 WP3W-RK Reference Kit Manual P9027LP-R-EVK Component Map and Bill-of-Materials (BOM) Figure 18. P9027LP-R-EVK Component Map © 2016 Integrated Device Technology, Inc May 16, 2016...
  • Page 14 WP3W-RK Reference Kit Manual Table 1: P9027LP-R-EVK Bill-of-Materials Item Qty. Reference Description PCB Footprint MFG Part Number C1, C2,C6,C7 CAP 10uF/10V CL05A106MP5NUNC *C5, *C8 RES 0.0 OHM ERJ-2GE0R00X CAP 1UF/25V C1005X5R1E105M050BC CAP 0.047UF/25V C1005X7R1E473M050BC CAP 1800PF/50V GRM155R71H182KA01D *R1,*R2 RES 5.11k...
  • Page 15 WP3W-RK Reference Kit Manual Table 2: Rx Coil Specification and Part Numbers Output Power Vendor Part Number Inductance Dimension WR121220-27M8-ID 8.32 uH 0.98 Ω Ø12 mm SunLord SWA12R12H08C01B 8.50 uH 0.38 Ω Ø12 mm WR202010-18M8-ID3 11.0 µH 0.40 Ω Ø20 mm...
  • Page 16 WP3W-RK Reference Kit Manual P9027LP-R-EVK Layout Figure 19. P9027LP-R-EVK Layout (Top Layer) Figure 20. P9027LP-R-EVK Layout (Inner Layer 1) © 2016 Integrated Device Technology, Inc May 16, 2016...
  • Page 17 WP3W-RK Reference Kit Manual Figure 21. P9027LP-R-EVK Layout (Inner Layer 2) Figure 22. P9027LP-R-EVK Layout (Bottom Layer) © 2016 Integrated Device Technology, Inc May 16, 2016...
  • Page 18 WP3W-RK Reference Kit Manual P9235A-R-EVK Schematic Figure 23. P9235A-R-EVK Board Schematic © 2016 Integrated Device Technology, Inc May 16, 2016...
  • Page 19 WP3W-RK Reference Kit Manual P9235A-R-EVK Component Map and Bill-of-Materials (BOM) Figure 24. P9235A-R-EVK Component Map © 2016 Integrated Device Technology, Inc May 16, 2016...
  • Page 20 WP3W-RK Reference Kit Manual Table 3: P9235A-R-EVK BOM Item Reference Description PCB Footprint MFG Part Number C1,C24,C33 22nF/50V 0402 C0402C223K5RACTU 1uF/10V 0402 C0402C105M8PACTU C3,C4 220pF/50V 0402 CL05B221KB5NNNC 5.6nF/50V 0402 CL05B562KB5NNNC 6.8nF/50V 0402 CL05B682JB5NNNC C9,C12,C13,C18,C31 0.1uF/25V 0402 TMK105BJ104KV-F 10uF/10V 0402 CL05A106MP5NUNC...
  • Page 21 RC0402JR-07680RL R28,R29,R30,R31 0402 ERJ-2GEJ473X Wireless Power Tx IC QFN_40ld_5x5m P9235A-R *Components are optional depending on application. A standard bill-of-materials (BOM) spreadsheet can be found at www.IDT.com/WP3W-RK. Table 4: Tx Coil Specification and Part Numbers Output Vendor Part number Inductance Dimension...
  • Page 22 WP3W-RK Reference Kit Manual P9235A-R-EVK Layout Figure 25. P9235A-R-EVK Layout (Top Layer) © 2016 Integrated Device Technology, Inc May 16, 2016...
  • Page 23 WP3W-RK Reference Kit Manual Figure 26. P9235A-R-EVK Layout (Bottom Layer) © 2016 Integrated Device Technology, Inc May 16, 2016...
  • Page 24: Ordering Information

    Anyone using an IDT product in such a manner does so at their own risk, a bsent an express, written agreement by IDT. Integrated Device Technology, IDT and the IDT logo are trademarks or registered trademarks of IDT and its subsidiaries in the United States and other countries. Other trademarks used herein are the property of IDT or their respective third party owners.
