Summary of Contents for Allnet ALL0488V4
- Page 1 ALL0488V4 PoE-Injector Manual...
-
Page 2: Product Description

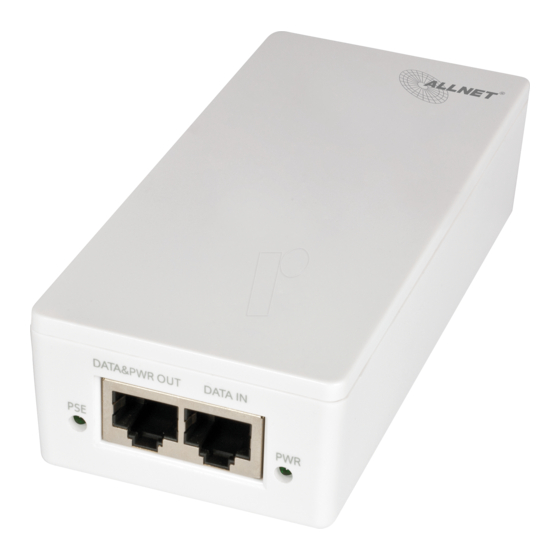

1. Overview 1.1 Product Description The ALL0488V4 is fully compliant with IEEE802.3at standard. It delivers up to 30W output power. By using this device, both data and electrical power can be simultaneously delivered through a single CAT.5 (or better) ethernet cable. - Page 3 1.5 Device A B C D A PSE LED glow green, if the ALL0488V4 delivers PoE B DATA & PWR OUT connect this port to a PoE‐Device C DATA IN connect this port to your network D PWR LED glow green, if the ALL0488V4 works normally...
-
Page 4: Installation
2. Installation Plug the device to an outlet using the included power cord. Connect the "DATA IN"‐Port of the ALL0488V4 to your network. Connect the PoE‐Device to the "DATA&PWR OUT"‐Port. - Page 5 3. Application Switch ‐ ALL0488V4 ‐ PoE Splitter (ALL0487V2) Switch ‐ ALL0488V4 ‐ PoE Access Point (ALL0265P) Switch ‐ ALL0488V4 ‐ PoE telephone/ camera...
- Page 6 Appendix Specifications Standards IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3at Output Voltage Output Power Input Voltage 100‐240V AC Ports 2* RJ‐45 10/100/1000 Mbits Cable Cat.5 or better 1* Power LED 1* PSE LED Temperature 0°C ‐ 40°C (Operating) Temperature (Storage) ‐40°C ‐ 70°C Humidity (Operating) 0% ‐...
