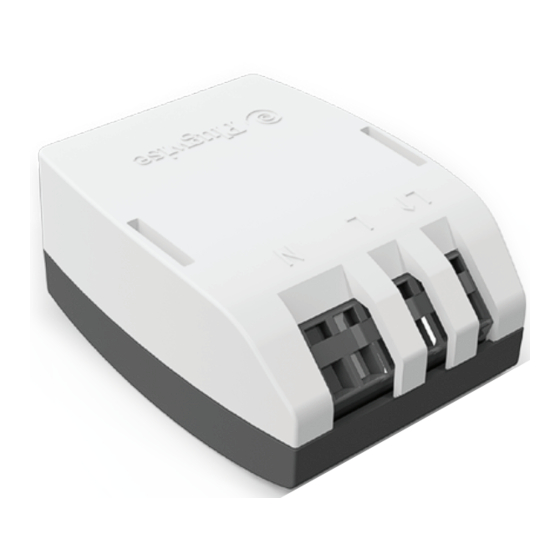

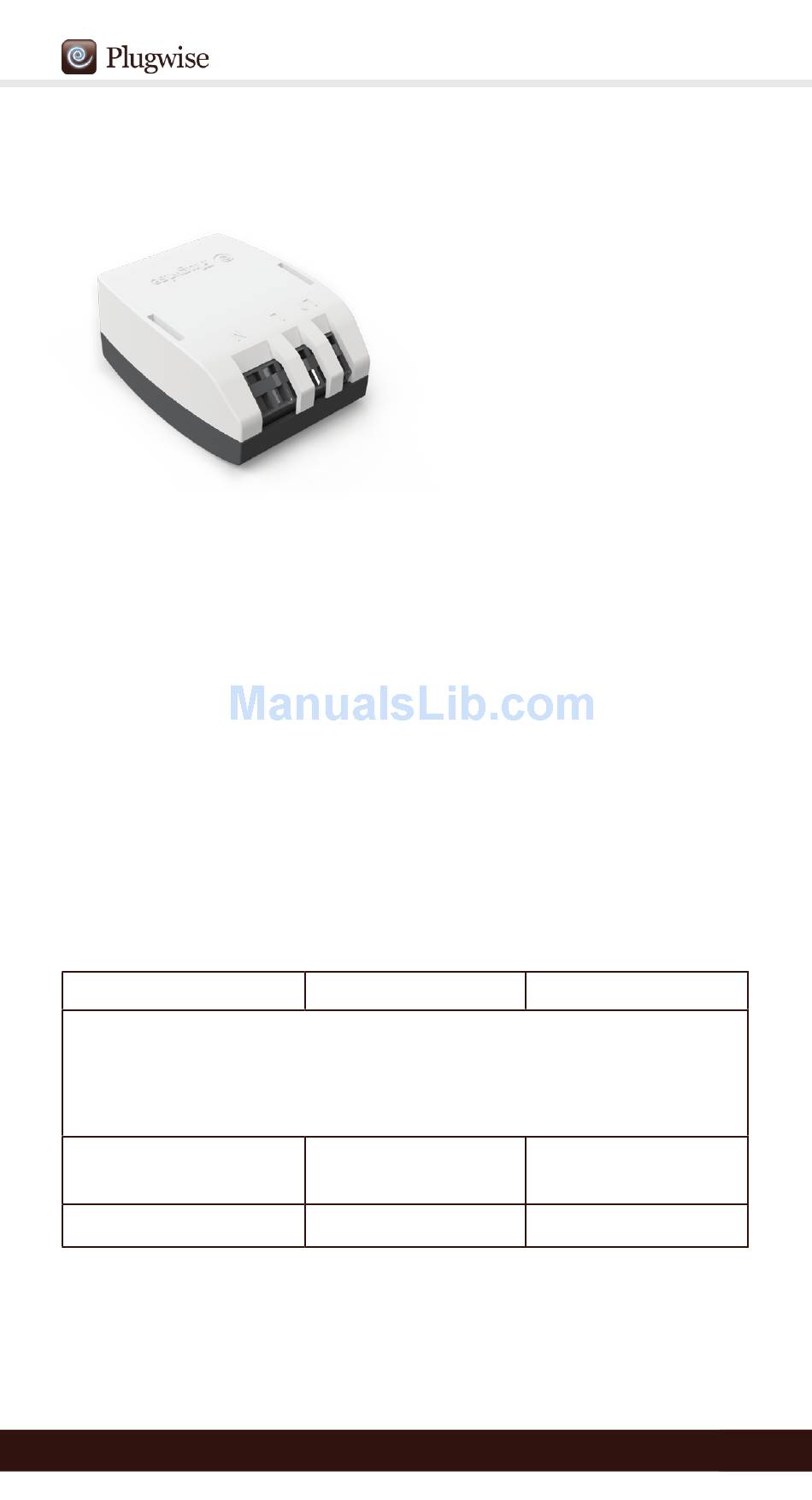

Stealth installation guide
Also applicable to: Stealth+, Stealth M, Stealth M+
Information for the installer
It is required to include an overcurrent protective device (circuit breaker),
that support a maximum rating of 16A (depending on your localisation). Be
sure to switch off the circuit before installing the Stealth!
The product should be installed in a closed flame retardant casing with a
proper strain-relief mechanism.
Use the L↑ labelled clamp to connect the phase wire to the appliance and
connect the neutral wire to one of the 'N' labelled clamps. Then connect
the incoming phase wire to the clamp labelled 'L' and the neutral wire to
the free 'N' connection.
For double phase 230V networks the second phase can be connected to the 'N' poles
(it will not be switched).
Technical details
Voltage: 100-240 V~
If a normal Stealth with relay is used, these additional maximum ratings apply:
•
Inductive load: 4A
•
Capacitive load: 1A
Exceeding these ratings will adversely affect the service life of the relay!
Dimensions:
57.1 x 39 x 21 mm
E: helpdesk@plugwise.com
* Total max. current Stealth M and M+ : 20A.
See www.plugwise.com for detailed information.
Frequency: 50 / 60 Hz
ZigBee Dynamic MESH
2.4 GHz
T: +31(0) 252 43 30 70
All specifications without prejudice.
Be aware:
The Stealth is specifically designed
to be built in to an appliance/lighting
fixture or as a permanently connected
device in the electrical installation of
a building. Installation should always
be executed by a registered installer
in compliance with the local electrical
code (e.g. BS 7671 or NEC).
Total max. current: 16 A*
W: www.plugwise.com
Stealth installation
Be wise, plug in.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Plugwise Stealth
Summary of Contents for Plugwise Stealth
-
Page 1: Technical Details
(it will not be switched). Technical details Voltage: 100-240 V~ Frequency: 50 / 60 Hz Total max. current: 16 A* If a normal Stealth with relay is used, these additional maximum ratings apply: • Inductive load: 4A • Capacitive load: 1A... - Page 2 Stealth installation Stealth installation guide 1. Insert screwdriver and move in the direction of the arrow (up) 2. Insert wire Appliance/ circuit Be aware: Connect the L↑ (black line) to the appliance to be measured (in this example the inverter of the solar panel).
- Page 3 Password: The Stretch ID (see sticker) In case of energy production (solar panel): You will notice below the image of the Stealth in the green field (and the MAC adress) a negative sign (-) in front of the solar production if the installation has been executed correctly (and if the solar panels are producing energy).
