3.

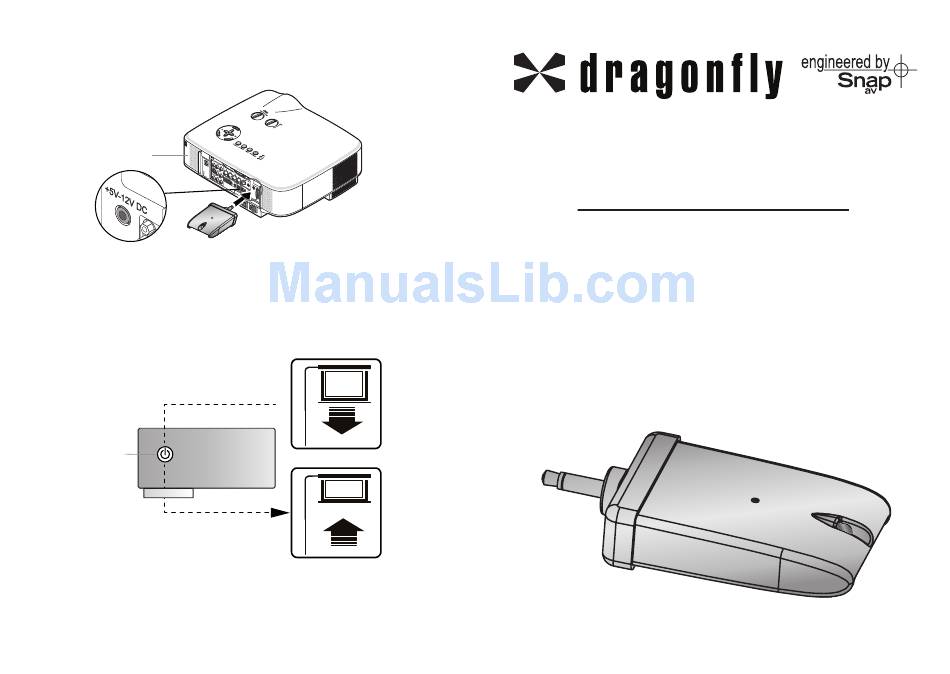

Insert plug of wireless trigger into +5V - 12V DC
hole of device (typically a projector or receiver).
Projector
4.
Screen should open (lower) automatically
when device is turned ON and close (raise)
automatically when device is turned OFF.
Projector power
on-off button
2-Year Limited Warranty
This Dragonfly Accessory has a 2-Year Limited Warranty. This warranty includes parts and labor
repairs on all components found to be defective in material or workmanship under normal condi-
tions of use. This warranty shall not apply to products which have been abused, modified or disas-
sembled. Products to be repaired under this warranty must be returned to SnapAV or a designated
service center with prior notification and an assigned return authorization number (RA).
For Technical Support: 1.866.838.5052
Lower
Off
Raise
DFM-RF-TRIG-12V
12V RF Wireless Trigger
The DFM-RF-TRIG-12V sends UP/DOWN
commands to the Dragonfly™ Filmscreen
from the 12V output of a component.
Advertisement
Summary of Contents for Dragonfly DFM-RF-TRIG-12V
- Page 1 Raise 2-Year Limited Warranty This Dragonfly Accessory has a 2-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal condi- tions of use. This warranty shall not apply to products which have been abused, modified or disas- sembled.
- Page 2 Installation RF to IR Receiver Take 3V Battery (CR2430) positive side up and insert in to battery slot. Programming Button (Positive side UP) Wireless 12V Insert wireless RF/IR receiver into external Trigger IR input of screen. b. Insert a small pin into the programming Indicator Light button hole insert.
