Operating Instructions

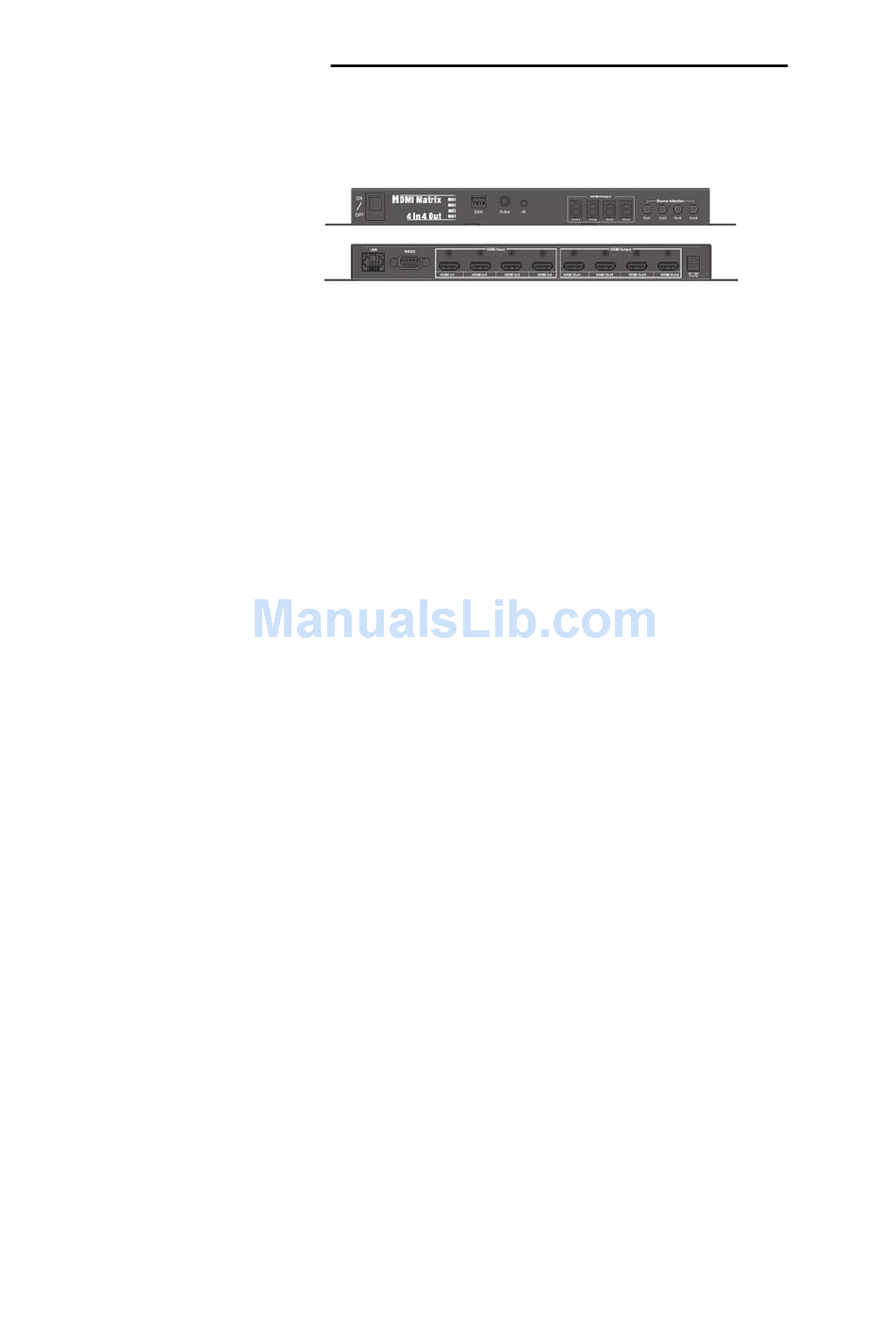

Thanks for purchasing our product.
Please be sure to read this instruction manual
carefully before using our product.
Model：HKTM0404MH4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HKTM0404MH4 and is the answer not in the manual?

Questions and answers

Related Manuals for Hank HKTM0404MH4

Summary of Contents for Hank HKTM0404MH4

  • Page 1 Operating Instructions Thanks for purchasing our product. Please be sure to read this instruction manual carefully before using our product. Model：HKTM0404MH4...
  • Page 2 Notice: HANK Inc. reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. Warning To reduce the risk of fire, electric shock or product damage: 1. Do not expose this apparatus 6. Clean this apparatus to rain, moisture, dripping or only with dry cloth.

  • Page 3: Table Of Contents

    Contents ■ Product Overview ..................1 ■ Features ....................... 1 ■ Package Contents ..................2 ■ Specifications ....................2 ■ Panel Descriptions ..................3 ■ Connections and Operations ................ 4 ■ EDID Management ..................13 ■ Troubleshooting and Maintenance .............. 13 ■...

  • Page 4: Product Overview

    Product Overview ■ HKTM0404MH4 is a matrix with 4K x 2K@30Hz - 4 input and 4 output, which has 4 HDMI Input, 4 HDMI Output. It can be switched between the input and output channels whether HDMI Input source is encrypted or not. It supports Local IR Extension, IP control,RS232 control,EDID Management.

  • Page 5: Package Contents

    Package Contents ■ ① Main unit:HKTM0404MH4 ② Operating instructions ③ 1x 12V/5A power supply ④ 1x AC Power Cord ⑤ 1x IR Receiver (38KHz for IR local control) ⑥ 1x IR Remote(with Button Cell) ⑦ 1X USB to UART Cable Specifications ■...

  • Page 6: Panel Descriptions

    Panel Descriptions ■ TOP Panel Front Panel ①:EDID Management ②: Local IR Extension Port ③: Local IR Control ④: LED Digital Display ⑤: Source Selection...

  • Page 7: Connections And Operations

    Back Panel ①: LAN Port ②: RS232 Port ③: HDMI Input ④: HDMI Output ⑤: Power Input Port (DC12V/5A) Connections and Operations ■ 1. Connection diagram:...
  • Page 8 HDMI cable. ②.Connect the Matrix’s HDMI Output to display device (eg.TV set) with HDMI cable. ③.Turn on DVD, TV set and HKTM0404MH4 matrix. ④.Switch and select the Input source by button or IR remote, or by RS232 control, IP control.
  • Page 9 3).Local IR control: Access to the IR Ext port with IR receiver (IR RX), and Matrix is operated by IR remote. 4).IP Control: ①. Install ②. Connect the computer to the matrix’s LAN interface with Cat5e/6 cable, then power the matrix on. ③.
  • Page 10 ④. HDCP should be opened if matrix connects directly to the computer. Click HDCP Server. Start / End IP address: fill in the distributed IP in HDCP. Server IP address: current IP address. Note that the computer IP can not be obtained automatically if connect directly to matrix.
  • Page 11 Press Start button to start HDCP ⑤. Restart the matrix power supply. And below IP address of matrix will be shown. ⑥. If the matrix is connected by router repeater device, such as router, which open the HDCP, please ignore Step 3 and Step 4. ⑦.
  • Page 12 ⑧. It will be shown in the list if the device has been founded. ⑨. After device selected, pressing the Web Browser button to start build-in browser. Or select the Use External Browser button to open from external browser. ⑩. Enter username and password, the default are both admin. ⑪.
  • Page 13 EDID: EDID settings...
  • Page 14 Basic Setting: Network settings Security: Change Username/Password settings...
  • Page 15 5).RS232 Control: Operate matrix by RS232 Port, and switch to Com Port Terminal. After serial parameter set, click Open Port. RS232 instruction (help：inquiry all instructions description): ①. Enter Username and Password（Usemame：admin） （Passwoyd：admin） ②. Channel switching instruction: swo-x-y-end, x stands for output, starting from 0.

  • Page 16: Edid Management

    EDID Management ■ EDID Information: switch4 switch3 switch2 switch1 EDID Information reserve 1080p/60hz 24bit 2d 2.1ch 1080p/60hz 24bit 2d 7.1ch 1080p/60hz 36bit 2d 7.1ch 1080p/60hz 36bit 2d 2.1ch 4K*2K 1080p/30hz 1080i/60hz 720p/60hz 24bit 2d 2.1ch Network Board Control Troubleshooting and Maintenance ■...
  • Page 17 places. 4) Do not connected to power supplies when installation or moving the device. 5) Do not touch the power adapter plug with wet hands. 6) Do not spill liquid on the machine, as it may cause internal short circuit or fire.
