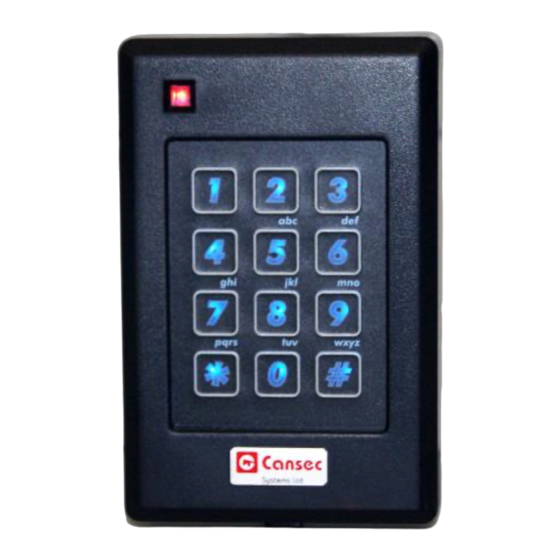

- Page 1 CanProx Proximity/Keypad Reader INSTALLATION INSTRUCTIONS July 2018...
-
Page 2: Table Of Contents
Wiring - Cansec Controllers ...........................7 Party Controllers .........................7 Wiring - 3 Programming ................................8 P-640-HA & P-620-HA (26-bit Wiegand Output) ................8 P-640-HA37 & P-620-HA37 (Cansec 37-bit Wiegand Output) ..........8 Special Configuration Card For Cansec H1000 Controller ............9 Proximity/Keypad Reader Usage .........................9... -
Page 3: Specifications
Model P-640-HA ..................26-bit Wiegand Model P-640-HA37 ..............Cansec 37-bit Wiegand Keypad Output Formats: Model P-640-HA ..........8-bit burst* (default) & 26-bit Wiegand Model P-640-HA37 ......8-bit burst* (default) & Cansec 37-bit Wiegand Frequency: ........................125 KHz Range: ............ up to 7” (varies with reader voltage and credentials) Operating Temp: .............. - Page 4 Model P-620-HA37 ..............Cansec 37-bit Wiegand Keypad Output Formats: Model P-620-HA ..........8-bit burst* (default) & 26-bit Wiegand Model P-620-HA37 ......8-bit burst* (default) & Cansec 37-bit Wiegand Frequency: ........................125 KHz Range: ............ up to 5” (varies with reader voltage and credentials) Operating Temp: ..............
-
Page 5: Introduction
(PIN). NOTE: Keypad data is transmitted in either Cansec 37-bit (P-640-HA37 & P-620-HA37)) or standard 26-bit (P-640-HA & P-620-HA) Wiegand data format. P-640-HA37 & P-620- HA37, and P-640-HA & P-620-HA have different firmware and are not interchangeable. -
Page 6: Wall Mounting
Wall Mounting Page 6 of 14 CanProx Proximity/Keypad Reader Installation Instructions August 2018 • Rev. 1.6... -
Page 7: Wiring - Cansec Controllers
For illustration purposes only. Pin placement is not in order as shown Important: and does not match the layout of many Cansec controllers. Please refer to the controller installation manual for the pin layout and match up each wire to the corresponding pin. -
Page 8: Programming
APPLICABLE FOR CANSEC CONTROLLERS ONLY The reader is shipped with the keypad outputting 8-bit burst Wiegand. To change the keypad output to Cansec 37-bit Wiegand, follow the procedure below. Appendix for 8-bit burst mode 1. Cycle power to the reader. -
Page 9: Proximity/Keypad Reader Usage
CONTROLLERS The following is a sample of one of the 4-bit burst configuration cards, which when presented to the P-640-HA, P-620-HA or P-640-HA37, P-620-HA37 reader will enable it to use 4-bit burst in keypad mode. This configuration is only required when using the “Keypad Options”... -
Page 10: Card + Pin Interface Module - Optional
Card + PIN Interface Module - Optional NOTE: Card + PIN Interface Module (part number CA-CARD+PIN) is not included with P-640-HA, P-620-HA or P-640-HA37, P-620-HA37. CA-CARD+PIN must be purchased separately. The module and the PIN generation utility are not required for MAP1 or MAP2 panels. - Page 11 The interface board is designed to be used with Cansec’s P-640-HA, P-620-HA or P-640- HA37, P-620-HA37 Proximity/Keypad Reader. The Proximity/Keypad Reader is connected to the interface board which in turn is connected to a regular Wiegand reader port on a Cansec or other manufacturer’s controller.
-
Page 12: Card + Pin Usage
CARD + PIN USAGE When a card is presented, the user must enter a 4 digit PIN, which is algorithmically derived from the System/Facility Code and ID number of the card they presented, followed by “#” key. If the correct PIN is entered on the keypad, the System/Facility Code and ID data from the card is transmitted to the connected access control unit. -
Page 13: Reader/Keypad Troubleshooting
Reader/Keypad Troubleshooting PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION The reader does not recognize 1. One or more of the readers’ Power down the reader/access panel and check that a card/tag (no beep, no LED wiring connections are incorrect. your wiring is correct. flash). -
Page 14: Appendix
The Proximity/Keypad Reader is usually shipped in 8-bit burst mode. However, if it was programmed to output standard 26-bit Wiegand or Cansec 37-bit Wiegand then follow the steps below to enable 8-bit burst: 1. Cycle power to the reader.
