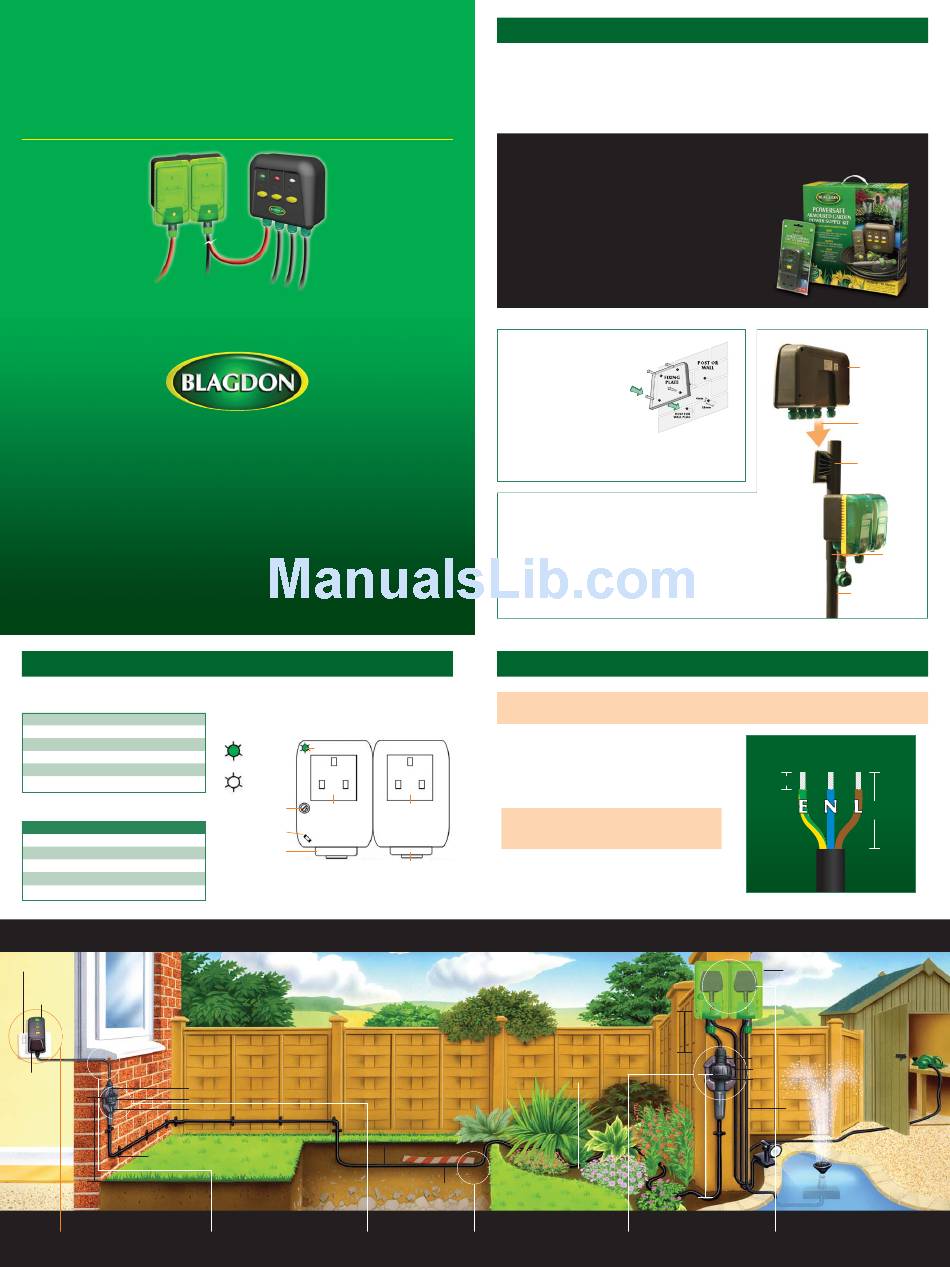

Blagdon Powersafe Installation Manual

EASY, SAFE, SIMPLE &
EASY, SAFE, SIMPLE &
FLEXIBLE GARDEN POWER
FLEXIBLE GARDEN POWER
EXTRA SAFE
• IP56 Weatherproof connecters
• Maximum load fuse protected
• LED Power supply active indicator
POWERSAFE
TWIN SOCKET
TRIPLE 2.2KW OUTLETS
• 2x Three pin sockets
• 1x Plug and socket
outlet/power link
Mains
power in
ENJOY THE CONVENIENCE OF OUTDOOR SOCKETS IN YOUR GARDEN
THE POWERSAFE GUIDE TO
OUTDOOR TWIN SOCKET
OUTDOOR TWIN SOCKET
Congratulations on buying a Blagdon Powersafe outdoor twin socket. This easy to install
system has been designed with numerous advanced features to help you safely enjoy the
convenience of outdoor sockets in your garden. Please take the time to read this guide
carefully to ensure that you get the maximum safety and benefits from this product.
IMPORTANT: Please attach proof of purchase to this manual and file in a safe place.
GETTING TO KNOW YOUR POWERSAFE OUTDOOR TWIN SOCKET
TECHNICAL SPECIFICATION
Voltage 220-240V
Hertz 50/60Hz
Safety IP56 CE
Cable size 4-9mm
Maximum power per outlet 2200w
combined three line outs 2200w
SPARES/ACCESSORIES
PART DESCRIPTION SPARE
Fixing bracket 1040389
Fixing bracket screws & plug set 1040396
10 amp fuse 1050692
Powersafe Garden Power Spike 1050272
Rubber Seals Kit 1050715
INSTALLATION GUIDE:
Mains Socket
RCD
Circuit
Breaker
Mains Plug
30cm
Min
Cable cleats
• Powersafe circuit breaker
plugged into standard
household 3-pin socket.
SIMPLE TO USE AND INSTALL
• Easy to replace pop out fuse (spare included)
• Integrated wall or post mounting bracket
• Plug and socket power link cable provided
COMPATIBLE
WITH ANY
POWERSAFE
Additional
PRODUCT
mains outlet
or 30cm
mains link
Flexible linking
cable
system option
Power outlets
to pond/garden
MAXIMUM LOAD PER OUTLET
POWER STATUS INDICATOR LIGHT
GREEN LIGHT
INDICATOR
POWER ON
NO LIGHT
POWER OFF/
FUSE HAS
BLOWN
FUSE LINE OUT 1
MAX - 2200W
10AMP SPARE FUSE
LINE IN: 230V
10A (FUSED)
2200W (MAX)
Shown using a Powersafe Armoured Garden Power supply and plug in RCD (sold separately).
Socket
Bracket 1
Plug
Above Ground
Below Ground
• Hole drilled through door/ •
window frame or wall &
sealed with weatherproof putty.
IMPORTANT:
with a flexible lead to a three pin plug, in conjunction with a circuit breaker as recommended in the
installation guide. It would not therefore be deemed to be a permanent part of the house wiring and
would not fall within the scope of Part P of the building regulations. However if the product is wired
directly into a fixed wiring spur, it will fall under part P of the building regulations and must be installed by
a qualified electrician or in consultation with a building control officer.
ELECTRICAL STANDARDS STATE THAT:
• ALL OUTDOOR POWER SUPPLIES MUST BE PROTECTED
BY A CIRCUIT BREAKER.
• ALL OUTDOOR ELECTRICAL COMPONENTS MUST COMPLY
WITH OUTDOOR WEATHERPROOF SAFETY STANDARDS.
• ALL POWER SUPPLIES ACROSS THE GARDEN MUST BE
CARRIED BY METAL SHEATHED ARMOURED CABLE.
IF BURIED, WARNING TAPE MUST BE APPLIED.
You can take power to your pond/garden using a Blagdon
Powersafe Armoured Garden Power Supply and plug in RCD.
This provides safe, legal and easy DIY power to your pond or
garden. Other garden power products are available in the
Blagdon Powersafe range.
SOCKETBOX MOUNTING
The Socketbox should be situated
in a site that is protected from:
• Flooding
• Extreme heat
• Physical damage
• Tampering by adults
and children
The Powersafe socket box is supplied with a mounting
bracket, four screws and wall plugs for convenient
wall or post mounting, contained within this carton.
POWERSAFE GARDEN POWER SPIKE
(SOLD SEPARATELY)
If a suitable wall or post are not available it is recommended that a
Powersafe garden power spike is purchased (see Spares/Accessories).
This allows for convenient and safe placement of all of the Powersafe
range of switch and socket boxes. It is also ideal for installations away
from a wall, as it prevents damage from splashing and flooding whilst
conforming to electrical safety standards recommended 30cm minimum
ground clearance for outdoor power installations.
IMPORTANT:
THAT THE PRODUCT IS BOTH WEATHERPROOF AND SAFE TO USE.
WARNING:
known as the Residual Current Circuit Breaker (RCCB),
with a tripping current not exceeding 30mA must be
installed in the supply circuit. A means of disconnection
from the supply having a contact separation of at least
3mm in all poles must be incorporated in the wiring.
LINE OUT 2
MAX - 2200W
IMPORTANT:
supply and ensure that all parts are clean and
dry before fitting.
The Socket Box has been designed to work with circular
LINE OUT 3
smooth sheathed cables only. The cable glands supplied
MAX - 2200W
allow fitting of cables between 4mm - 9mm diameter.
Use the smallest suitable gland size.
Hidden through
shrubs and plants
50cm
Buried cable
marking tape
Pre-wired plug & • Metal sheathed armoured
socket adaptor & cable can be buried, fixed to
fixing bracket. fence, or run above ground.
INSTALLATION
If this product is installed using a Blagdon Powersafe armoured garden power supply fitted
WIRING & ASSEMBLY
IT IS ESSENTIAL THAT THE INSTRUCTIONS ARE FOLLOWED FULLY TO ENSURE
A Residual Current Device (RCD), also
Switch off and isolate the power
40cm
Max
30cm
Min
• Connects armoured
cable to pre-wired
50cm rubber cable.
POWERSAFE
PRODUCT
SLIDES INTO
MOUNTING
BRACKET
MOUNTING
BRACKETS x2
57CM
HIGH
POLE
25CM SPIKE
INTO GROUND
CABLE PREPARATION
5mm
20mm
Twin
Socket Box
Plug
Bracket 2
Socket
Power to appliances
from socketbox

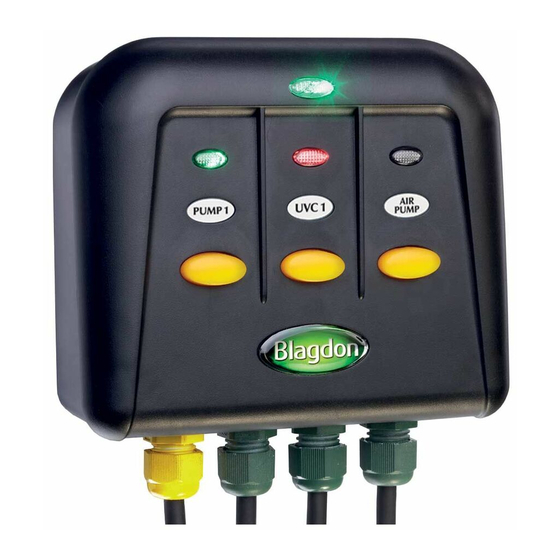

• Powersafe Remote
Control Socket Box
(triple outlet).
