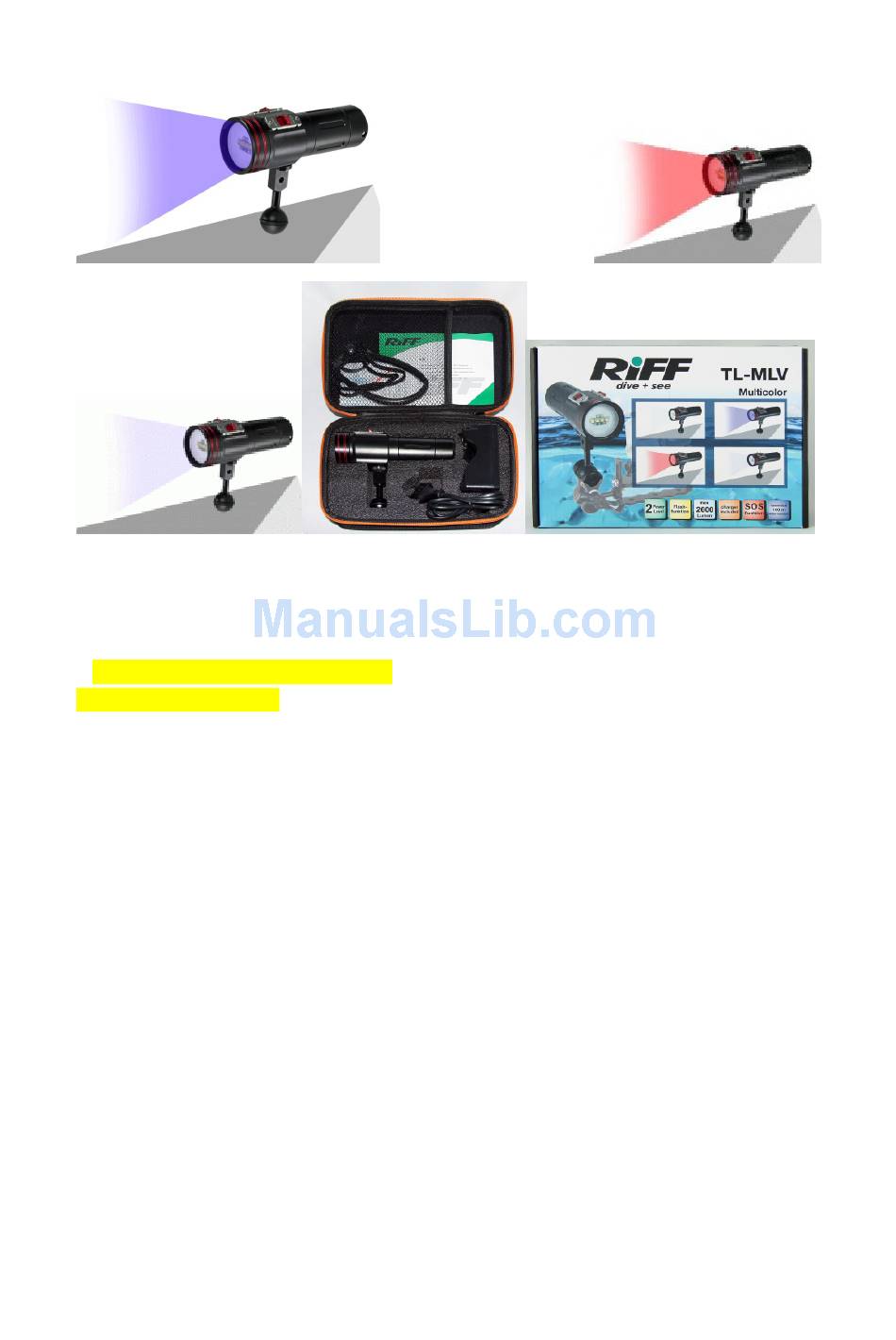

RiFF TL MLV 2 Diving Light
PRODUCT SPECIFICATIONS
◆Model: TL MLV 2 multifunction underwater photographing Light
◆Bulb: White CREE XM-L2 U2 LED *4 (max 2600 Lumens); Red CREE XP-E N3 LED*2;
Purple 6565 LED*2; UV LED*2
◆Switch 1: White high> White low> Strobe> Off
Switch 2: Red> Purple> UV> off
◆Runtime: White high: 72 min, Red/Purple/UV: 300 min
◆Reflector: no hotspot design, no reflector
◆Lens: 4mm Polycarbonate Board
◆Body material: Durable aircraft-grade aluminum
◆Angle of light beam: ca. 120°
◆Surface treatment: Premium Type III hard-anodizing
◆Color: Black
◆Battery: 32650 Li- ion Battery *1
◆With battery over-discharging protection, polarity reversing protection
◆Operation voltage: 2.8V to 4.5V.
◆Waterproof: 100 meters underwater
◆Dimensions: ca. 145 mm (length) *50mm (dia. of head).
◆Impact resistance: 1.5 M
◆Weight: ca. 332 g (without Battery); ca. 470 g (with Battery)
◆Underwater Weight: ca. 250 g (with Battery)
LOW BATTERY WARNING:
Flash 3 times if the battery voltage is less than 10%; that will repeat after 5 seconds, and then
switch to lower brightness; it will switch off when the voltage is less than 5%.
Advertisement
Table of Contents
Summary of Contents for Riff TL MLV 2
- Page 1 RiFF TL MLV 2 Diving Light PRODUCT SPECIFICATIONS ◆Model: TL MLV 2 multifunction underwater photographing Light ◆Bulb: White CREE XM-L2 U2 LED *4 (max 2600 Lumens); Red CREE XP-E N3 LED*2; Purple 6565 LED*2; UV LED*2 ◆Switch 1: White high> White low> Strobe> Off Switch 2: Red>...
- Page 2 BATTERY INSTALLATION 1. Remove the tail by turning counter-clockwise. 2. Remove used battery and replace with fresh battery as shown by the polarity stickers. 3. Mount the tail by turning clockwise. BATTERY CHARGING 1. Plug the charger in the wall power socket. The indicator light is green in the free-load status. 2.
