and alignment of the components.
Note: ​ T he crossed out resistor value at the lower part of the board is 1M.
Note: The protective fuses look quite similar to ceramic capacitors but are placed in the
blank rectangular markings on the board.
To ensure that all the connectors are properly aligned, solder them with the two boards
connected and screwed together. The same goes for the UI components, solder them with
the front panel secured in place.

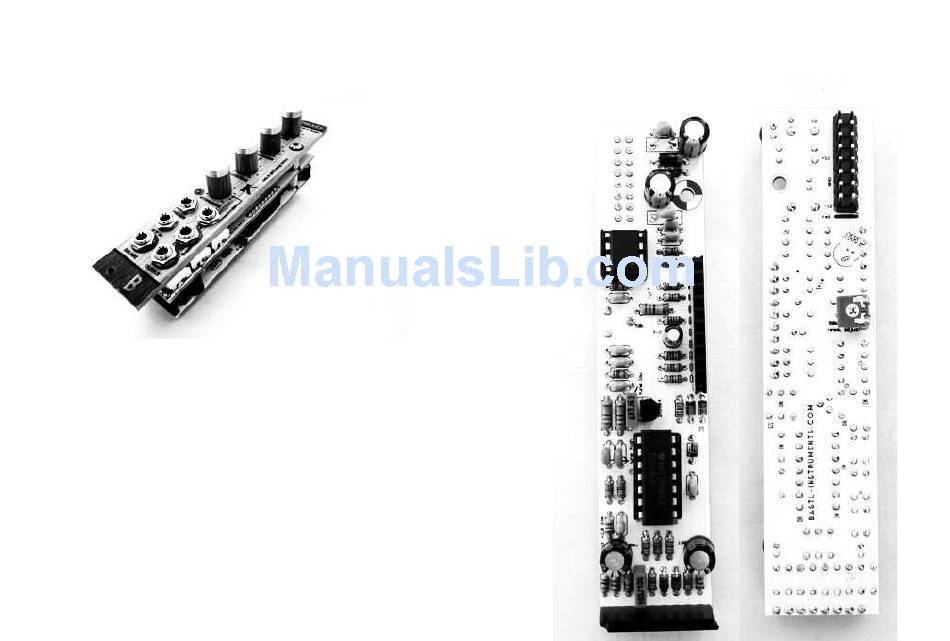

The finished bottom board should look like the one to the left.
TEA KICK v1.0 Brief Assembly guide

This is a brief guide
for more advanced
users. If you are a
beginner please look
for the detailed guide
on our website.
Start by populating
and
boards
shortest and smallest
parts. Taking care of
the values, polarity
soldering
the
with
the

Advertisement

loading
Need help?

Need help?

Do you have a question about the TEA KICK and is the answer not in the manual?

Questions and answers

Summary of Contents for Bastl TEA KICK

  • Page 1 TEA KICK v1.0 Brief Assembly guide   This is a brief guide for more advanced users. If you are a beginner please look for the detailed guide on our website. Start by populating soldering boards with shortest and smallest parts. Taking care of the values, polarity and alignment of the components.
  • Page 2 The LED long leg (+) is facing upwards. Also the notch on led and circuit board should match. Note: the LED and Switch have to be raised a bit off the PCB in order to reach through the front panel. The assembled top board should look like on the images to the left.
  • Page 3: Bill Of Materials

    Bill of Materials 2 x 10k resistors 1 x 68n capacitor 1 x TL74 IC 11 x 100k resistors 2 x 6,8n capacitor 1 x Switch 2 x 1M5 resistors 5 x 1N4148 diodes 2 x 100mA fuses 4 x 1k resistors 2 x 1N4007 diodes 1 x diffused green LED 1x 1M resistor...
