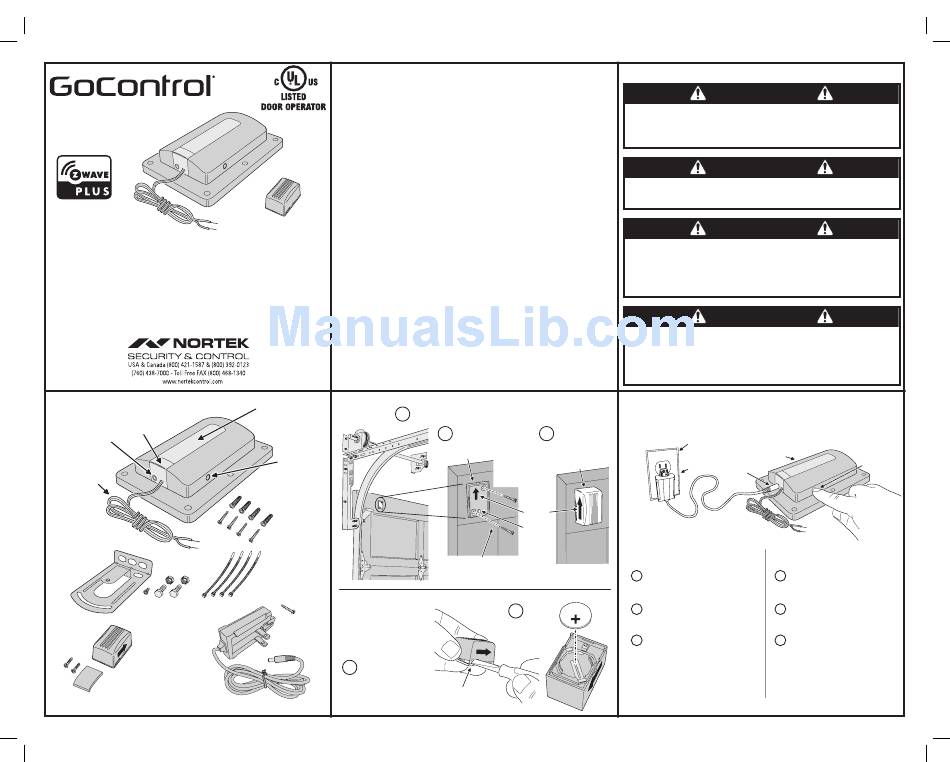

Gocontrol GD00Z-7 Installation Instructions

GD00Z-7
GARAGE DOOR OPENER
REMOTE COMMAND
TRANSCEIVER
with TILT SENSOR

Installation Instructions

3
PRODUCT COMPONENTS
GD00Z-7
STATUS
INDICATOR
POWER
INPUT
JACK
CONNECTION
WIRES
OPTIONAL
ADJUSTABLE
GD00Z-7 MOUNTING
BRACKET
WIRE
TIES
SCREW AND
MOUNTING HARDWARE
FOR ADJUSTABLE
TILT
BRACKET
SENSOR
SCREWS AND
MOUNTING TAPE
FOR TILT SENSOR
INSTR,INSTL,GD00Z-7 - P/N: 10016895 X3- INK: BLACK - MATERIAL: 20 LB. MEAD BOND - SIZE: 11.000" X 8.500" - TOL. +/-.125" - SCALE: 1-1 - FOLDING: 2-FOLD ALTERNATE - SIDE 1 OF 2
1
PRODUCT DESCRIPTION
GD00Z-7 Overview
• A garage door opener remote command
transceiver with built-in Z-Wave
technology.
• Allows remote operation of a garage door
opener using Z-Wave controllers.
• Acts as a Z-Wave repeater to improve
communications within the Z-Wave mesh
network.
GD00Z-7 Summary of Operation
• GD00Z-7 connects to the garage door
opener's pushbutton wall console
terminals.
• A wireless tilt sensor mounts on garage
door and reports door's position to
GD00Z-7.
• GD00Z-7 responds to Z-Wave commands
from Z-Wave controllers to open or close
the garage door.
• A warning indicator light flashes and a
beeper sounds for 5 seconds before the
door begins to move.
• If the door does not completely open or
close, a second open or close command
can be sent after 30 seconds.
• If the door does not completely open
or close after the second attempt, the
GD00Z-7 operation is suspended until a
local garage door pushbutton is activated.
4
TILT SENSOR INSTALLATION AND BATTERY
WARNING
1
LIGHT
LINK
BUTTON
MOUNTING SCREWS
AND ANCHORS
FOR GD00Z-7
MOUNTING SCREW
FOR POWER SUPPLY
The system will notify you
when the battery is low,
replace the battery with
POWER
a type CR2032 coin cell
SUPPLY
1
To open the case, twist
a small screwdriver
in case slot
PRINTER'S INSTRUCTIONS:
Z-Wave Information
• Z-Wave ® is a registered trademark of
Sigma Designs Inc. and/or its subsidiaries.
• Z-Wave is an Interoperable two-way RF
mesh networking technology designed for
use with a Z-Wave gateway/controller and
other Z-Wave enabled devices.
• Replication is the process of copying or
transferring your Z-Wave network from one
controller to another.
• This is a Security enabled Z-Wave product
and must be used with a Security enabled
Z-Wave controller in order to fully utilize
this product. As such, this device will not
respond to Basic CC commands.
• ASSOCIATION: GD00Z-7 supports 1
Group with 1 Node. Group 1 must be
assigned the Node ID of the controller
to which unsolicited notifications from
the GD00Z-7 will be sent. The Z-Wave
controller should set this association
automatically after inclusion.
S2 Security
• New S2 security uses Elliptic Curve
Diffie Hellman key exchange Protocol to
establish a secure communication channel.
• Uses multiple "Keys" to create a
permanent Key.
• Virtually impossible to hack.
• Z-Wave hub must also support S2
Security. If hub does not support S2,
device will operate using standard security.
To activate the tilt sensor,
remove the battery protection pull strip
2 3
Attach the mounting plate Snap the sensor onto
to the top panel of the door the mounting plate
ARROWS ON PLATE
& SENSOR POINT UP
"UP"
ARROWS
POST ON
BOTTOM
Use double sided tape or
the two mounting screws supplied
(drill 1/16" pilot holes if required)
LOW BATTERY REPLACEMENT PLUS SIDE UP !!!
2
Insert the CR2032
battery
into the
transmitter
SLOT
2
SAFETY NOTES
WARNING
This operator system is equipped with an unattended operation
feature. This door could move unexpectedly. NO ONE SHOULD
CROSS THE PATH OF A MOVING DOOR!
WARNING
This system can be installed on sectional type (roll up) doors only per
(UL-325). DO NOT INSTALL ON ONE-PIECE DOORS!
WARNING
The Remote Command Transceiver must be mounted in the
garage, in sight of the garage door, where the visual and audible
movement warning indicators can be clearly seen and heard.
WARNING
Do not install the Remote Command Transceiver on garage
door operators manufactured prior to 1993 (models without an
operational safety beam entrapment detection system).
5
PAIRING (INCLUDING) WITH THE SYSTEM
Note: Plug in the GD00Z-7
near your Z-Wave Controller
for these steps WALL
OUTLET
GD00Z-7
POWER
POWER
SUPPLY
INPUT
JACK
TO INCLUDE THE GD00Z-7 TO EXCLUDE THE GD00Z-7
INTO YOUR CONTROLLER FROM YOUR CONTROLLER
1 Place your Z-Wave Controller into 1 Place your Z-Wave Controller into
Discovery or Include mode. Exclude mode.
Press and release the link button Press and release the link button
2 2
on the GD00Z-7. on the GD00Z-7.
3 Confirm that the GD00Z-7 was 3 Confirm that the GD00Z-7 was
recognized by your Z-Wave Controller. excluded by your Z-Wave Controller.
Refer to your Z-Wave Controllers Refer to your Z-Wave Controllers
instructions for additional information instructions for additional information
on including devices. on excluding devices.
LINK
BUTTON
