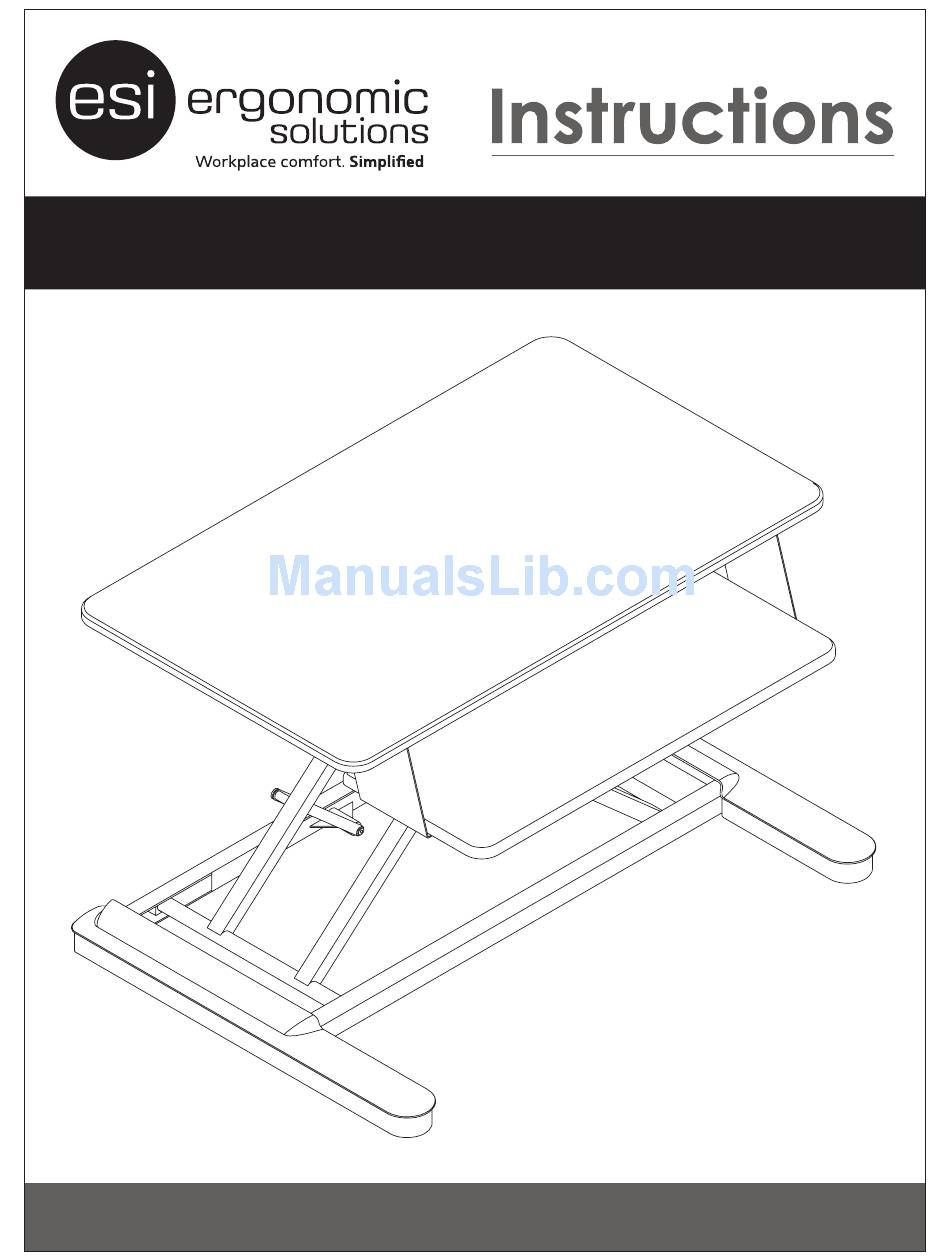

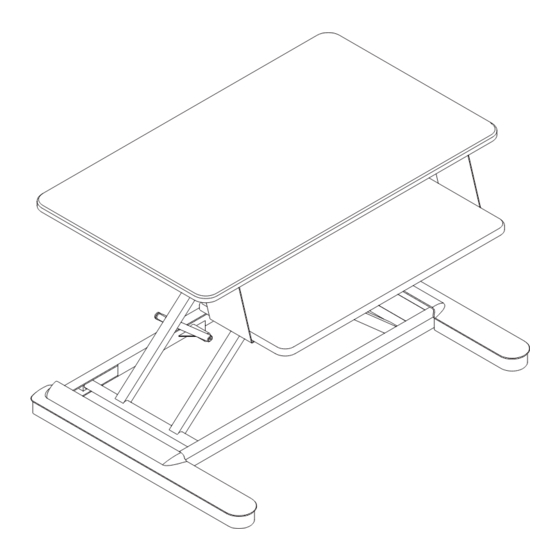

- Page 1 Model S2S-BLK SIT-TO-STAND S2S Rev B 6/17 USER GUIDE...
-
Page 2: Parts And Tools
S2S SIT-TO-STAND PARTS AND TOOLS PLEASE REVIEW these instructions before beginning the assembly and adjustment procedures. Check that all the parts and tools listed below were provided with your order. Contact your supplier if any materials are your satisfaction. PARTS AND TOOLS PROVIDED LIFT-S2S Assembly (1) 4mm Allen Key (1) Ratchet Wrench... - Page 3 SET-UP S2S SIT-TO-STAND Position the S2S Assembly on the Work Surface Position the S2S Assembly on the Work Surface • Monitor Height: space for the product and monitor(s) 18" to rise to the maximum height. (457mm) — The top of the product rises 15.7". In addition, allow at least 18"...
- Page 4 S2S SIT-TO-STAND SET-UP Test Operation • To prevent the unit from abruptly raising up, hold the top of the unit while squeezing the paddle lever. Raise the unit to its maximum height and release the lever. CAUTION: Keep both hands on the top platform to control the rate of movement when operating the paddle lever.
- Page 5 ADJUSTMENT S2S SIT-TO-STAND Make Any Necessary Adjustments If the product operates to your satisfaction, there is no need to make any adjustments. You may skip to “Final Set-Up” on page 6. The two possible adjustments are for keyboard platform projection (below) and load weight (page 6). Increase Keyboard Platform Projection •...
- Page 6 2S SIT-TO-STAND ADJUSTMENT Adjust for Load Weight This adjustment can be used to maximize ease of operation. When operating this product, the platform should move easily to any position and hold that position. • • –). • Use the 6mm ratchet wrench to turn the adjusting mechanism — counterclockwise to increase load, clockwise to decrease it.
- Page 7 800.833.3746 esiergo.com © 2017 ESI Ergonomic Solutions. All rights reserved. S2S Rev B 5/17...
