Deep Sea Electronics Plc 5220 Installation And Configuration Instructions

Config' Section Parameter
Analogue senders
Low Pressure
Low Pressure
High Temperature
High Temperature
Fuel Level %
Calendar Date/time
Timers
Mains transient delay
Start delay
Preheat
Crank attempt
Crank rest
Safety delay
Overspeed overshoot
Warming up
Transfer delay
Return delay
Cooling run
E.T.S.(Energise to stop) solenoid hold
Mains (utility) supply
Mains Low Voltage
Mains High Voltage
Mains Low Frequency
Mains High Frequency
Generator output
Generator Under Voltage L1-N
Generator Under Voltage L1-N
Generator Over Voltage
Generator Over Voltage
Generator Under Frequency
Generator Under Frequency
Generator Over Frequency
Generator Over Frequency
Delayed Overcurrent %
Engine speed
Under Speed (RPM)
Under Speed (RPM)
Over Speed (RPM)
Over Speed (RPM)
DC Voltages
Low DC Voltage
High DC Voltage
Charge Alternator Failure
Type Icons displayed
Trip
Pre Alarm
Pre Alarm
Trip
Pre Alarm
Date/time
1
Timer (secs)
2
Timer (secs)
3
Timer (secs)
4
Timer (secs)
5
Timer (secs)
6
Timer (secs)
7
Timer (secs)
8
Timer (secs)
9
Timer (secs)
10
Timer (secs)
11
Timer (secs)
12
Timer (secs)
Trip
V
Trip
V
Trip
Trip
Trip
V
Pre Alarm
V
Pre Alarm
V
Trip
V
Trip
Pre Alarm
Pre Alarm
Trip
Trip
A
Trip
Pre Alarm
Pre Alarm
Trip
Warning
V
Warning
V
Warning
D E E P S E A E L E C T R O N I C S

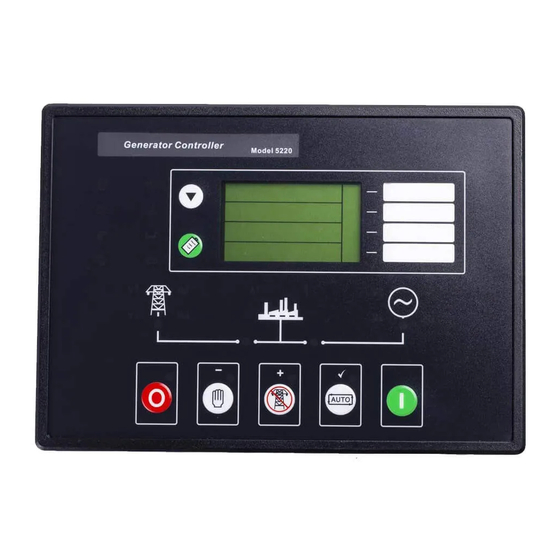

Model 5220 Installation and Configuration Instructions
Accessing the front panel config' editor
Press the configure/log and Stop/Reset
The LCD configure indicator will flash to indicate that the module is in 'configuration mode'. Release the
Stop/Reset button and the configure/log
If a PIN number has been set, press + / - to set the first digit, then press
digit.
Repeat this until all four digits have been entered.
The first configurable parameter is now displayed. Pressing the + or - buttons will cycle through the
parameters.
NOTE:- To exit the front panel configuration editor at any time, press the Stop/Reset
button. Ensure you have saved any changes you have made by pressing the

Editing an analogue value

Access the front panel config editor as detailed above. Press the +/- buttons to view the parameter you
wish to change (see parameter table overleaf). Press the
adjusted will flash. Press the +/- buttons to adjust the parameter to the desired value. Press the
to 'save' the value. The value will stop flashing to confirm that it has been saved. To select another value to
edit, press the + button. Continuing to press the +/- buttons will cycle through the available parameters.

Editing the time

The date/time should initially be set using the 5200 series configuration software. However there may be
certain circumstances where a minor change to the module's time is required. One such instance is
correction for daylight saving. Access the front panel config editor as detailed above. Press the + button
until the calendar is shown :
NOTE:- Full configuration of the 5220 module is possible using the 5200 series configuration
software for PC in conjunction with the P810 interface.
Deep Sea Electronics Plc.
Highfield House, Hunmanby Industrial Estate,
North Yorkshire. YO14 0PH. ENGLAND.
Tel:+44 (0)1723 890099
Fax: +44 (0)1723 893303.
Email: sales@deepseaplc.com
Web: www.deepseaplc.com
LO CALL (from UK BT landlines) : Telephone
0845 260 8900.
053-020 ISSUE 4
buttons simultaneously.
button.
to adjust the next
button first.
button to enter adjust mode. The value to be
To edit the time, press the button. The minutes, '30' in this
example, will begin flashing. Press the + or - buttons to adjust
the minutes. Press the button to select hours, day, month
and year. The selected parameter will flash.
Press the button to save the change. The time stops flashing
to confirm that it has been successfully stored.
Example : This display is showing a time of 4:30 on 21
October 2002.
