Summary of Contents for HY-LINE CMLUX-24S

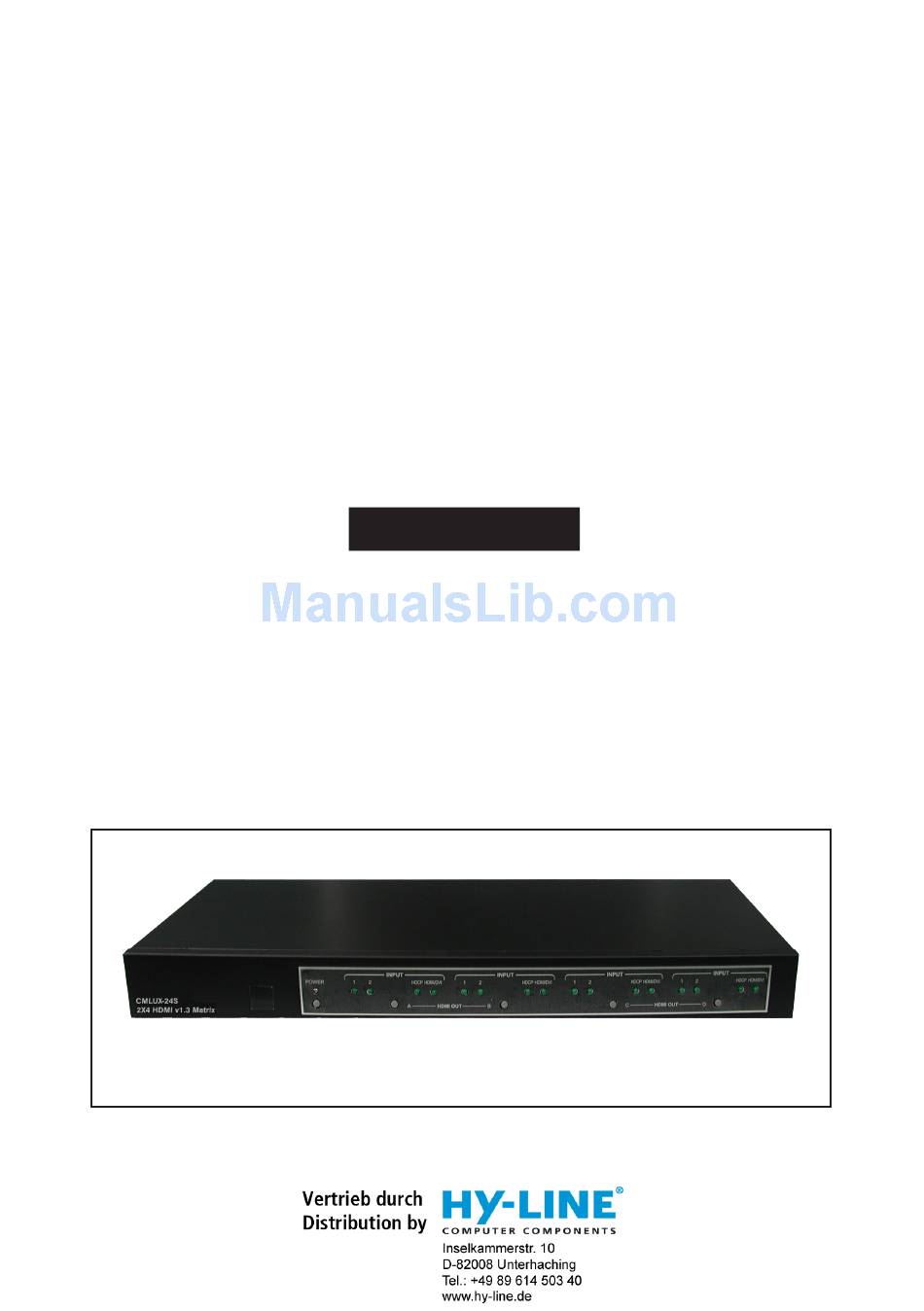

- Page 1 CMLUX-24S 2 by 4 HDMI V1.3 Matrix Operation Manual CMLUX-24S...
- Page 2 Revision History Version No. Date Summary of Change 20081111 Preliminary Release 20090407 HDMI Cable distance& Remote Control distance. Precaution Failure to follow the precautions described below may cause damage to HDMI 1.3 Matrix Box and void the warranty. DO NOT open the case. Doing so will void the warranty. If you find ...
-
Page 3: Table Of Contents
Table of Contents 1. Introduction..…………………………………………........ 2. Application......…………………………………………..… 3. Package Contents.......……………………………….……. 4. System Requirement........……………………………..…… 5. Features........………………………………………...……….. 6. Installation........…………………………………...………….. 7. Front View........…………………………………...………….. 8. Remote Control.......…………………………………...……….…. 9. RS-232 Protocal.......…………………………………...………….. 9.1 Commands .......…………………………………...………….. 10. Connection and Installation..............11. Specifications.................. -
Page 4: Introduction
1. Introduction Thank you for purchasing the HDMI V1.3 Matrix. Due to the increasing popularity of HDMI products people are starting to have more than one HDMI device in their home or office. The HDMI V1.3 Matrix is an excellent solution for connecting all of your HDMI devices and sources together and with an excellent remote control to switch between the devices and sources this system is also easy to use. -
Page 5: Features
5. Features HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant. Supports digital video formats in 12bit Deep Color and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio. The HDMI input is compensated, clock / phase adjusted and jitter ... -
Page 6: Installation
6. Installation RS-232 DC 5V HDMI OUTPUT HDMI INPUT EDID EDID Control Switcher: Default factory setting is TV, leave as is when the displays are working properly. Switch to STD to use the built-in EDID. Detailed capabilities in Note. RS-232 communication port: Connect to the COM port of your PC for long distance control using RS-232. -
Page 7: Front View
7. Front View POWER HDCP HDMI/DVI HDCP HDMI/DVI HDCP HDMI/DVI HDCP HDMI/DVI CMLUX-24S HDMI OUT HDMI OUT 2X4 HDMI v1.3 Matri x 6 7 8 Remote control sensor. Power switch & LED Indicator: The green LED will switch on when the power is turned on and the red LED will turn off when power is switched off. -
Page 8: Remote Control
5. Input Select for HDMI OUT D: Press 1or 2 to select the desired input source for HDMI OUT D. *Notes: Selection 3&4 are not functioning for this model. 9. RS-232 Protocal Pin Definition CMLUX-24S Remote Control Console Definition Definition → ←... -
Page 9: Commands
9.1 Commands COMMAND ACTION POWER 00 Power Off (standby) POWER 01 Power On PORT 11 Output A select Input1 PORT 12 Output A select Input2 PORT 13(No Function) Output A select Input3 PORT 14(No Function) Output A select Input4 PORT 21 Output B select Input1 PORT 22 Output B select Input2... -
Page 10: Connection And Installation
10. Connection and Installation HD TV HD TV HD TV HD TV 30˚ 30˚ POWER OUTPUT OUTPUT OUTPUT OUTPUT CR-33... -
Page 11: Specifications
11. Specifications Frequency bandwidth 2.25Gbps (single link) Input ports 2 x HDMI female ports, Output ports 4 x HDMI female ports EDID Standard, TV/Moving Port 1 HDMI Audio output PCM2, PCM5.1, PCM7.1, Dolby5.1, DTS5.1, DD+, D- TrueHD, DTS-HD HDMI Cable in 1080p 8bit (10M), 1080p 12bit (10M) HDMI Cable out 1080p 8bit (10M), 1080p 12bit (6M) - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20081111 MPM-CMLUX24S...
