6SP0235T Description & Application Manual
Driver solution for HybridPACK
Abstract
The 6SP0235T is a six-channel driver with an electrical interface. The driver is based on CONCEPT's SCALE-2
chipset, a highly integrated technology for the reliable driving and safe operation of IGBTs.
Perfectly matched driver versions are available for HybridPACK
of the driver allows immediate operation after mounting. The user needs invest no effort in designing or
adjusting it to a specific application.

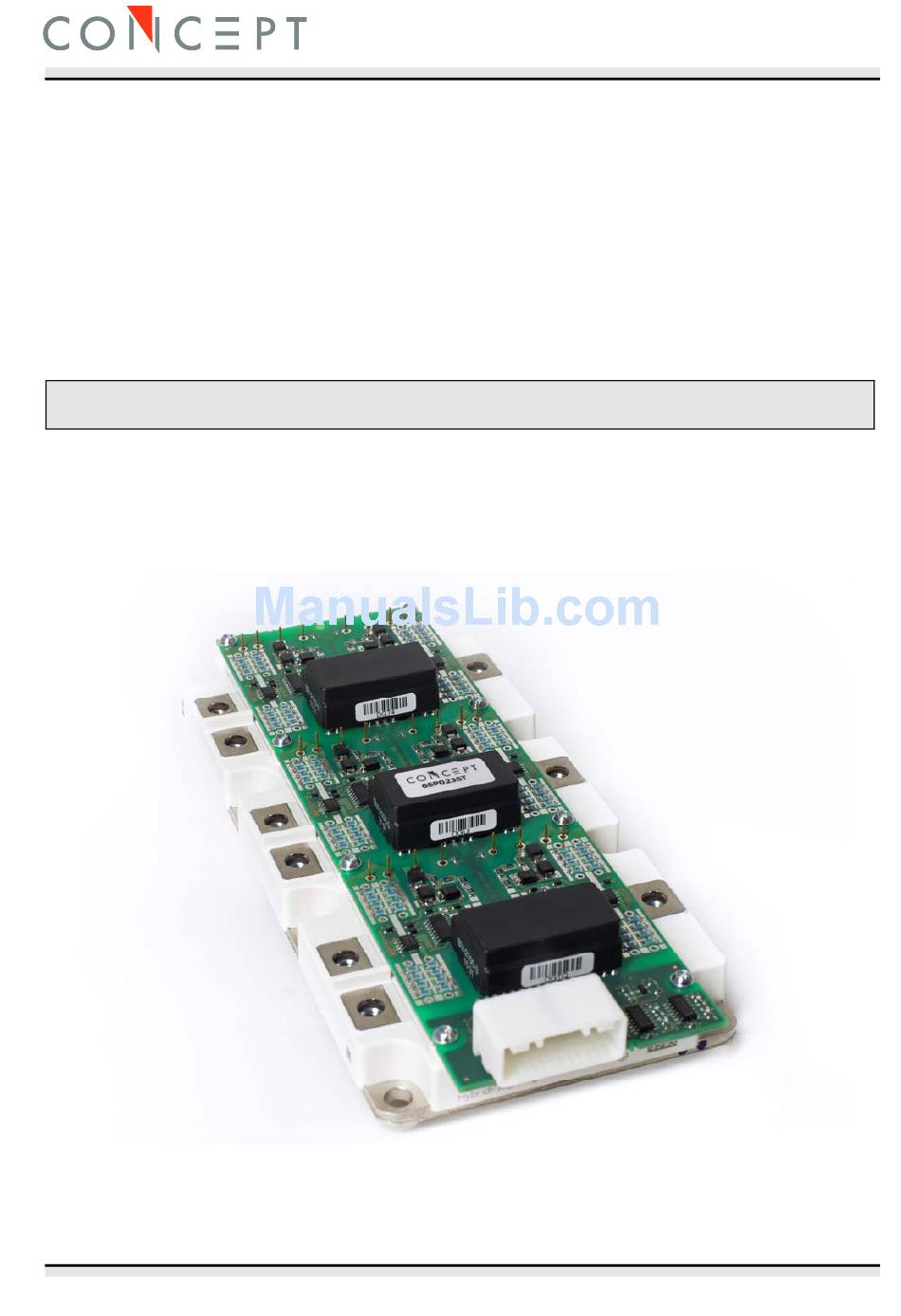

Fig. 1 6SP0235T soldered onto a HybridPACK
HybridPACK is a trademark of Infineon Technologies AG, Munich
IGBT-Driver.com
TM
2 IGBT modules with an electrical interface
TM
2 IGBT modules. The plug-and-play capability
TM
2 IGBT module
6SP0235T
Target
Page 1
Advertisement
Table of Contents
Summary of Contents for Concept2 6SP0235T
- Page 1 2 IGBT modules with an electrical interface Abstract The 6SP0235T is a six-channel driver with an electrical interface. The driver is based on CONCEPT’s SCALE-2 chipset, a highly integrated technology for the reliable driving and safe operation of IGBTs. Perfectly matched driver versions are available for HybridPACK 2 IGBT modules.
-
Page 2: Table Of Contents
SO1_x, SO2_x (status outputs) ..................... 11 TB (input for adjusting the blocking time) ................12 NTC terminals ........................12 How Do 6SP0235T SCALE-2 Drivers Work in Detail? ..............13 Overview ..........................13 Power supply and electrical isolation ..................14 ... - Page 3 6SP0235T Target Quality ............................19 Legal Disclaimer ........................... 19 Ordering Information ........................20 Information about Other Products ....................20 Manufacturer ..........................20 IGBT-Driver.com Page 3...
-
Page 4: System Overview
The SCALE-2 driver chipset is a further development of the proven SCALE technology /2/. The basic topology of the 6SP0235T driver is shown in Fig. 2. The values for the gate resistors and other key components can be found in the specific datasheets for a given IGBT module /3/. -
Page 5: The Six Steps To Success
The following steps point out the easy way to use 6SP0235T drivers in power converters: 1. Choose a suitable driver When applying 6SP0235T drivers, you should note that they are specifically adapted to a particular type of IGBT module. The type designation of the driver consequently also includes a number corresponding to a specific IGBT module (see “Ordering Information”). -
Page 6: Set Up And Test The Power Stack
It is imperative to comply with the respective safety regulations! Mechanical Dimensions Electrical connector X1: 1318853-3 from TYCO Electronics Recommended cable connector: 1318917-1 with crimp contacts 1123343-1 from TYCO Electronics Fig. 3 Mechanical dimensions of 6SP0235T Page 6 INTELLIGENT POWER ELECTRONICS... -
Page 7: Pin Designation Of Connector X1
6SP0235T Target Pin Designation of Connector X1 Fig. 4 Front view of connector X1 Pin Des. Function Pin Pin Des. Function Pin +15V for DC/DC converter 13 VCC +15V for primary side electronics +15V for DC/DC converter 14 GND Ground... -
Page 8: Recommended Interface Circuitry For Connector X1
X1 - X1 - INA_2 PWM1_2 X1 - INB_2 PWM2_2 X1 - X1 - INA_3 PWM1_3 X1 - INB_3 PWM2_3 X1 - NTC_1 X1 - NTC_C X1 - Fig. 5 Recommended user interface of 6SP0235T Page 8 INTELLIGENT POWER ELECTRONICS... - Page 9 X1 - - HV X1 - X1 - X1 - + HV X1 - X1 - X1 - Phase 3 X1 - X1 - - HV Fig. 6 Block diagram covering SCALE-2 driver 6SP0235T and IGBT module IGBT-Driver.com Page 9...
-
Page 10: Description Of Interface X1
Description and Application Manual Description of Interface X1 General The interface X1 of the driver 6SP0235T is very simple and easy to use. The driver has the following terminals: 3 x power-supply terminals (but only one 15V power supply is needed) -
Page 11: Ina_X, Inb_X (Channel Drive Inputs, E.g. Pwm)
6SP0235T Target Half-bridge mode If the MOD input is low level (connected to GND), half-bridge mode is selected. In this mode, the inputs INA_x and INB_x have the following functions: INA_x is the drive signal input while INB_x acts as the enable input of the corresponding phase (see Fig. -
Page 12: Tb (Input For Adjusting The Blocking Time)
6SP0235T Description and Application Manual How the status information is processed A fault on the secondary side (detection of short-circuit of IGBT module or supply undervoltage) is transmitted to the corresponding SOx_x output immediately. The corresponding SOx_x output is automatically reset (returning to the high impedance state) after the blocking time Tb has elapsed (read the relevant data sheet for timing information /3/). -
Page 13: How Do 6Sp0235T Scale-2 Drivers Work In Detail
Vce monitoring for short-circuit protection, operation inhibit after fault, supply-undervoltage shutdown and status feedback. Outstanding features of 6SP0235T SCALE-2 drivers are: compact size, simple mounting - directly onto the IGBT module, advanced active-clamping function and short-pulse suppression. Active clamping describes an active scheme designed to protect the IGBTs against overvoltage during turn-off. -
Page 14: Power Supply And Electrical Isolation
6SP0235T Description and Application Manual Power supply and electrical isolation The driver is equipped with a DC/DC converter to provide an electrically insulated power supply to the gate driver circuitry. The signal isolation is realized with transformers. All transformers (DC/DC and signal transformers) feature safe isolation to EN 50178 and IEC 60664-1, protection class II between primary side and either secondary side (refer to the data sheets /3/). -
Page 15: Ce Monitoring / Short-Circuit Protection
6SP0235T Target monitoring / short-circuit protection The basic V monitoring circuit implemented in Driver 6SP0235T SCALE-2 drivers is illustrated in Fig. 9. Input The IGBT collector-emitter voltages are measured Voltage with a resistor network. V is checked after the response time (see Fig. 10) at turn-on to detect a short circuit. -
Page 16: Turn-Off Of The Igbt
Basic active-clamping topologies implement a single feedback path from the IGBT’s collector through transient voltage suppressor devices (TVS) to the IGBT gate. The 6SP0235T SCALE-2 drivers support CONCEPT’s advanced active clamping based on this principle: when active clamping is activated, the turn-off MOSFET of the driver is switched off in order to improve the effectiveness of the active clamping and to reduce the losses in the TVS. - Page 17 For the maximum permitted DC-link voltage, refer to the gate driver data sheets /3/. Figure 12 shows an exemplary turn-off transition of an 800A/650V IGBT module controlled with a 6SP0235T driver.
-
Page 18: Parallel Connection Of 6Sp0235T
Low-inductance layout The active-clamping function should not lead anyone to forget about the inductances of the power stack. For several reasons, it is still necessary to reduce the DC-link stray inductance to about 25nH with 6SP0235T plug- and-play drivers. Bibliography “Smart Power Chip Tuning”, Bodo’s Power Systems, May 2007... -
Page 19: The Information Source: Scale-2 Driver Data Sheets
6SP0235T Target The Information Source: SCALE-2 Driver Data Sheets CONCEPT offers the widest selection of gate drivers for power MOSFETs and IGBTs for almost any application needs. The largest website on gate-drive circuitry anywhere contains all data sheets, application notes and manuals, technical information and support sections: www.IGBT-Driver.com... -
Page 20: Ordering Information
6SP0235T Description and Application Manual Ordering Information See the current list on www.IGBT-Driver.com/go/6SP0235T Refer to www.IGBT-Driver.com/go/nomenclature for information on driver nomenclature The general terms and conditions of delivery of CT-Concept Technologie AG apply. Information about Other Products For drivers adapted to other high-voltage or high-power IGBT modules Direct link: www.IGBT-Driver.com/go/plug-and-play... - Page 21 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Power Integrations 6SP0235T2A0-FS800R07A2E3...
