ScatterBox XHDM130 Manual

HDM130 HDMI Extender over Co-ax
The HDM130 transmitter and receiver can
extend an HDMI signal up to 100 metres on
RG59 Co-ax cable. The unit supports 1080P
and has a reverse IR control facility to allow
control of a DVR or other device from one
area to another.
This is particularly useful when replacing an
older analogue DVR that was connected to an
analogue monitor using co-ax, with an HDMI
DVR and HDMI monitor using the existing
RG59 co-ax cable originally installed.

Installation Instructions

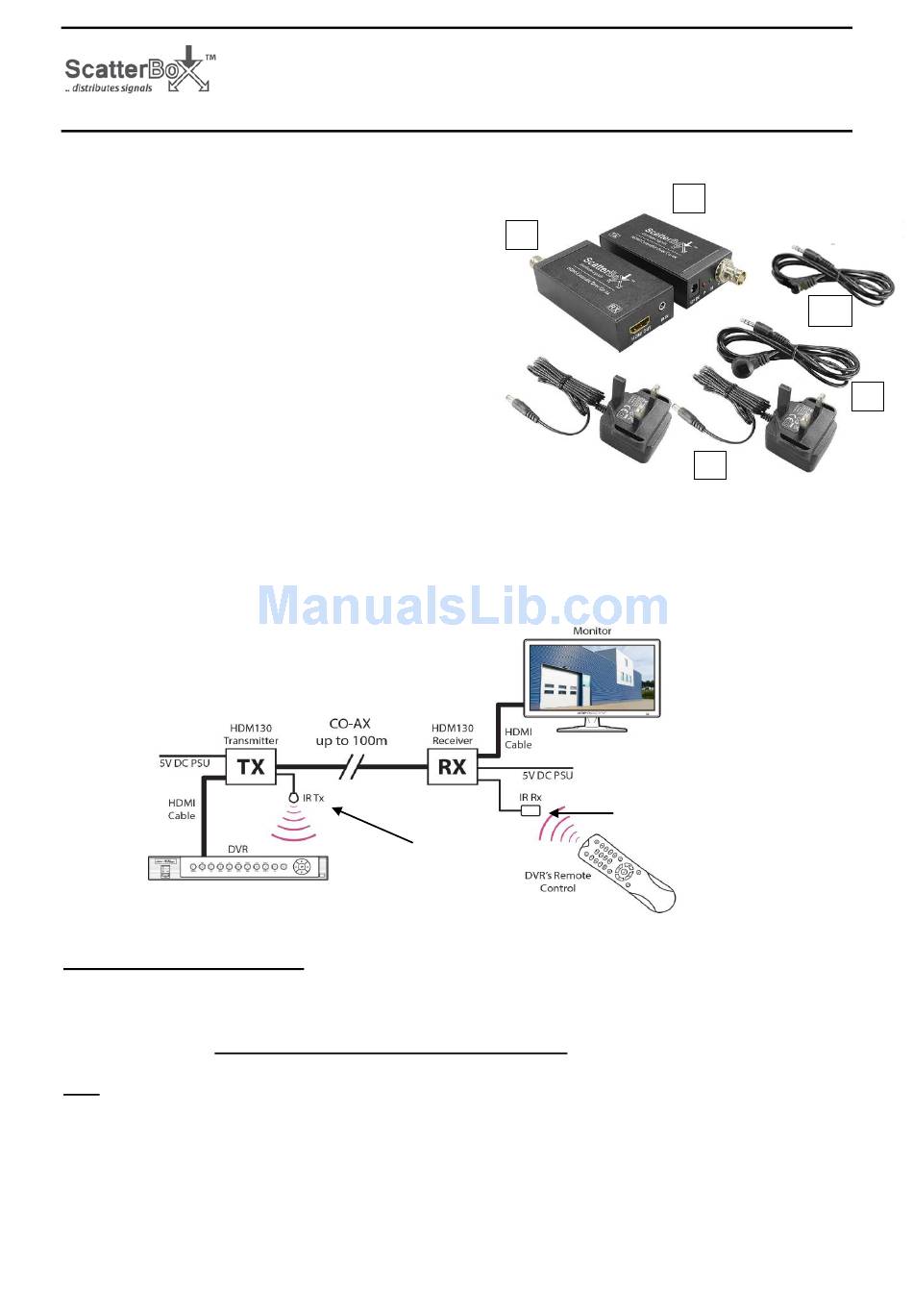

Parts Supplied:
1. HDMI Transmitter 2. HDMI Receiver 3. Power Supply x 2 4. IR Lead TX 5. IR Lead RX
Example for a CCTV system
Transmitter
1- Using a standard HDMI lead, connect the HDMI from the DVR's HDMI output to the HDMI
IN on the TX unit. HDMI cable maximum length up to 10 metres.
Note that if the HDMI cable run connected to the HDM130 transmitter input is longer than 10 metres, the
use of an additional HDM150 extender would allow a maximum HDMI run of 30m by using two 15m
HDMI cables, one either side of the HDM150.
2- If required, plug in the IR transmitter - position it so it can 'see' the IR control of the
DVR. This is the lead with the small bulb and single banded jack plug.
3- Power up each unit using one of the 12v DC PSUs supplied.
Email: support@kovert.com
HDMI Extender over RG59 Co-ax
Sends HDMI signal up to 100m
IR TX has small bulb and
jackplug is single banded
1
2
IR RX has large bulb and
jackplug is dual banded
Last Revised 05/04/2018
XHDM130
4
5
3
