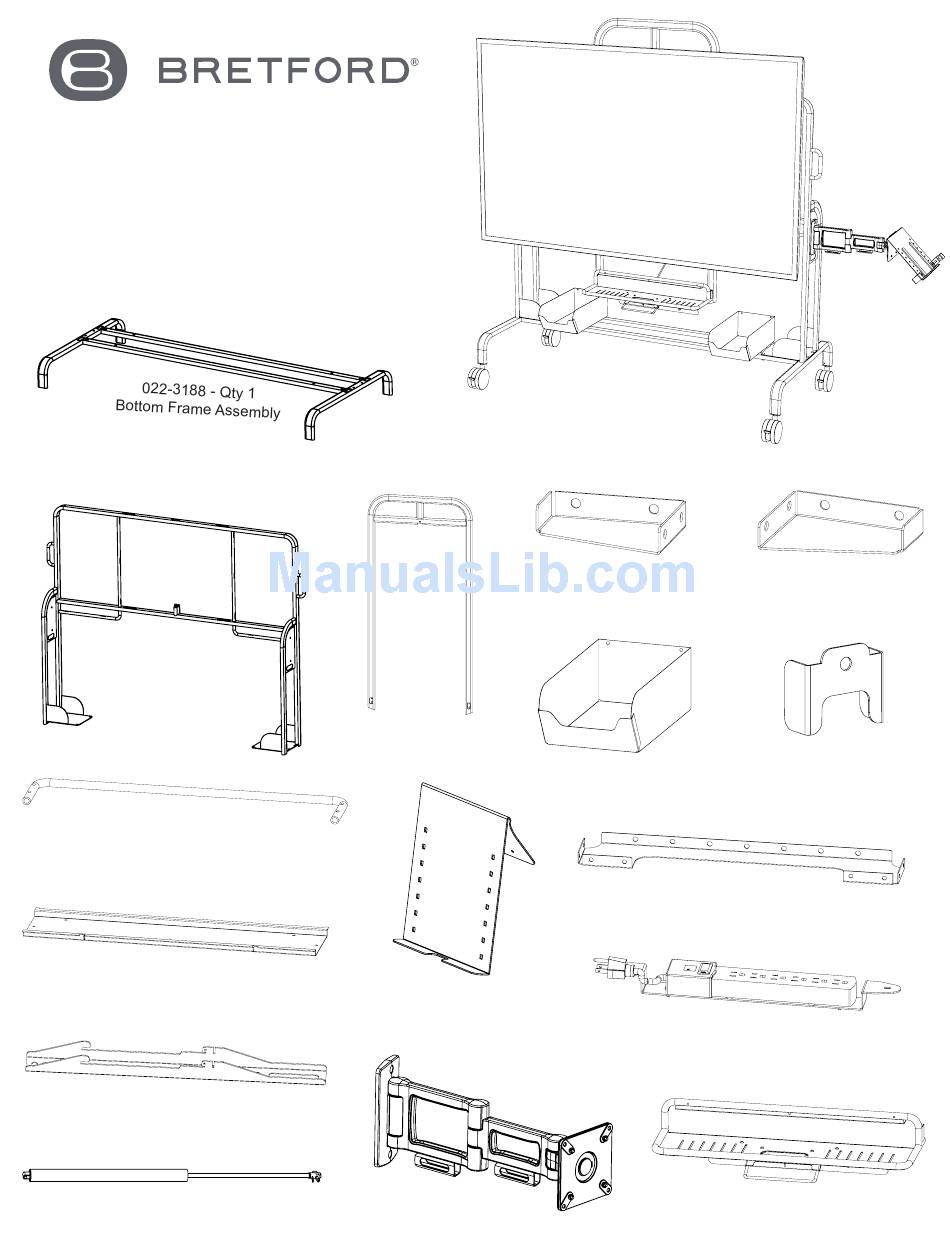

EDUIMS

INTERACTIVE MEDIA

STATION

Assembly Instructions

022-3187 - Qty 1

Upper Frame Assembly

017-1480 - Qty 2

Monitor Support Tube

010-7264 - Qty 1

Main Support

010-4953 - Qty 2

Hook Bar

030-1990 - Qty 1

770N Gas Spring

010-7266 - Qty 1

Bottom Support

022-3655

Qty 1

Support

Assembly

060-1466 - Qty 2

Storage Bucket

010-6227 - Qty 1

Laptop Tray

060-0926 - Qty 1

Articulating Arm

Panel RH

010-7267 - Qty 2

Vertical Support Panel

E6 Unit - Qty 1

060-1465 - Qty 1

Handle Assembly

010-7265 - Qty 1

Bottom Support

Panel LH

010-6127 - Qty 1

Cable Retention

Bracket

Need help?

Do you have a question about the EDUIMS and is the answer not in the manual?

Questions and answers

Summary of Contents for Bretford EDUIMS

Page 1: Assembly Instructions
EDUIMS INTERACTIVE MEDIA STATION Assembly Instructions 010-7265 - Qty 1 010-7266 - Qty 1 Bottom Support Bottom Support Panel LH Panel RH 022-3187 - Qty 1 022-3655 Upper Frame Assembly Qty 1 Support Assembly 010-6127 - Qty 1 060-1466 - Qty 2...
Page 2 Assembly Instructions 010-4956 - Qty 2 030-0272 - Qty 2 030-0845 - Qty 4 030-1571 - Qty 4 030-1267 - Qty 4 Stop Bracket 1/4-20 x 1/2” Carriage M4 Nut M4 x 0.7 20mm 1” Square Black Pan Hd Screw Bolt Foam 030-1621 - Qty 2...
Page 3 Assembly Instructions TWO PERSON ASSEMBLY REQUIRED 015-0176 (4)x 022-3188 (1)x Lock Lock Lock Interactive Media Station 031-10725 Rev. 01 11.09.16...
Page 4 Assembly Instructions 022-3187 (1)x Faces shorter side Correct Position 030-0538 (4) 2x 030-0207 (4) 2x Interactive Media Station 031-10725 Rev. 01 11.09.16...
Page 5 Assembly Instructions 030-1990 (1)x 030-0538 (1)x 030-0207 (1)x Interactive Media Station 031-10725 Rev. 01 11.09.16...
Page 6 Assembly Instructions 022-3655 (1)x Interactive Media Station 031-10725 Rev. 01 11.09.16...
Page 7 Assembly Instructions 030-0207 (1)x 030-0538 (1)x Interactive Media Station 031-10725 Rev. 01 11.09.16...
Page 8 Assembly Instructions 010-7267 (2)x 030-0304 (12)x 010-7265 (1)x 010-7266 (1)x Interactive Media Station 031-10725 Rev. 01 11.09.16...
Page 9 Assembly Instructions 030-0913 (16)x 030-1657 (8)x 030-1204 (8)x 017-1480 (2)x Interactive Media Station 031-10725 Rev. 01 11.09.16...
Page 10 Assembly Instructions 030-0207 (4)x hole from bottom hole from bottom 030-0304 010-7264 (1)x (4)x Interactive Media Station 031-10725 Rev. 01 11.09.16...
Page 11 Assembly Instructions Attach both hook bars onto the back of your monitor using the mounting holes built into the case. A courtesy hardware pack has been provided with several metric screw sizes. You may need to purchase additional metric screws from your local hardware store for a monitor with different mounting screw size. Screws provided in courtesy hardware pack #044-2124.
Page 12 Assembly Instructions TWO PERSON ASSEMBLY REQUIRED Hook monitor onto main support bar as shown. MONITOR NOT SHOWN FOR CLARITY Interactive Media Station 031-10725 Rev. 01 11.09.16...
Page 13 Assembly Instructions Attach the stop brackets to the hook bars as shown with security screws using the driver bit provided. 030-0865 (2) 2x 010-4956 (1) 2x Interactive Media Station 031-10725 Rev. 01 11.09.16...
Page 14 Assembly Instructions Center your monitor horizontally and then tighten in place with screws 010-0354 (2)x Interactive Media Station 031-10725 Rev. 01 11.09.16...
Page 15 Assembly Instructions 060-1465 (1)x 030-0291 (4)x Interactive Media Station 031-10725 Rev. 01 11.09.16...
Page 16 Assembly Instructions E6 Unit (1)x Interactive Media Station 031-10725 Rev. 01 11.09.16...
Page 17 Assembly Instructions When attaching the cable to the cylinder, be very careful not to pull up on the lever. By doing this it may cause the cylinder to spring up. 030-1611 (1)x Hook end of cable onto cylinder Slide in place Interactive Media Station 031-10725 Rev.
Page 18 Assembly Instructions 010-6127 (1)x Interactive Media Station 031-10725 Rev. 01 11.09.16...
Page 19 Assembly Instructions Slide cable through hole in handle assembly Interactive Media Station 031-10725 Rev. 01 11.09.16...
Page 20 Assembly Instructions Slide cable through eye lit hole and slide into slot Bottom View Interactive Media Station 031-10725 Rev. 01 11.09.16...
Page 21 Assembly Instructions With pliers, pull the cable through the next handle piece so that it sits in the narrow part of the eyelit hole. Interactive Media Station 031-10725 Rev. 01 11.09.16...
Page 22 Assembly Instructions Note: Can be mounted to either side of cart. 060-0926 (1)x 030-0207 030-1026 (2)x (2)x Interactive Media Station 031-10725 Rev. 01 11.09.16...
Page 23 Assembly Instructions 010-6227 (1)x 030-1267 030-0845 (4)x (4)x Interactive Media Station 031-10725 Rev. 01 11.09.16...
Page 24 Assembly Instructions 030-1621 (2)x 030-1569 (2)x 012-0692 (1) 2x 010-6228 (1) 2x 030-1571 (1) 2x Interactive Media Station 031-10725 Rev. 01 11.09.16...
Page 25 Assembly Instructions NOTE: Before attaching the square foam pieces, decide where you are going to mount the outer brackets. Then proceed with attaching the foam squares. 030-1571 (2)x 030-0272 (2)x 030-0240 (2)x 012-0696 (2)x Interactive Media Station 031-10725 Rev. 01 11.09.16...
Page 26 Fax: 847-678-0852 BRETFORD.COM Bretford, B design, and EDUIMS are trademarks or registered marks of Bretford Manufacturing, Inc. or Bretford Manufacturing, Ltd. Patents pending. ©2016 Bretford Manufacturing, Inc. All rights reserved. All other referenced product names and logos are trademarks of their respective owners.
