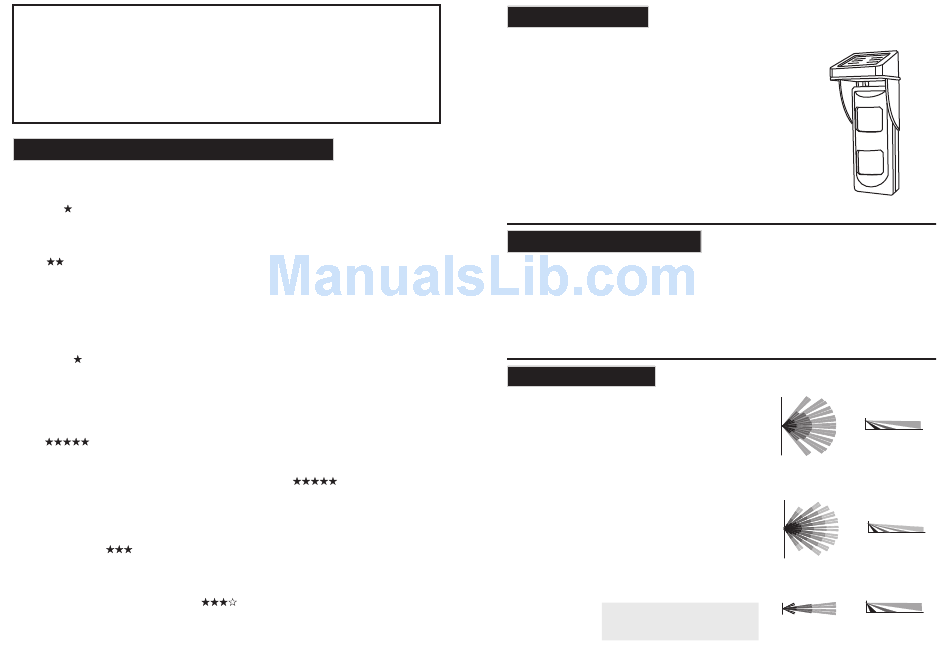

SUNLIT TECH OSD-40DP Installation Manual

Outdoor Intelligent Wireless
Detector With 2 PIR
Installation Guide
General Introduction On Outdoor Application
This detector is remarkable in function, but the following notices can make it more
stable if installer can pay attention to them:
WEEDS
High weeds and shrubbery in detection range may wave in wind and cause false alarm, especially
for those detectors operating in horizontal fan area, so keep cutting on weeds and shrubbery.
RAIN
Sudden rainstorm can cool the hot pitch road or surface of other roads quickly. And all detectors
can detect rain in the sky, but detector with down view window can even detect water on ground,
which will bring much more interference to detectors outdoor than that mounted on wall, so
everything will lower its temperature similar to water, human body or cars after pouring from
rain can offer very little temperature gap for detection, so sensitivity will be lowered a lot.
INSECTS
Insects will trigger false alarm when they climb into detector or stay on lens, while those staying
away from detectors can't trigger alarm. If there is interference from insects, please re-install
detector or use insecticide. And please adopts strictly sealed components on those drilled holes
or glass glue around detector.
CAR
Moving car in detection range may trigger false alarm to detector.
INSUFFICUENT TEMPERATURE DIFFERENCE
Detector is sensitive to change from temperature difference in detection area, if target temperature
is very close to previous environment temperature, there will be no temperature change, detector
sensitivity will be lowered and will not be triggered sometimes when there is intrusion.
DIRT ON LENS
Lens becomes easily dirty when used outdoor, so please check the lens from time to time in
order to avoid alarm miss caused by low sensitivity from dirty lens.
UNSTABLE INSTALLATION BASE
Detector will trigger false alarm easily if installation base can be interfered by vibration,
this is the reason why some detectors installed near to street can cause false alarm easily.
INTRODUCTION
The detector is a dual pir outdoor wireless detector with intelligent
solar charge technology;it can match most of the wireless control
panels directly and all wired control panels by wireless-to-wired
receiver . This detector adopts intelligent multigrade
digital recognition technology and unique SLT calculation to
process the 2-way special pir signal and 1 way environmental
temperature signal to reach the topgallant detection and lowest
false and missing alarm. It can recognize waving object and real
human motion; resist direct or reflective sunshine and accomo-
date the false alarm caused by speedy hot and cool air.
The detector can operate in outdoor severe environment for long
term. 8 bands of sensitivities for option, can take on the weather
difference caused by rain, snow, hail, strong sunshine, gale etc,
it is a purely high-class outdoor detector worthy of selection and
usage.
BRIEF INTRODUCTION
- 2 Dual PYRO Sensors
- VLSI based electronics with movement
speed spectrum analysis.
- 8 bands of sensitivities for option ；
- Digital environmental temperature detection ；
- Anti strongly mutative hot/cool air；
- Intelligent solar charge technology ；
- Anti direct or reflective sunshine；
SPECIFICATIONS
attery power : 3.7V lithium chargable battery,
Current: Static ---70uA Alarm ---20mA
DC Power Input: 5.5V@40-50mA Solar panel
Warm up period： 40s
Install high: 1.8m-2.4m
Alarm time: 2s
Anti RFI/EMI: 0.1-500MHz/3V/m
Anti-white light: >100000LUX
Low battery alarm: 3.2V
Temp compensation: intelligent digital compensation
Temperature: -10℃/+55℃
Humidity(RH):
95%
Sensitivity: 8 grades adjustable
Detect speed: 0.2m/s to 3.5m/s
Radio emission ： ≥200m （Open space）
Frequency: 315/433MHz etc.
Encoding: PT2262
Dimensions: 160mm*65mm*50.5mm
12m*12m 110° （Standard Lens）
Coverage:
12m*3m 12° (Curtain Lens)
12m*12m 110° (Pet Lens)
- Anti strongly mutative hot/cool air；
- Pet immunity up to 25kg (With particular pet lens)
- 18 bands Fresnel lens (Standard wide angle lens)
- Anti UV ABS housing
- Fully-sealed optical design
- All-directional bracket installation: H90°and
V30°adjustable
+6m
2m
SIDE VIEW
-6m
TOP VIEW
Standard Lens
+6m
2m
SIDE VIEW
-6m
TOP VIEW
Pet Lens
2m
+1.5m
-1.5m
SIDE VIEW
TOP VIEW
Curtain Lens
12m
12m
12m
