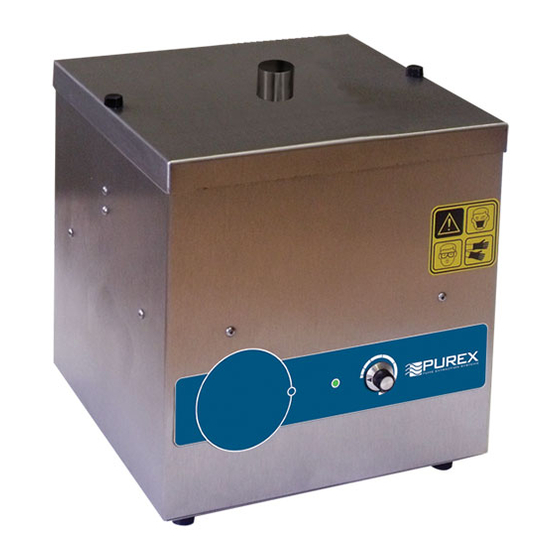

- Page 1 Analogue Series Operating Manual PUREX FUME EXTRACTION SYSTEMS Visit www.purex.co.uk for more information. “Protecting People and the Environment with Innovative Technology” 822006-rev2...
-
Page 2: Warranty Registration
T +44 (0)1405 746 030 F +44 (0)1405 746 047 w www.purex.co.uk E purex@purex.co.uk Registered Office. Purex International Ltd. QWP House, Capitol Park, Thorne, Doncaster, DN8 5TX. Registered No. 5136616 England. VAT No. GB842 5025 49 Purex Inc, 2246 Palmer Drive, Unit 108, Schaumburg IL 60173, United States. w www.purexinc.com +1847 348 5203 www.purex.co.uk... -
Page 3: Table Of Contents
CONSUMABLES & SPARES ATTENTION! Filters Should always be ordered in advance of requirement from Purex or your authorised local agent. Replacement filter part numbers are shown on the original packaging, please ensure you make a note here for future reference:... -
Page 4: Ec Declaration Of Conformity
2006/42/EC Machinery Directive 2011/65/EU RoHS Directive we certify that the Purex equipment stated above conforms with the protection requirements of the Council Directives indicated above on the approximation of the laws of the Member States relating to electromagnetic compatibility, low voltage and machinery safety. -
Page 5: Warnings
• Purex systems use high pressure pumps, which may cause inferior filters to burst, allowing hazardous fumes into the workplace. Do not use filters that have only been tested to BS3928, BS5295 or AS208C as these standards are flow checks only and are designed to test filters used in general dust extraction and air conditioning. -
Page 6: Installing The Machine
• If a special connection kit or attachment is required please contact Purex or your local agent. Ensure all connections are properly sealed and that there are no kinks in the hose. Once secured in position, connect the hose/s to the inlet/s on the machine either by pushing the hose onto the inlet or by using the connections supplied. -
Page 7: Installing The Machine
Xbase Alpha KompressAIR 1500i 2000 Safe 400i Dust 2000i Cube Cube Buster Lite Safe Dust Cube INSTALLING THE MACHINE 400i PUREX FUME EXTRACTION SYSTEMS Fume 200i Alpha 1500i FumeCube Fume Fume Fume FumeCube Fume Alpha 1500 FumeCube Fume FumeCube Fume... -
Page 8: Control System
Please note that setting the vacuum level unnecessarily high will reduce filter life. Fully Automatic Flow Control The vacuum is the only parameter that needs to be set by the operator. The Purex machine will automatically maintain the vacuum level you have set without any further intervention required. Alarms •... -
Page 9: Filtration & Changing Filters
Occupational Health & Safety hazard. The correct procedure is as follows: - • Ensure your process is stopped • Switch off your Purex machine at the control panel (see control system) • Turn the door locks on the front of the machine (Alpha & Xbase) •... - Page 10 • Insert the new filter (completely) into the machine ensuring that the airflow arrow on the label (7) is pointing up. • (Purex recommend the pre-filter is also changed unless you know it has been already changed recently) • Turn the filter locking handle 180º clockwise so that it is horizontal and in the filter locked position •...
-
Page 11: Filtration & Changing Filters
Alpha FumeCube Xbase Alpha 1500i KompressAIR 1500i 300i Cube Lite Cube Safe Lite Dust Safe Dust PUREX FUME EXTRACTION SYSTEMS FILTRATION & CHANGING FILTERS PUREX FUME EXTRACTION SYSTEMS Fume FumeCube Fume Fume FumeCube Alpha Fume FumeCube Alpha FumeCube 1500 ressAIR... -
Page 12: Interfacing & Changing The Fuse
• Remove the blown fuse by unscrewing the fuse holder cap (using a suitable screwdriver) in an anti-clockwise direction and withdraw the spent fuse. • Check the fuse holder, if there are any signs of damage contact Purex Technical support, if there is no obvious damage continue as follows. -
Page 13: Troubleshooting
If OK then increase airflow level (speed control models only) The main filter has a shorter than expected life. Large particles may be bypassing the particle pre-filter. Check the particle pre-filter which may be damaged or missing. www.purex.co.uk - 13 - purex@purex.co.uk... -
Page 14: Terms & Conditions
6.10.5 Purex (and, where applicable, the original manufacturer of the Software) do not warrant that the functions for payment shall be of the essence. If the Purchaser fails to pay Purex any sum due pursuant to the Contract, the contained in the Software will meet Purchaser’s requirements or operate in the combination that may be selected... - Page 15 - 15 - purex@purex.co.uk...
- Page 16 Unit 108, Schaumburg Illinois 60173 United States T: +1847 348 5203 W: www.purexinc.com Registered Office. Purex International Ltd. QWP House, Island Drive, Capitol Park, Thorne, DN8 5UE. Registered No. 5136616 England. VAT No. GB842 5025 49 | WEEE Producer Registration Number: WEE/CE0067TX...
