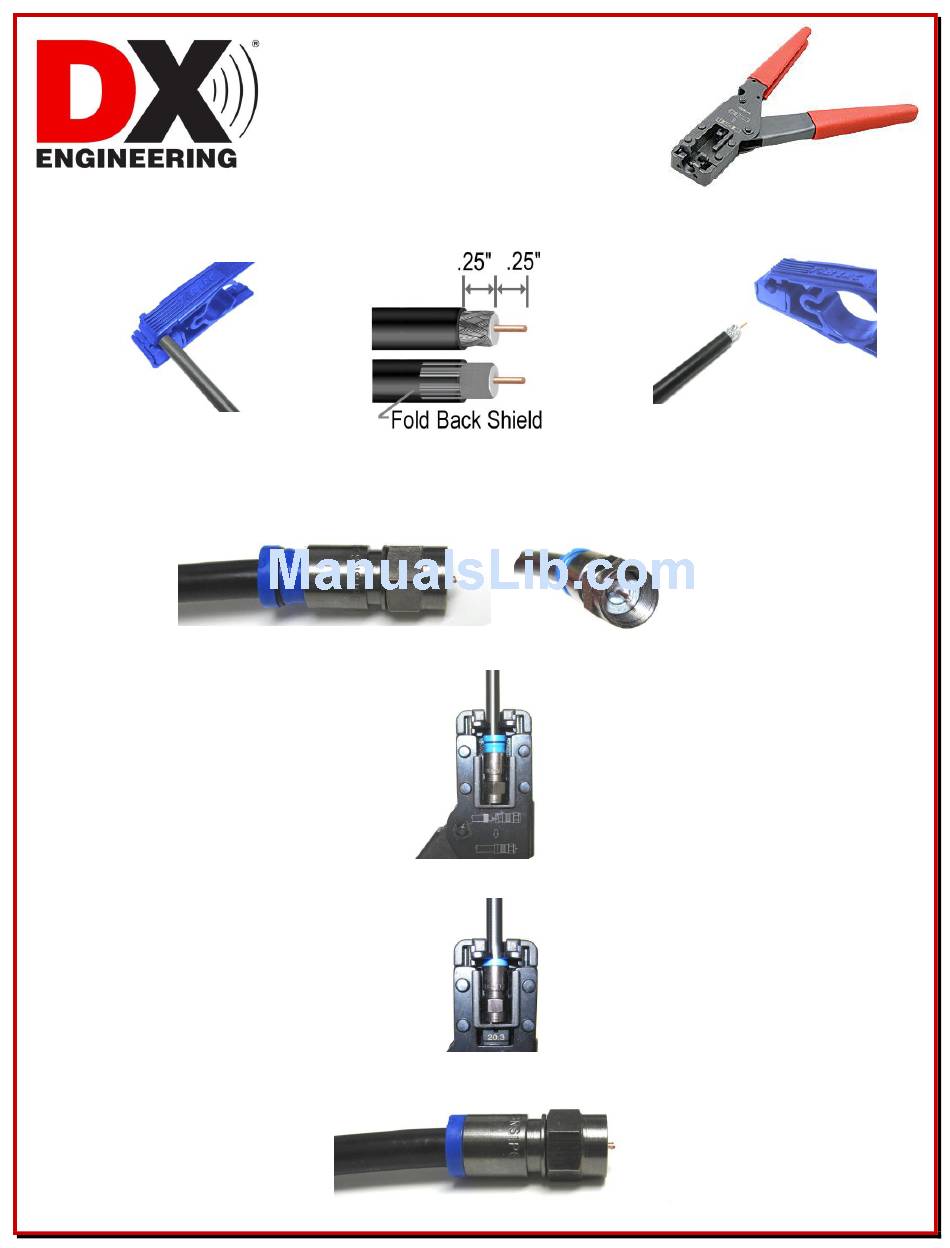

1. Place the coaxial cable end into the DXE-CPT-659 Cable Striper and rotate the tool around the cable until the
cutting action is complete as shown.
2. Insert the prepared DXE-F6 - 75Ω F-6 Style Direct Bury Coaxial Cable fully into the Snap-N-Seal
Connector as shown. Ensure the center conductor is slightly sticking out the end is as shown.
3. Place the Snap-N-Seal
4. Fully squeeze the DXE-SNS-CTI Compression Tool handles together to completely compress the Snap-N-
®
Seal
connector as shown.
5. Remove completed coaxial cable assembly from DXE-SNS-CTI Compression Tool.
Compression Tool for
®
75 Ω Coax Connectors
Snap-N-Seal
DXE- SNS-CT1
DXE-SNS-CT1-INS Rev 4a
Fold the braided shield back onto the outer jacket.
®
connector with coaxial cable into the DXE-SNS-CTI Compression tool as shown.
- 1 -
®
F-
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DX Engineering DXE-SNS-CT1
Summary of Contents for DX Engineering DXE-SNS-CT1
- Page 1 75 Ω Coax Connectors Snap-N-Seal DXE- SNS-CT1 DXE-SNS-CT1-INS Rev 4a 1. Place the coaxial cable end into the DXE-CPT-659 Cable Striper and rotate the tool around the cable until the cutting action is complete as shown. Fold the braided shield back onto the outer jacket.
- Page 2 Available Accessories for the DXE-SNS-CT1 F-Connector Compression Tool 75Ω F-6 Style Direct Bury Coax, 1000 ft. Spool - DXE-F6-1000 Hi Quality, 75Ω F6 type "Flooded" Coax Sold by the spool, or as Custom Cable Assemblies Center Conductor: 18WG Copper-Clad Steel ...
