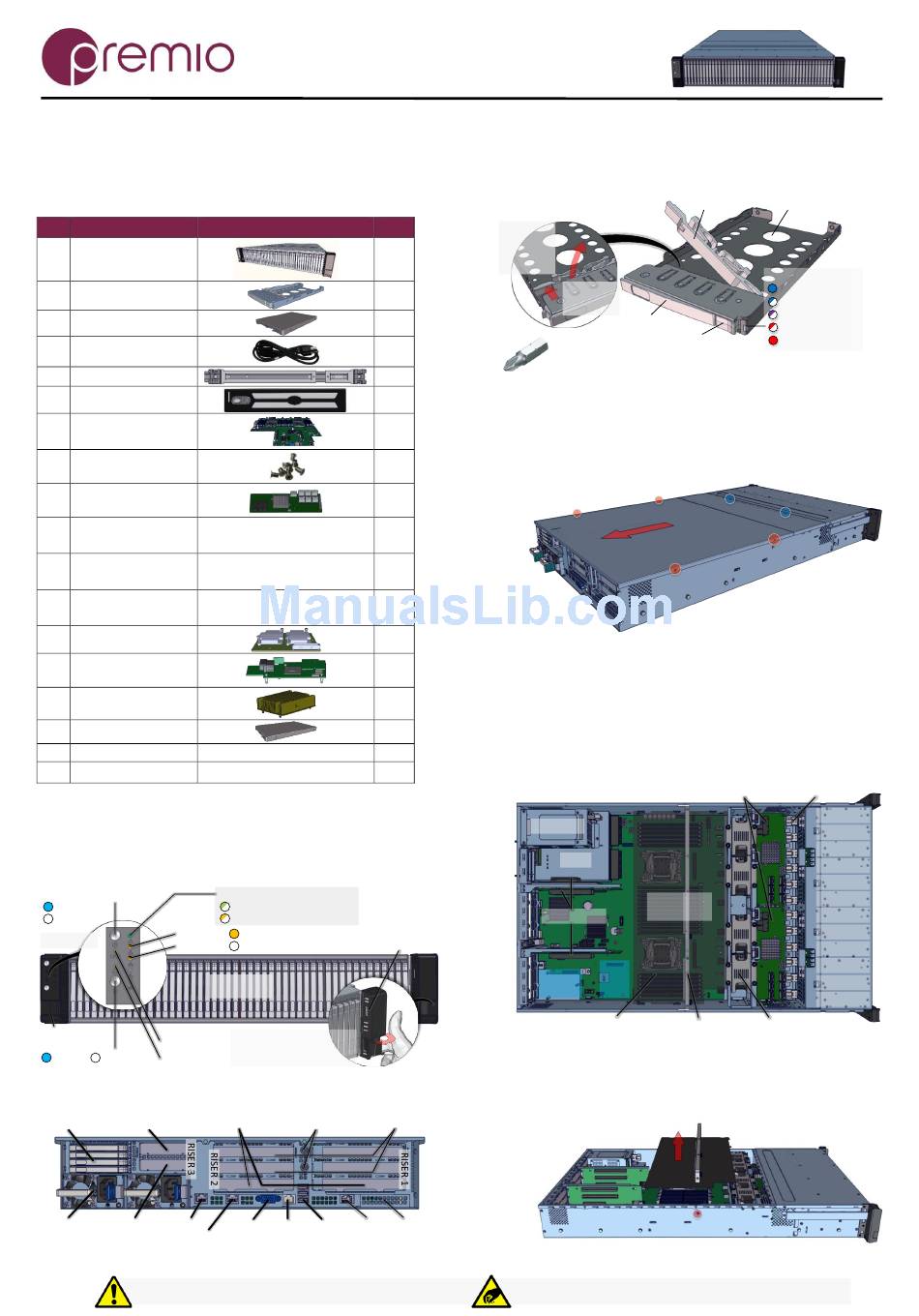

Premio Computer FlacheSAN2-D4 Hardware Quick Installation Manual

Thank you for your purchase of FlacheSAN2-D4, a 2U 48-Bay Haswell/Broadwell DP Storage Server!
1.
Check the content
your package contains the following:
# Description Image / Description
1 2U 48-Bay Enclosure
2 2.5" Drive Trays
3 Storage SSD (opt.)
4 Power Cable*
5 Rail Kit (optional)
6 Bezel (optional)
7
Intel S2600WT MB
(preinstalled)
8 6#32 IH#1 Screw Set
for MB / Riser*
9 Expander board and
SAS cables (opt.)
10 IO Cards (optional)
LSI or Adaptec RAID cards
depending on order
11a SFF 8087-8087 cable
Used for LSI cards, optionally
(preinstalled)
installed depending on order
11b SFF 8087-8643 cable
Used for Adaptec cards,
(preinstalled)
optionally installed by order
12 IO Module (opt.)
13 RAID Module
(optional)
14 Heat sink
15 OS Disk (optional)
16 This quick guide
17 Packaging
* Inside the accessories box. If any items are missing, please contact
your authorized reseller or sales representative
2.
Get familiar with the unit.
Front view of the unit
Power Button / LED:
System On
System Off
Eth0 LED:
Front Panel
Eth1 LED
Ear Handle
NMI Button
ID Button / LED:
ID On ID Off Reset Button
Rear view of the unit
4x 2.5" Disk LP PCIe Slot FH HL PCIe Slots
Bay for OS
Gen2 x4, x8 mech Gen3 x8, x8 mech
PSU LP PCIe Slot NIC 1
NIC 2
Gen3 x8, x8 mech
Installation and service of this product should be conducted by a trained
personnel to avoid bodily injury from electric shock or heavy object
FlacheSAN2-D4 Hardware Quick Guide
Version 1.20 – 2017.11.06
of the box. Please confirm that
Qty
1
48+4
48
2
1
1
1
1 set
2
1 set
12
12
1
1
2
1-4
1
1 set
System Status LED:
(Blink) System Healthy
(Blink) System Degraded
Link UP /Act
USB Port
Link Down
48x 2.5"
Drive Bay
Turn the ear handle
inwards and use the index
finger to pull the unit
Expander FH FL PCIe Slots
Serial Ports
Gen3 x8, x16 mech
VGA RJ45 USB IPMI
Port Serial Ports Port
Drive Tray
To unlock the drive lock:
1. Push the
drive lock
latch
inwards
2. Then pull
it upwards
Tool-less drive tray is best used for SSDs.
It is recommended to apply M3 screws when installing HDDs
3.
Remove the top cover
on the sides of the unit. Remove additional screws (blue
circles) to open the middle top cover (for fan module access).
Slide the covers towards the back of the unit.
4.
Inspect the internal components
FlacheSAN2-D4 system by default comes with Intel S2600WT
Haswell / Broadwell motherboard, an air duct, fan modules,
backplanes, IO cards, internal mini-SAS cables. Upon request,
optional items such as ROC Module, OS disk, BBU can be
provided. Note the locations of each component.
Expanders (or BBU for non-expander model)
Rear 4-Bay
PSU
Riser Card x3
IOM
5.
Remove air duct assembly
Remove two screws from the sides of the unit (red circle) and
pull the air duct / IO card support bar assembly up.
IOM
Slot
Observe ESD (Electrostatic Discharge) practices during integration to avoid
possible damage to the board and / or other components
Drive Lock
(unlocked position)
Drive Status LED:
Tray Handle
Tray Latch
by removing the 4 screws
Motherboard
S2600WT
RAID
Mezz
Air Duct IO Card Support Bar Fan Module x4
from the chassis.
2.5" 7mm
HDD / SSD
Tray
(Solid) Drive Online
(Blink) Drive Activity
(Fast Blink) Drive Locate
(Slow Blink) Rebuild
(Solid) Drive Fail
of the chassis.
Backplane x4
SSD 45-48
SSD 41-44
SSD 37-40
SSD 33-36
SSD 29-32
SSD 25-28
SSD 21-24
SSD 17-20
SSD 13-16
SSD 09-12
SSD 05-08
SSD 01-04
