Ethereal HDMI to Single Category Cable Transmission System.
Thank you for purchasing Ethereal's
After months of analyzing and field researching problems that plague integrators when running long distances of HD transmission over
category cable, Ethereal proudly introduces the NEW single category cable transmission system – HDM-CAT6SC. The HDM-CAT6SC
reliably transmits high speed video transmission data while monitoring and correcting for issues within the system environment. The HDM-
CAT6SC's mission is to provide a life line to those installers that not only need the wide bandwidths to support 3D, 4K 2K and 48 bit Deep
Color but also to rectify the many reliability issues that have arisen. This unit supports 340 MHz per channel over a Single Category cable 5,
5e, 6 or 7 up to 100feet and features a Custom Gain Control that will allow you the capability of optimizing the HD system. The HDM-
CAT6SC comes with Ethereal's Enhanced Signature Diagnostic System which has been expanded to include visual Video detection along
with 5 Volt, Hot Plug, EDID and HDCP. Shielded RJ45's have been selected to provide better protection against EMI/RFI interface.
Ethereal's HDM-CAT6SC is your solution for HD Alternative Transmission Devices!
System Contents:
(1) HDM-CAT6SC Transmitter
(1) HDM-CAT6SC Receiver
(2) 5V 1000mA Power Supply
(1) Instruction Guide
Features:
▲
Video Bandwidth – 340Mhz/3.4Gbps/10.2Gbps
▲
3D – All 11 formats
▲
Distance – 100ft
▲
39dB Overall Gain with Custom Gain Control
▲
Single Category 5,5e, 6 or 7 Cable
▲
LED Status Indicators
▲
Hot Plug Reset
▲
Video Clock Recovery
▲
Enhanced Diagnostics
▲
Deep Color – 48 bit color
▲
Resolution: 480p, 720p, 1080i, 1080p
▲
Table or Wall Mount
CAUTION:
Must use 5v 1000mA Power Supply included or warranty is voided. Please be aware that this is an electrical device. Improper usage can
cause fire or electrical shock. Consult a qualified installer or electrician if you are unfamiliar with electrical circuits. Be sure to turn OFF
all power to these circuits during installation.
NEW

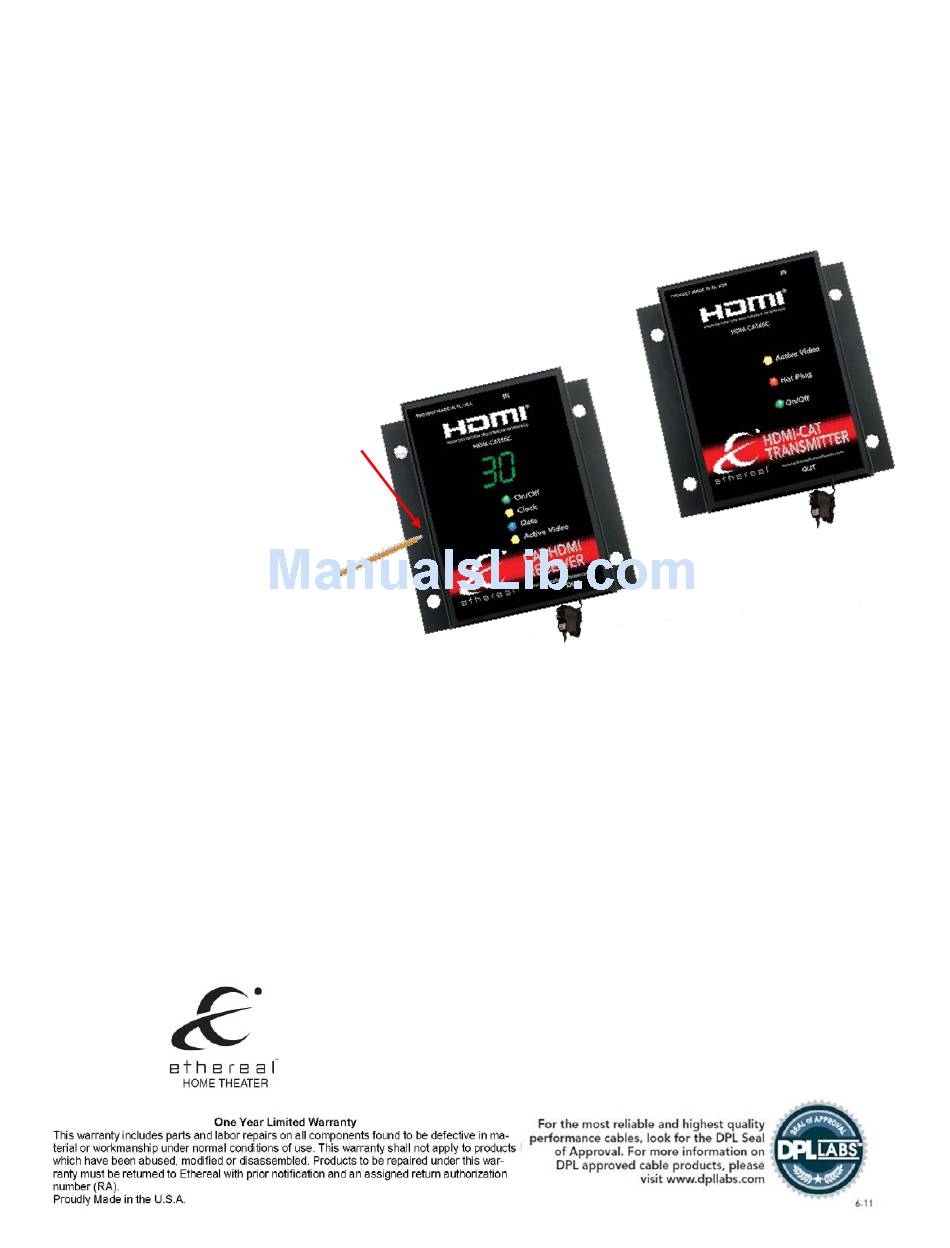

HDM-CAT6SC Single Category Cable Transmission System.
Custom Gain
Control
460 Walker Street ∙ Holly Hill, FL 32117-2653 ∙ 866-839-9187
www.etherealhometheater.com
Power
Power
