Summary of Contents for Aurender S5W
-

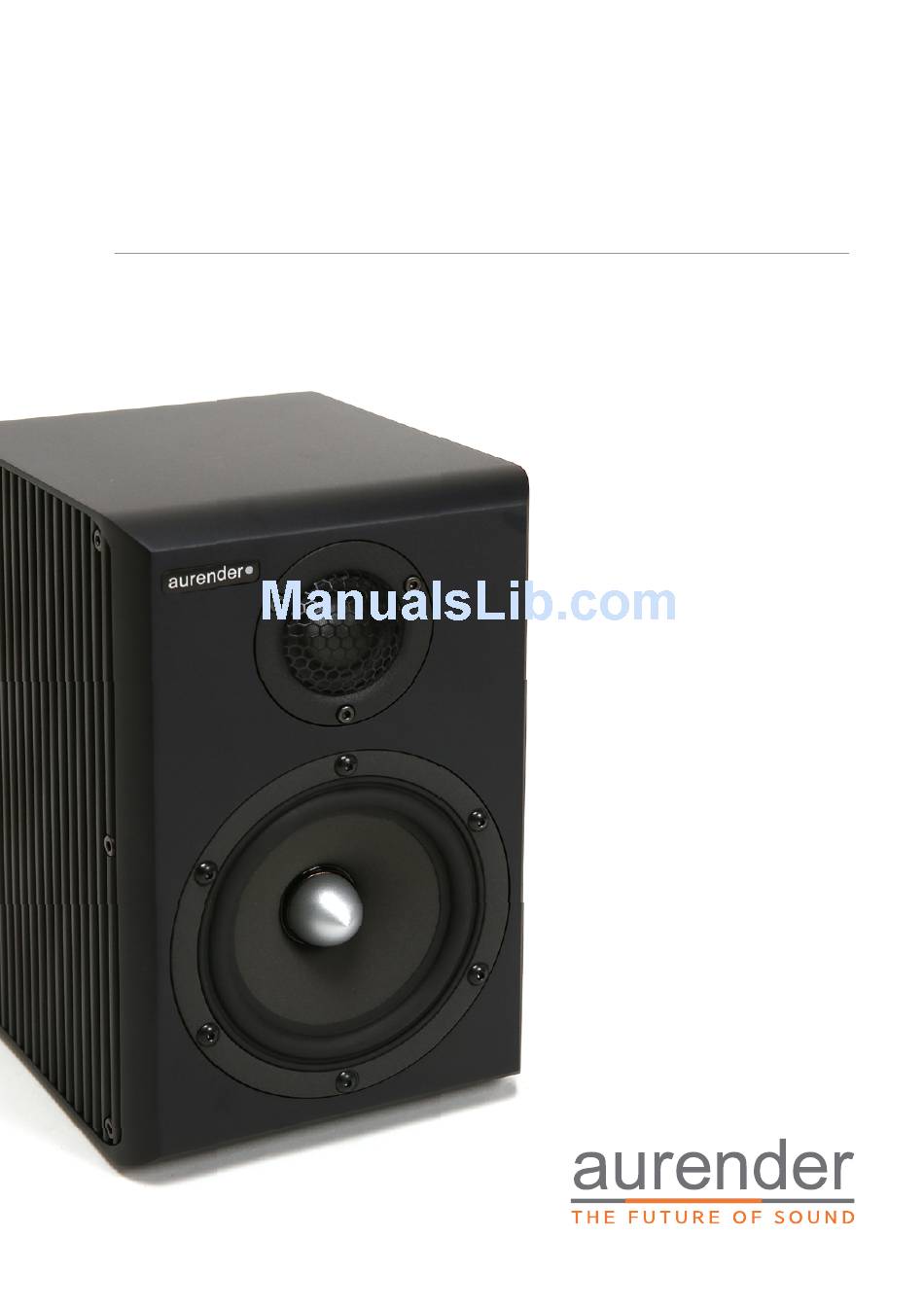

Page 1: Quick Start Guide
Battery Powered / Wireless / Active Loudspeaker System Quick Start Guide... - Page 2 STEP 1: In the Box S5W (Left and Right) Speakers, Remote control, USB WiFi dongle, Android USB- Quick Start Guide OTG cable, DC 24V adapter (x 2), Antenna (x 2), and Speaker(L) Speaker(R) USB WiFi dongle Android USB-OTG cable Remote control...
- Page 3 STEP 2: Setup Speaker Rear Power Button High Frequency adjustment Bass adjustment * The battery is not included, must purchase separately. Remote Mute Volume Up Play / Stop Next Previous Volume Down Volume Up Volume Down The speaker will activate when remote buttons are pressed (the LED will blink). - 4 -...
- Page 4 STEP 2: Setup 1. The position of the speakers is indicated by the L (Left) or R (Right) label located on the rear. Place the speakers appropriately, connect the power adapters or insert the batteries, and turn the power on using the power button. Using Battery Power - The recommended battery is the Bosch 6ah, 18V BAT622 Lithium Ion Battery.
- Page 5 STEP 2: Setup 2. Connect the USB WiFi dongle to a USB port on your smartphone or computer. When using the USB dongle with a smartphone, you will need one of the cables shown below: Android USB-OTG cable Apple USB Camera Kit cable (purchase separately) Precautions 1.
-
Page 6: Step 3: Operation
Click on the speaker icon in the lower right corner, press the mixer to select “Aurender Wireless Speaker” from the available devices, or select “Aurender Wireless Speaker” using Control Panel (Start> Control Panel> Sound menu) and select "Default Device". Note: When connecting to the computer for the first time, the volume is set to 50, so please adjust it to 5 ~ 10. - Page 7 Using with iPhone/iPad Use the Apple USB Camera Kit to connect the USB WiFi dongle. Play music on your iPhone / iPad and the sound will output to the S5W wireless speakers. USB WiFi Dongle Apple USB Camera Kit cable...
- Page 8 Android USB-OTG cable Using with an Aurender music server If you would like to use the S5W with an Aurender music server, simply insert the USB WiFi Dongle into the Aurender’s USB audio port. The Aurender must have system software version 4.9.3 or 5.9.3 and iPad Conductor App version 2.1.115 or later in order to work properly.
-
Page 9: Specification
SPECIFICATION Power Supply DC24V/2A adaptor or Bosch battery 18V/6Ah Input Wireless Audio Stream from USB dongle Tweeter 1 inch, 4 ohm dome tweeter Mid-Woofer 4.5 inch, 8 ohm woofer Bass Load Bass reflex Acoustic Sensitivity 85.5dB at 2.83V/1m Bandwidth(-6dB) 50 Hz to 22 kHz Crossover Digital Crossover 2.0 KHz 4th. - Page 10 Customer Service : support@aurender.com Aurender America Inc. 17911 Sky Park Circle Suite H Irvine, CA 92614 USA (Korea) Aurender Inc. #1612, Obiz Tower, 126, Beolmal-ro, Dongan-gu, Anyang-si Gyeonggi-do, South Korea / ZIP 14057 iPad, Airport Extreme are trademarks of Apple Inc.
