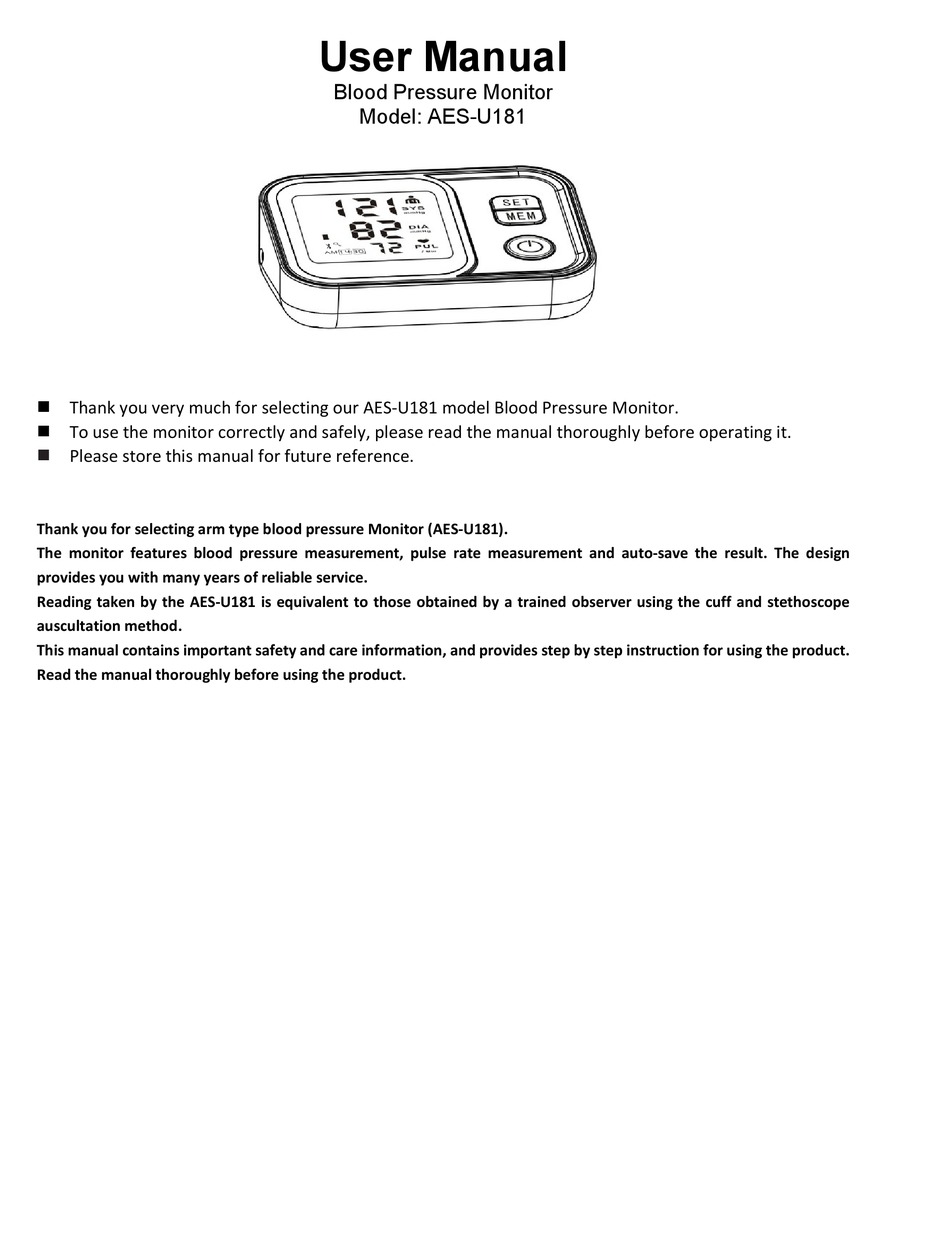

User Manual

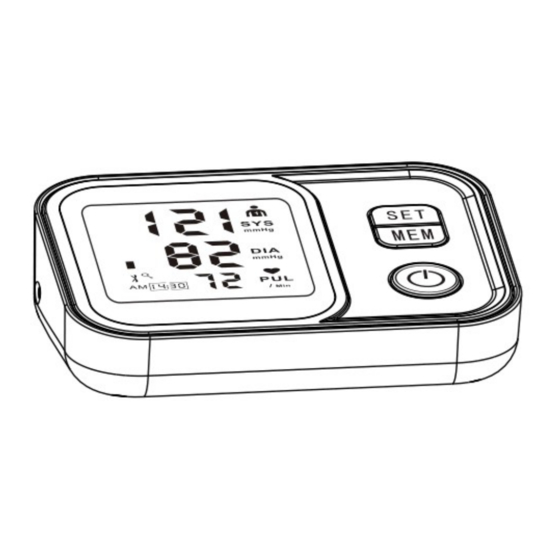

Blood Pressure Monitor
Model: AES-U181
Thank you very much for selecting our AES-U181 model Blood Pressure Monitor.
To use the monitor correctly and safely, please read the manual thoroughly before operating it.
Please store this manual for future reference.
Thank you for selecting arm type blood pressure Monitor (AES-U181).
The monitor features blood pressure measurement, pulse rate measurement and auto-save the result. The design
provides you with many years of reliable service.
Reading taken by the AES-U181 is equivalent to those obtained by a trained observer using the cuff and stethoscope
auscultation method.
This manual contains important safety and care information, and provides step by step instruction for using the product.
Read the manual thoroughly before using the product.
Advertisement
Table of Contents
Summary of Contents for MHealth AES-U181
- Page 1 The monitor features blood pressure measurement, pulse rate measurement and auto-save the result. The design provides you with many years of reliable service. Reading taken by the AES-U181 is equivalent to those obtained by a trained observer using the cuff and stethoscope auscultation method.
-
Page 2: Safety Information
Safety information The below signs might be in the user manual, labeling or other component. They are the requirement of standard and using. PROHIBITION Means Forbidden with detailed items expressed in words or figures within or beside the mark. Left one means General Forbidden. MUST OBSERVE Means Obligatory with detailed items expressed in words or figures within or beside the mark. -
Page 3: Lcd Display Signal
CAUTION This device is intended for adult use only. This device is intended for no-invasive measuring and monitoring of arterial blood pressure. It is not intended for use on extremities other than the arm wrist or for functions other than obtaining a blood pressure measurement. Do not confuse self-monitoring with self-diagnosis. -
Page 4: Monitor Components
Monitor components 1 Cuff 2 LCD 3 SET button 4 MEM button 5 On/Off button Replace the batteries in following conditions Slide off the battery cover. Install the batteries by matching the correct polarity, as shown. Replace the cover. Replace the batteries whenever the below happen: shows. -
Page 5: Tie The Cuff
Set Date&Time After chosen User, press SET button to enter the Date and Time mode. Press On/Off button to adjust the digital No., Press MEM button to confirm and enter the next parameter. Set the Voice On/Off After set the Date&Time, press SET button to enter the Voice mode. Press MEM button to choose the Voice On or Off. -
Page 6: Start The Measurement
The cuff should not too tight. You should be able to insert one finger between the cuff and your arm. Sit comfortably with your left arm resting on a flat surface. Take a rest for 5 minutes before measuring. Wait at least 3 minutes between measurements. This allows your blood circulation to recover. For a meaningful comparison, try to measure under similar conditions. -
Page 7: Recall Records
Recall records Choose the User 1 or User 2 before recall the memory. Turn off the unit, then press MEM button the recall the memory. It will show the average value of latest 3 measurements. There is a No. 3 on the Pulse position, after 1 second it will show the average pulse of latest 3 measurements. -
Page 8: Why The Blood Pressure I Get From The Hospital Is Different From Home
Why the blood pressure I get from the hospital is different from home? The blood pressure is different even during 24 hour because of the weather, emotion, exercise etc. The attention need to pay When you measure you blood pressure at home: If the cuff is tied properly. -
Page 9: Troubleshooting
Can I measure the right arm? It is ok for both arms, but there will be some different results for different people, so we suggest you measure the same arm every time. Trouble Shooting PROBLEM SYMPTOM CHECK THIS REMEDY Batteries are exhausted. Replace with new batteries Display is dim or No power... -
Page 10: Specification
The performance of the EQUIPMENT and SYSTEM that was determined to be essential performance. AES-U181 should not be used adjacent to or stacked with other equipment and that if adjacent or stacked use is necessary, AES-U181 should be observed to verify normal operation in the configuration in which it will be used. - Page 11 Guidance and manufacturer’s declaration – electromagnetic immunity The AES-U181 is intended for use in the electromagnetic environment specified below. The customer or the user of the AES-U181 should assure that it is used in such an environment. Electromagnetic environment –...
- Page 12 Voltage dips, short hospital environment. If the 40 % UT (60 % dip in interruptions and user of the AES-U181 requires UT) for 5 cycles voltage variations continued operation during Not applicable on power supply...
- Page 13 Guidance and manufacturer’s declaration – electromagnetic immunity The AES-U181 is intended for use in the electromagnetic environment specified below. The customer or the user of the AES-U181 should assure that it is used in such an environment. Immunity IEC 60601 Compliance Electromagnetic environment –guidance...
- Page 14 Recommended separation distances between portable and mobile RF communications equipment and the AES-U181 The AES-U181 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the AES-U181 can help prevent...
Need help?
Do you have a question about the AES-U181 and is the answer not in the manual?
Questions and answers
Is it chargeable?
No, the MHealth AES-U181 is not chargeable. It is powered by 4 AAA alkaline batteries (6V DC).
