Haysys PIU User Manual

Phase identification unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

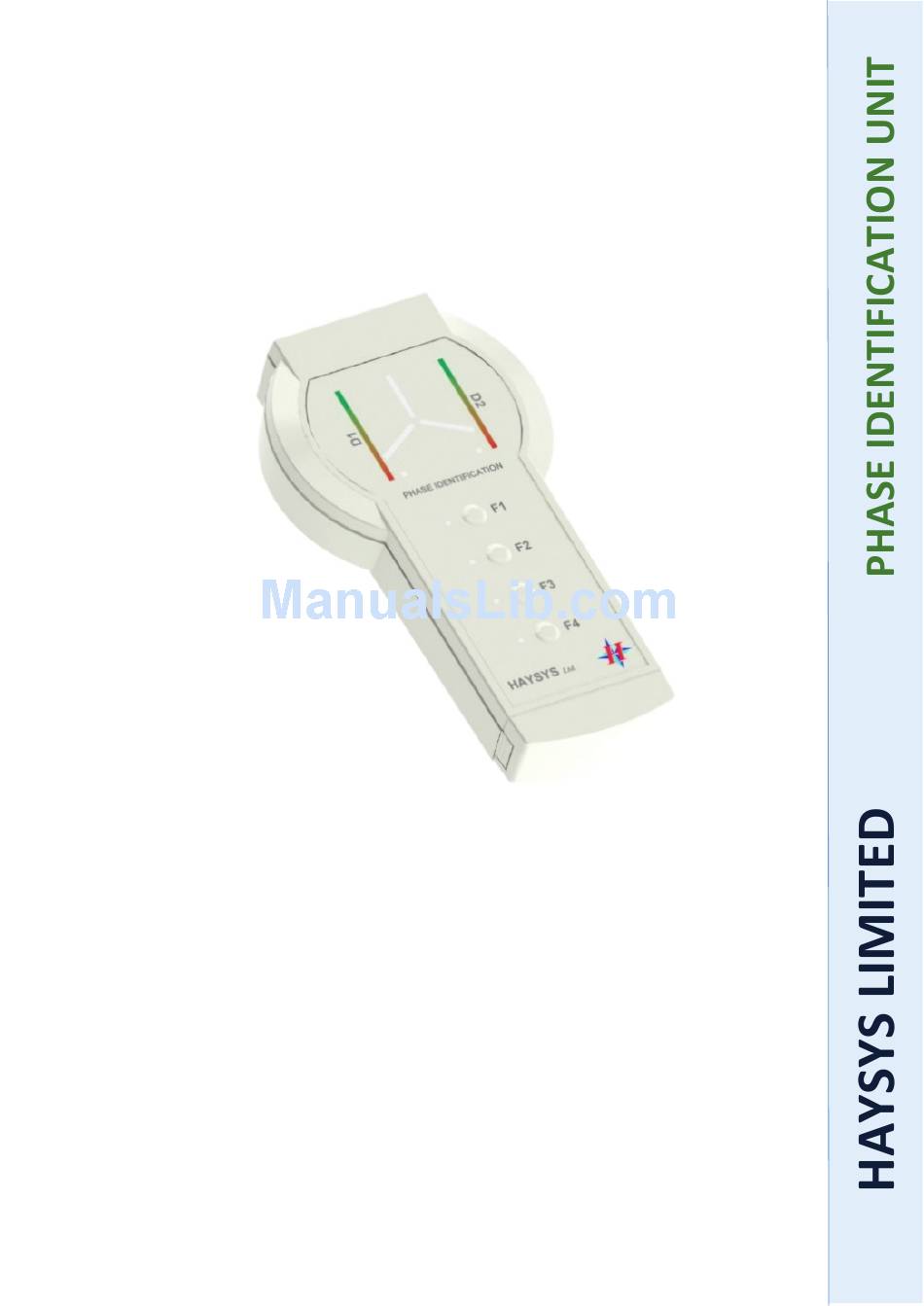

PIU USER MANUAL
© HAYSYS Limited 2018
www.haysys.co.uk
TD00040

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIU and is the answer not in the manual?

Questions and answers

Summary of Contents for Haysys PIU

  • Page 1 PIU USER MANUAL © HAYSYS Limited 2018 www.haysys.co.uk TD00040...

  • Page 2: Table Of Contents

    6.3 Turning the Unit Off ....................13 6.4 Setting the Reference Phase ..................13 6.5 Rotating the Reference Phase ................... 13 6.6 Setting the PIU to operate with Anti-Clockwise Phase Rotation ........ 14 6.7 Measured Phase Indications ..................14 6.8 Operating Modes ....................... 14 6.8.1...
  • Page 3 Table 1 - Table of Buttons and Indications ................9 LIST OF FIGURES Figure 1 - Operators Guide attached to the underside of the PIU ..........7 Figure 2 - PIU Quick Reference ....................7 Figure 3 - Front Panel Buttons ....................10 Figure 4 - Theory of Operation –...
  • Page 4 Figure 20 - PIU and Reference Dimensions ................27 Figure 21 - Connector Cover Release ..................28 Figure 22 - Pinching the Connector cover release catches ............. 28 Figure 23 - SIM Card Holder – PIU connection cover removed..........29 Page 4 of 31...

  • Page 5: Safety And Warnings

    SAFETY AND WARNINGS 1.1 E-Field Probe Care must be taken when using the PIU with E-Field Probe, to ensure that the Probe does not come into dangerous contact unintentionally with people and equipment. The PIU includes an internal E-Field probe and as such, the external probe is only required where the signal level is too low to determine the phase of the radiated E-Field.

  • Page 6: Piu Shipping

    Part Number: 148-152YAGI 2.2 PIU Shipping Mode Whilst in this mode, the PIU will be unresponsive to any button presses as the battery is disconnected for storage and shipping. When the PIU is connected to either the mains charger or to a charging source via the USB connector, the PIU will automatically come out of the Shipping Mode and will be ready for operation and testing.

  • Page 7: Levels Of Documentation

    Level - Attached to the PIU Unit Figure 1 below, shows the basic operation details of the PIU. A line under the ‘F’ character only indicates a short press of that button, while a line underneath the ‘F’ character and the following character indicates a press of three seconds or more is required.

  • Page 8: Rd Level - This Manual

    The final level of documentation is this manual which is also available as a pdf download from our website – www.haysys.co.uk. 3.4 On-line Training Videos HAYSYS is pleased to provide short videos, showing how to operate the PIU. These videos can be downloaded free from http://support.haysys.co.uk/PIU/PIUHome.aspx (registration required).

  • Page 9: Buttons And Indications

    BUTTONS AND INDICATIONS The PIU unit has been designed so that user interaction is kept to a minimum whilst providing clear phase indication. However, to further aid the user, additional functionality and displays have been provided but this is deliberately kept to a minimum.

  • Page 10: Figure 3 - Front Panel Buttons

    Phase Indication Vectors D1 and D2 Green LEDs F1 – F4 Amber LEDs F1 – F4 Buttons Figure 3 - Front Panel Buttons Page 10 of 31...

  • Page 11: Theory Of Operation

    Equally, there is no requirement to install any equipment within the local substation. Figure 4 below, shows the context in which the PIU is used and the various data connectivity the unit uses to achieve this identification.

  • Page 12: Location Of The Remote Reference Unit

    It is recommended that prior to its use, the phase indicated by the PIU is confirmed to be correct by measuring the phase of a known point (this could be within the substation or any other property where the phase is known to be correct).

  • Page 13: Using The Piu

    6.1 Checking the battery charge state Whilst the PIU is in its powered down state, a short press on the F3 button, will cause the unit to display it s battery charge state on the D2 scale for several seconds, before returning to its off state.

  • Page 14: Setting The Piu To Operate With Anti-Clockwise Phase Rotation

    6.6 Setting the PIU to operate with Anti-Clockwise Phase Rotation It may be required that the PIU is to be operated in an area, where the phase rotation is anti- clockwise instead of clockwise. The PIU has the facility to be able to be set for this operation by pressing and holding F3 whilst pressing F1 to power the PIU.

  • Page 15: User Mode

    Outer portion of the Vector Display flashing – indicates that the reference phase has not been set. This is the same as all three vectors displaying in User Mode. The PIU is actually displaying the instantaneous phase of the E-Field probe. F1 will upload this information and may be used to recover the detected phase.

  • Page 16: Low Battery Charge

    The reset is operated by pressing and holding down on the top surface of the button for 14 seconds. NOTE: If the Main Processor Reset is operated then the PIU reference will be deleted and will have to be set again before the PIU can be used to identify a phase.

  • Page 17: Connectivity

    CONNECTIVITY The PIU has a full speed USB 2.0 Interface located under the connection cover as shown in Figure 7 below. Charging Indicator USB Connector Charging Power Socket Figure 7 – Charging and USB Connector The PIU can be charged from either the Charging Power Socket or the USB Connector.

  • Page 18: The Piu Utility Application

    PC using the supplied USB cable. On checking the Device Manager of the Host PC that the PIU is connected to, the PIU Device will be listed under the Ports (COM & LPT) section along with its allocated COM port number –...

  • Page 19: Figure 9 - Piu Connected

    Next, select the IP Address tab and enter the external static IP address and port of the Remote Reference Unit (RRU) to be used with the PIU. Press the ‘Save’ button and ensure that the button changes to the green colour as shown in Figure 10 below.

  • Page 20: Setting Up The Remote Reference Unit

    ‘bridge’ between the IP Address and the USB port on the RRU. NOTE: The PIU Utility must be running on the Host PC at all times when the PIU units are being used in the field.

  • Page 21: Figure 13 - Bridge Server Details

    Figure 13 - Bridge Server details Note: The IP address of the server must be accessible from outside of the customers internal network. The example shown in Figure 13 above shows the internal IP address of the host computer. In this example, the external IP address and port is re-directed to an internal IP address.

  • Page 22: Closing The Piu Utility Application

    8.3 Closing the PIU Utility Application The PIU application can be closed by clicking on the cross in the red box in the top right corner. There will be two warnings shown, the first is shown in Figure 16 below, asks if the application should be minimised or closed.

  • Page 23: Remote Reference Unit

    If required, a Remote Reference Unit can be supplied and installed within the customer’s own premises. The Remote Reference Unit looks the same as a PIU but simply has a different mains charger socket (a 2.5mm socket instead of a 2.1mm socket) and different firmware installed.
  • Page 24 Antenna that must be positioned such that GPS Satellite Communications is achieved. The Internet connected PC also contains Data Logging software (supplied), that will allow the capture to file, of data from PIU units (see section 9). Page 24 of 31...

  • Page 25: Uploading Phase Measurement Data

    PIU and its reference for subsequent processing. This information includes the GPS position of the PIU at the time of the F1 button press, along with the date/time. Having access to this information, allows the import to third party software, such as to overlay the identified phase in a Geographical Information System (GIS).

  • Page 26: Charging

    11.1 Charging Voltage and Details The PIU has the capability to be charged via its charging socket or via its USB connector. The unit is supplied with a standard mains charger that provides 12 Volts D.C. via a standard 2.1 mm centre positive charging socket.

  • Page 27: Mechanical Details

    12 MECHANICAL DETAILS The outline dimensions of the PIU is shown in Figure 20 below. The PIU reference unit also uses the same case and therefore has the same outline dimensions. Figure 20 - PIU and Reference Dimensions The PIU unit weighs 1 Kg, including the battery.

  • Page 28: Insertion And Removal Of Sim Card

    12.3 Insertion and Removal of SIM Card The PIU uses a standard size SIM card that is inserted into the SIM Card Holder as shown in Figure 23 below. The SIM card is inserted with the contacts facing down. Pushing the SIM card all the way into the holder secures the SIM card in place.

  • Page 29: Figure 23 - Sim Card Holder - Piu Connection Cover Removed

    SIM Card Holder Figure 23 - SIM Card Holder – PIU connection cover removed Page 29 of 31...

  • Page 30: Available Options

    Not Yet Available 13.3 E-Field Probes The E-Field Probe is available as a flexible, fixed length, insulated Probe, 47 cms in length. The probe is screwed into the main PIU body to enable them to be user replaceable. Page 30 of 31...

  • Page 31: Warranty And Support

    14 WARRANTY AND SUPPORT All PIU units are supplied with a 24-month parts and labour warranty as standard. Should you have any issues with your unit(s), support can be requested directly from HAYSYS Limited, by emailing help@haysys.co.uk, quoting your model number, serial number and a brief description of the problem.
