Features & Application:
No touch / Touch free Exit Sensor (Diffused Detection)
Optical / Infrared Technology
IP-55 Ingress Protection / SUS 304 Stainless steel Plate
User friendly (Healthy protection):
Free from contagious diseases spread
Detection range: 0.1 ~ 10 cm
Application: Gate/Door/Exit/Automation control
Included:
No Touch
EXIT
PTE-300
/
PTE-500
Dimensions & Part Account:
70mm
4
44mm
3
2
1
No Touch
EXIT
Front View

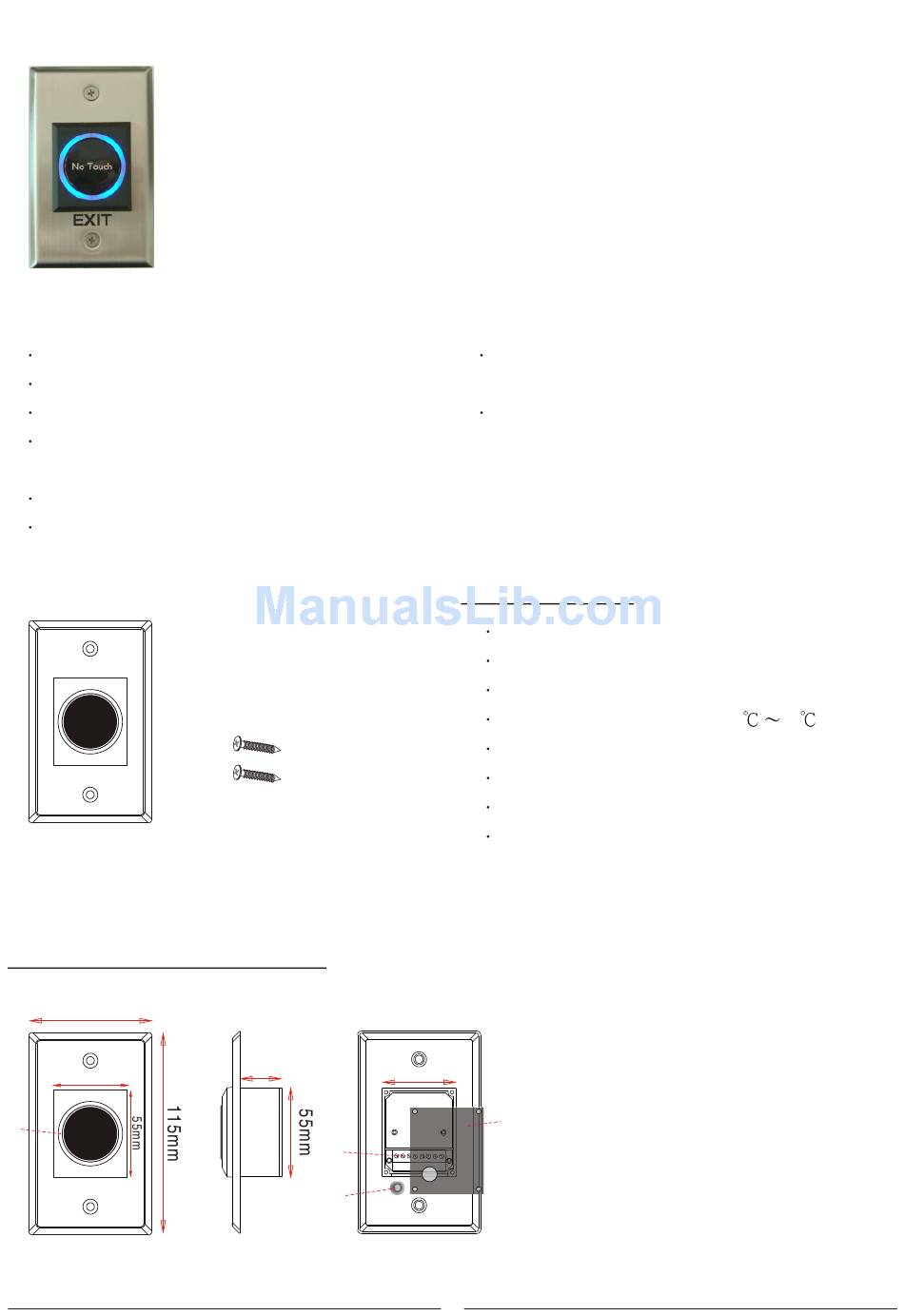

INSTALLATION MANUAL
No Touch Exit Sensor
PTE-300 / PTE-500
SCREWS
29mm
5
7
Side View
High capacity of relay dry contact (3A/AC120V,DC30V)
Normally open/Normally close/Common relay output
Twin led indicators for sensor standby or approached:
(1) Sensor Standby: BLUE LED ON
(2) Visitors whom approached to the sensor in 10 cm:
RED LED ON
Specifications:
Contact Rating: 3A/AC120V,DC30V
Input Volt.: DC 12V
Simple and clear for operation.
Operation temperature range -20
Life: 100,000 Times
Durable stainless steel plate
Dimension: 115x70x29(mm)
Weight: 85g
43mm
6
Back View
1
1. Lens: Black finish
2. Round Shape Led Indicators
3. Lens Holder: Silver finish
(Same finish as Metal Plate)
4. Metal Plate: Silver finish
(SUS 304 stainless material)
5. Terminal Block:
PTE-300: 5 blocks (1c relay)
PTE-500: 8 blocks (2c relay)
6. Lids: Bottom casing for diffused sensor
7. Rubber ring for wiring connection
