Summary of Contents for SWELLPRO S3

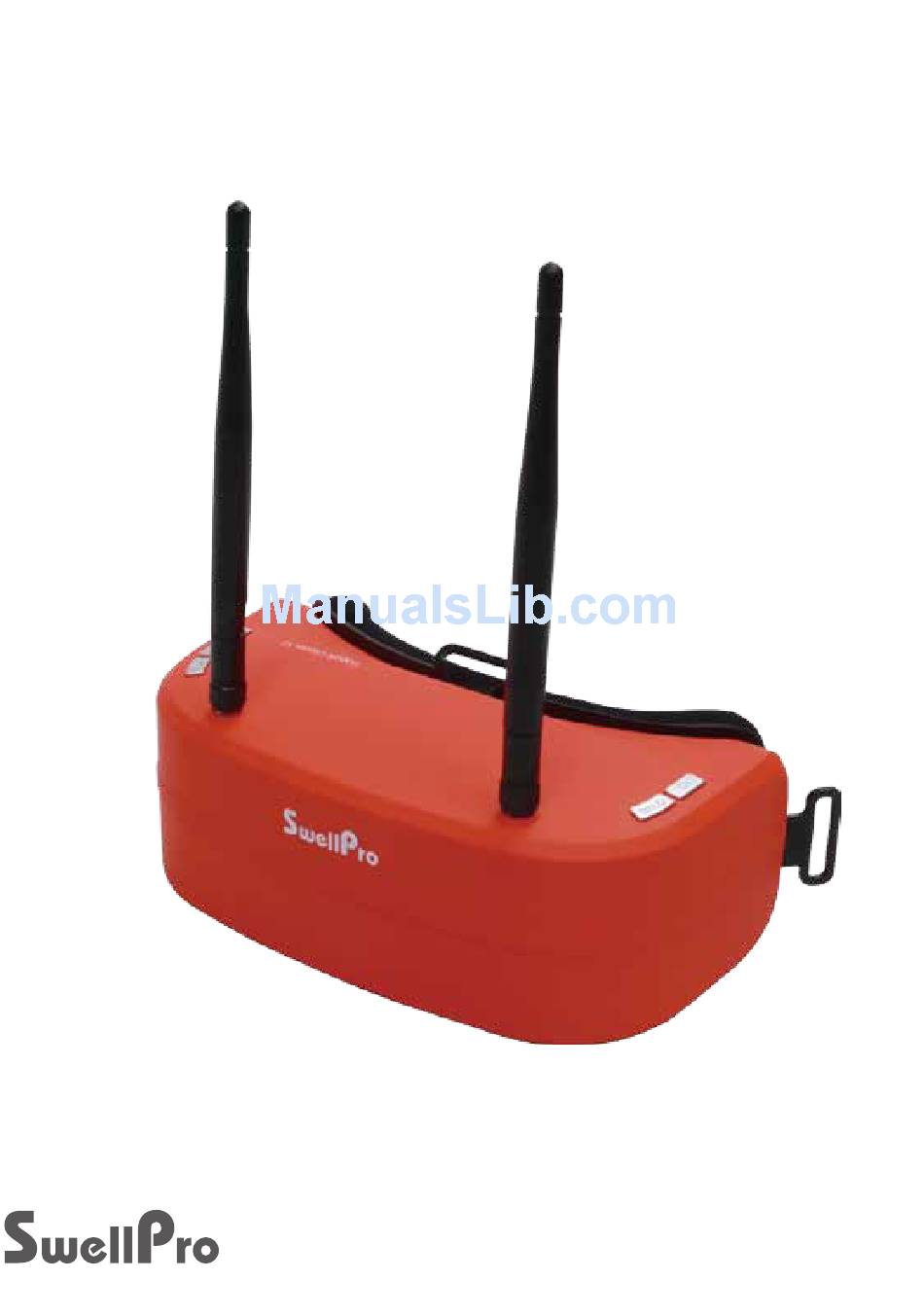

- Page 1 S3 Goggles Operation manual www.swellpro.com...
-
Page 3: Table Of Contents
Contents Contents Packing list Product llustration Product Overview Quick Start Steps Buttons Manual Frequency Selection Automatic Frequency Search Video Playback System Settings Battery Status Indications Channel list Charging for rechargeable battery Specifications... -
Page 4: Packing List
Packing list FPV Glasses S3 X1 3.7v 1500mah Lipo Goggle Battery X1 5.8G antenna X 2 7.4v 1800mah Lipo Charging Battery X1 Power cord X1 Foam Nose Piece sX 1 Instructions X1... -
Page 5: Product Llustration
Product llustration [15] [14] [13] [12] [11] [10] [1] Band / Volume increase (+) [6] Antenna Connector [11] DC Charging port [2] Channel/ Volume decrease (-) [7] F/SD card slot [12] Charging indicator [3] Power button/ Menu [8] Micro USB interface [13] Video input/ output [4] Video [9] Right pupillary distance... -
Page 6: Product Overview
LCD screens, they provide real-time video from your drone as well as allowing you to record your mission. Dual receiver technology helps ensure a stable and fast video connection. Your Goggle Glasses S3 will make you feel all the excitement of your drone flight – as if you were in the cockpit! Quick Start Steps 1. -
Page 7: Buttons
[a] Video recording status: Blue indicates view only, red indicates received video is being recorded to the TF/SD card. [b] Video timer: Hour: Minute: Second. [c] TF/SD card status: Blue indicates good card status, Red indicates no TF/SD card detected or that the card needs to be reformatted. - Page 8 button • Power ON/OFF: Press and hold for 3 seconds to turn the goggles ON or OFF. • MENU mode: briefly press the button to open the System Settings menu. • PLAYBACK mode: briefly press the button to pop up the "File Del, Push OK" dialog box, then press the SEARCH button [5] to confirm the deletion of the current video file.
-
Page 9: Manual Frequency Selection
Video Recording and Playback Before recording video using your Goggle Glasses S3, we recommended formatting the TF/SD card using the goggles. Follow the instructions in the Format SD Card section of this manual. Recording your FPV... -
Page 10: Video Playback
•Record Video: press and hold the M button [4] to start recording. Press the button again to stop the recording Video Playback • To playback videos from the TF/SD card, switch modes to PLAYBACK by briefly press the M button [4]. The Goggles will cycle between RF(FPV), AV-IN and PLAYBACK modes. •... - Page 11 In RF (FPV) mode, briefly press the M button [4] to enter the System Settings menu. System menu options: Brightness Contrast Saturation Time out / OSD REC Audio/ Record (on/ off) SD Format/ Storage card formatting Load Def/ Load default settings Setting Brightness, Contrast, Saturation and Hue: •...
- Page 12 SD Card Formatting Formatting the TF/SD card deletes all data from your TF/SD card and prepares the card for use with the goggles. Before recording video using your Goggle Glasses S3, we recommended formatting the TF/SD card using the goggles.
-
Page 13: Battery Status Indications
5740 5760 5780 5800 5820 5840 5860 5880 5658 5695 5732 5769 5806 5843 5880 5917 Charging for rechargeable battery The attached 2S lithium battery can be charged by SwellPro balance charging source or other reliable quality balance charging sources. - Page 14 Note: 1. Before charging, please keep the charger in the power on state, then connect the battery to the charger, otherwise the charger and battery will be damaged. 2. In use process, 2S lithium battery should notexcessive electrical discharge. It needs to maintain a certain amount of electricity, otherwise it will be easily damaged.
- Page 16 S3 Goggles Operation manual V1.0 2018.05...
