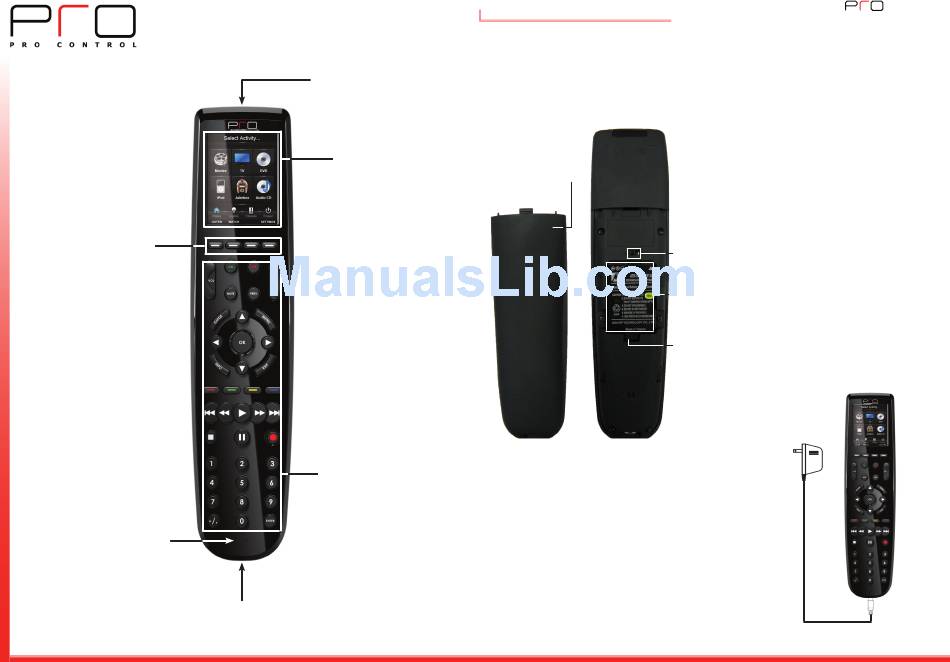

Pro Control Pro24.r Quick Reference Manual

®
Programmable
"soft buttons"
for custom
touchscreen
labeling
Charging LED
USB Port

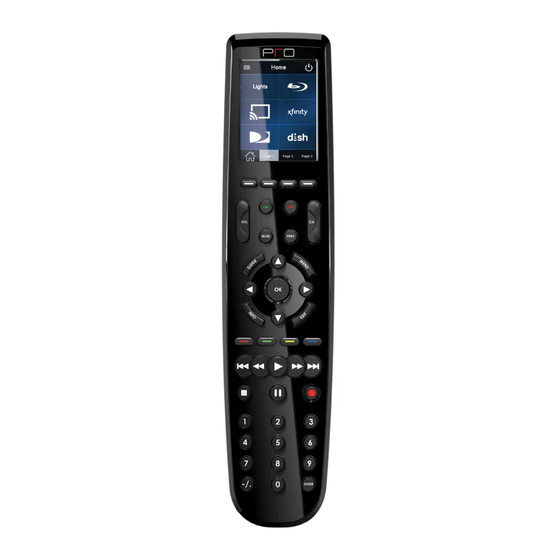

Pro24.r
Installing and Recharging the Battery
Quick Reference Guide
71-500002-15 V1.0 The Pro24.r uses a Lithium-Ion rechargeable battery that does not exhibit any type of "Memory Effect" from being charged
too often. The remote features convenient USB recharging capability, giving you even more control over how and where you
choose to recharge the remote's battery.
IR LED emitters
The Pro24.r comes equipped with:
and IR Learning
• One (1) standard USB programming cable (one Type A USB end and one micro USB end)
Photodiode • One (1) 5VDC universal AC adapter (integrated micro USB cable)
• Four (4) interchangeable AC adapter plugs for international applications
240 X 320 pixel TFT
LCD touchscreen
Programmable
"hard buttons" for
tactile control of
commonly used
functions
The Pro24.r can be charged using the included AC power supply with
integrated micro USB cable. Follow the method listed below to recharge the
battery.
NOTE: 3rd party AC Adapter cables may not fit properly and could
result in damage to the unit. Only use the supplied cable.
• Insert the micro USB end of the AC Adapter cable into the micro USB
• Plug the AC Adapter into a wall outlet.
• The Charging LED on the bottom of the unit will flash while the battery
Access Door
port located on the bottom-side of the remote control unit.
is charging, and it will solidly illuminate when the charging cycle is
complete.
Follow the steps below to install/access the rechargeable
Lithium-Ion battery.
1 Remove the access door from the rear of the
remote by sliding it down and off.
2 Orient the battery so that the charging contacts
point toward the top of the remote, and insert the
battery into the battery compartment.
3 Ensure that the battery's charge contacts are
touching the charging pins inside the battery
Power Switch
compartment .
4 Press the battery down into the compartment until it
snaps and locks in place. Turn the unit on
by sliding the power switch located above the
Lithium-Ion
Battery Pack battery compartment to the "ON" position.
5 The battery can be removed by pressing the battery
lock down and lifting the battery out of the battery
compartment.
Battery Lock
To Wall Outlet
® Get more control
®
