Paralinx Ace HDMI Quick Start Manual

Ace QSG HDMIv3.pdf 1 9/18/15

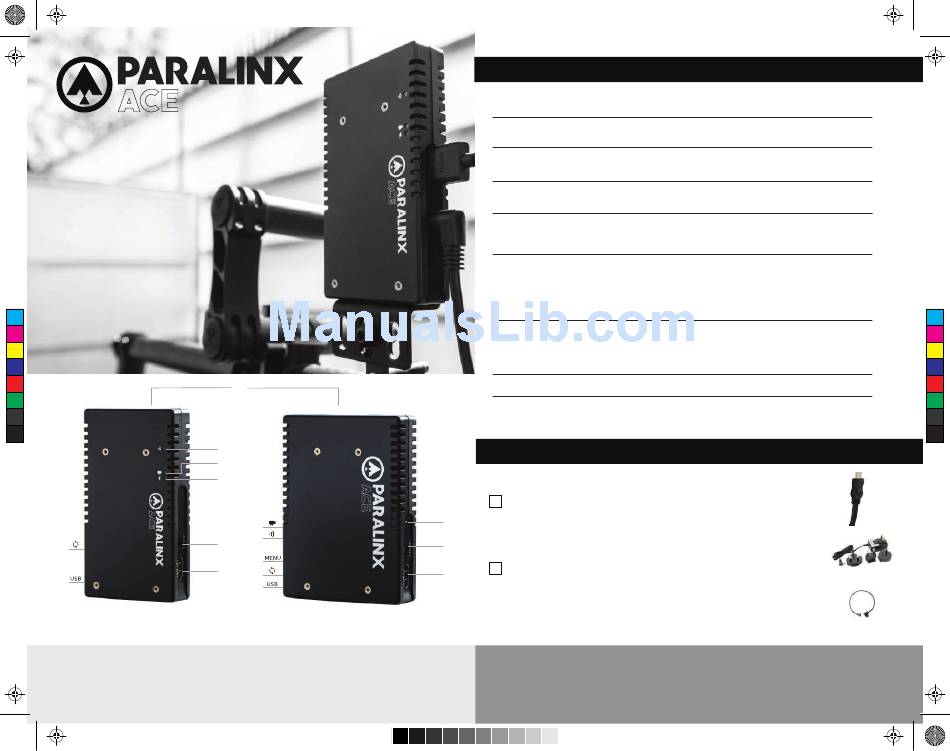

ACE HDMI

QUICK START GUIDE

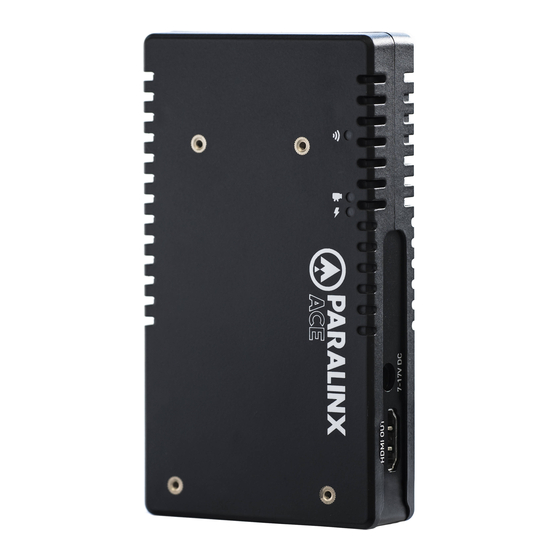

Paralinx Ace is a zero-delay
wireless video transmission
system designed for the most
demanding cinema, video,
broadcast and UAV production
applications. With a latency of
less than 1ms the Paralinx Ace
transmits 1080p60 4:2:2 video up
to 300ft / 100m line of sight over
the fully certified unlicensed
5.1-5.8ghz band.
C
M
Y
CM
MY
CY
CMY
K
A
B
TX
A: Reset Button D: Video Status LED
B: Mini-USB Port E: Power Status LED
C: Link Status LED F: 7-17V DC Input
1:29 PM
L
C
D
E
H
I
F
J
G
A
B
RX
G: HDMI Input J: Menu Joystick
H: Video Status LED K: Power Status LED
L: Internal Antennas
I: Link Status LED
ON-SCREEN DISPLAY OPERATION
Launch the status screen by depressing the Joystick (J), and cycle
STATUS SCREENS
through the screens by pressing the Joystick up, down, left or right
MAIN STATUS This screen displays the status of the wireless receiver, along with
the current video resolution, frequency, and link quality (if connected)
TEMPERATURE STATUS This screen displays the status of the current internal
temperature of the unit
Launch the menu by pressing RIGHT while the OSD is active. Exit
MENU OPERATION
the menu by pressing LEFT
Select a video output format from this menu to output a test pattern
TEST PATTERN
over HDMI.
Return to the previous video by pressing left on the 'Menu' joystick.
Select Pairing to link your receiver with another transmitter. Once
PAIRING
pairing is activated on the receiver, turn on the transmitter and use a
paper clip to hold the reset button (between the DC input and power
switch) for 1 second and release. The red warning LED and link LEDs
will blink to indicate that pairing is active
Choose when to display the OSD. By default, the OSD is displayed when
OSD SETTINGS
the link is down. "Hidden by default" hides the OSD until it is activated
by the joystick. If "Always show OSD" is selected, the OSD will be
displayed unless deactivated by the joystick
Resets all configurable options to their factory settings
RESET ALL SETTINGS
DEVICE INFO Displays the model and serial number
CONNECT AND POWER YOUR DEVICE
Connect the output from your video source to the HDMI input (G) on the
1
Paralinx Ace transmitter. Connect either the HDMI output from the Paralinx
Ace receiver to the video input on your monitor.
K
F
Connect power to your Paralinx Ace transmitter using the included P-Tap to
2
G
Barrel cable. Power the Paralinx Ace receiver with the included A/C adapter
or battery plate accessory. If using a battery plate, connect a compatible
battery to the plate, then connect the short cable from the plate to the
receiver's DC input (F).
NEED MORE HELP?
SUPPORT FORUM: http://support.paralinx.net Contains tips, information and all the latest firmware & software updates.
SUPPORT STAFF: support@paralinx.net or call +01 818-934-1535 (Mon-Fri 9am to 5pm PST - GMT -8)
HDMI SDI
AC ADAPTER
P-TAP TO BARREL
