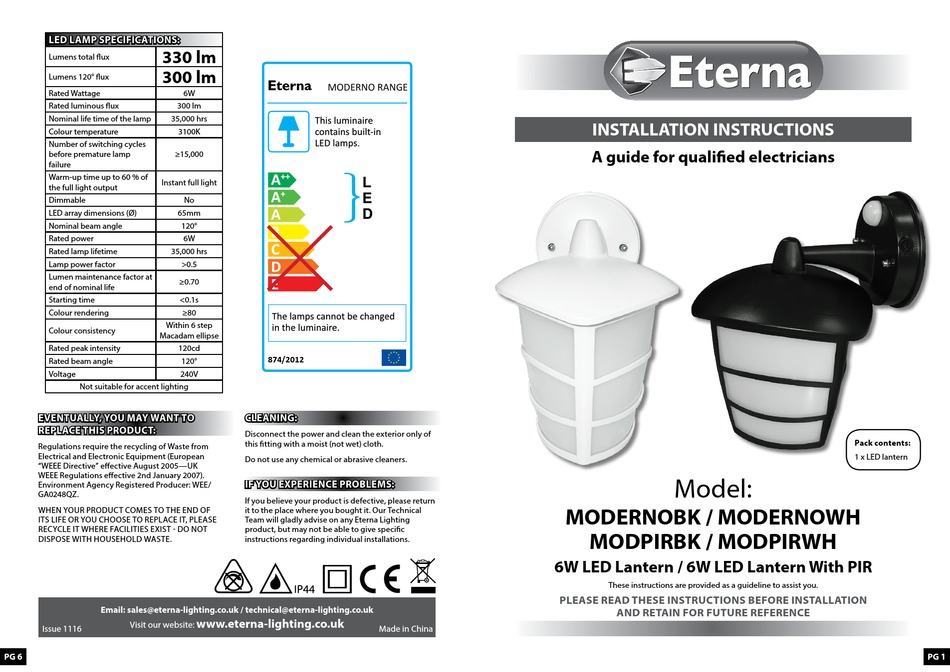

Eterna MODERNOBK Installation Instructions And Operators Manual

LED LAMP SPECIFICATIONS:
330 lm
Lumens total flux
300 lm
Lumens 120° flux
Rated Wattage 6W
Rated luminous flux 300 lm
Nominal life time of the lamp 35,000 hrs
Colour temperature 3100K
Number of switching cycles
before premature lamp ≥15,000
failure
Warm-up time up to 60 % of
Instant full light
the full light output
Dimmable
LED array dimensions (Ø) 65mm
Nominal beam angle 120°
Rated power 6W
Rated lamp lifetime 35,000 hrs
Lamp power factor >0.5
Lumen maintenance factor at
≥0.70
end of nominal life
Starting time <0.1s
Colour rendering ≥80
Within 6 step
Colour consistency
Macadam ellipse
Rated peak intensity 120cd
Rated beam angle 120°
Voltage 240V
Not suitable for accent lighting
EVENTUALLY, YOU MAY WANT TO
REPLACE THIS PRODUCT:
Regulations require the recycling of Waste from
Electrical and Electronic Equipment (European
"WEEE Directive" effective August 2005—UK
WEEE Regulations effective 2nd January 2007).
Environment Agency Registered Producer: WEE/
GA0248QZ.
WHEN YOUR PRODUCT COMES TO THE END OF
ITS LIFE OR YOU CHOOSE TO REPLACE IT, PLEASE
RECYCLE IT WHERE FACILITIES EXIST - DO NOT
DISPOSE WITH HOUSEHOLD WASTE.
Email: sales@eterna-lighting.co.uk / technical@eterna-lighting.co.uk
Visit our website:
Issue 1116
PG 6
MODELNO.
MODERNO RANGE
No
874/2012
CLEANING:
Disconnect the power and clean the exterior only of
this fitting with a moist (not wet) cloth.
Do not use any chemical or abrasive cleaners.
IF YOU EXPERIENCE PROBLEMS:
If you believe your product is defective, please return
it to the place where you bought it. Our Technical
Team will gladly advise on any Eterna Lighting
product, but may not be able to give specific
instructions regarding individual installations.
www.eterna-lighting.co.uk
6W LED Lantern / 6W LED Lantern With PIR
Made in China
INSTALLATION INSTRUCTIONS
A guide for qualified electricians
Model:
MODERNOBK / MODERNOWH
MODPIRBK / MODPIRWH
These instructions are provided as a guideline to assist you.
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION
AND RETAIN FOR FUTURE REFERENCE
Pack contents:
1 x LED lantern
PG 1
