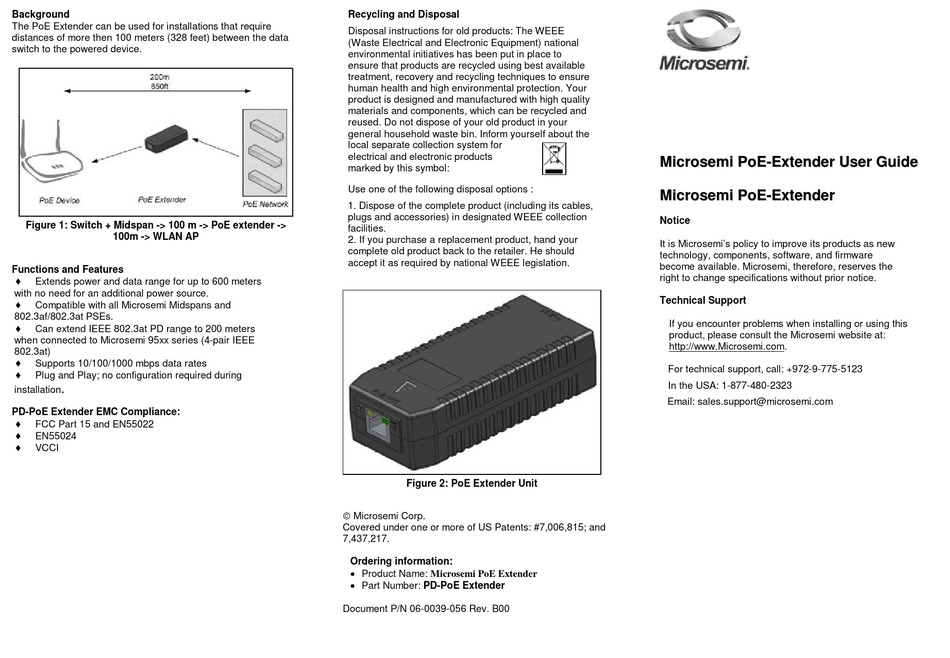

Microsemi PD-PoE Extender User Manual

B ackground
2 B
The PoE Extender can be used for installations that require
distances of more then 100 meters (328 feet) between the data
switch to the powered device.
Figure 1: Switch + Midspan -> 100 m -> PoE extender ->
100m -> WLAN AP
F unctions and Features
3 B
♦
Extends power and data range for up to 600 meters
with no need for an additional power source.
♦
Compatible with all Microsemi Midspans and
802.3af/802.3at PSEs.
♦
Can extend IEEE 802.3at PD range to 200 meters
when connected to Microsemi 95xx series (4-pair IEEE
802.3at)
♦
Supports 10/100/1000 mbps data rates
♦
Plug and Play; no configuration required during
.
installation
P D-PoE Extender EMC Compliance:
4 B
♦
FCC Part 15 and EN55022
♦
EN55024
♦
VCCI
Recycling and Disposal
Disposal instructions for old products: The WEEE
(Waste Electrical and Electronic Equipment) national
environmental initiatives has been put in place to
ensure that products are recycled using best available
treatment, recovery and recycling techniques to ensure
human health and high environmental protection. Your
product is designed and manufactured with high quality
materials and components, which can be recycled and
reused. Do not dispose of your old product in your
general household waste bin. Inform yourself about the
local separate collection system for
electrical and electronic products
marked by this symbol:
Use one of the following disposal options :
1. Dispose of the complete product (including its cables,
plugs and accessories) in designated WEEE collection
facilities.
2. If you purchase a replacement product, hand your
complete old product back to the retailer. He should
accept it as required by national WEEE legislation.
Figure 2: PoE Extender Unit
 Microsemi Corp.
Covered under one or more of US Patents: #7,006,815; and
7,437,217.
Ordering information:
• Product Name: Microsemi PoE Extender
• Part Number: PD-PoE Extender
Document P/N 06-0039-056 Rev. B00
M i c r o s e m i P o E - E x t e n d e r
M i c r o s e m i P o E - E x t e n d e r
M M i i c c r r o o s s e e m m i i P P o o E E - - E E x x t t e e n n d d e e r r
Notice
It is Microsemi's policy to improve its products as new
technology, components, software, and firmware
become available. Microsemi, therefore, reserves the
right to change specifications without prior notice.
Technical Support
If you encounter problems when installing or using this
product, please consult the Microsemi website at:
http://www.Microsemi.com.
For technical support, call: +972-9-775-5123
In the USA: 1-877-480-2323
Email: sales.support@microsemi.com
