XDream X-Cell Plus Quick Start Manual

Quick Start Guide

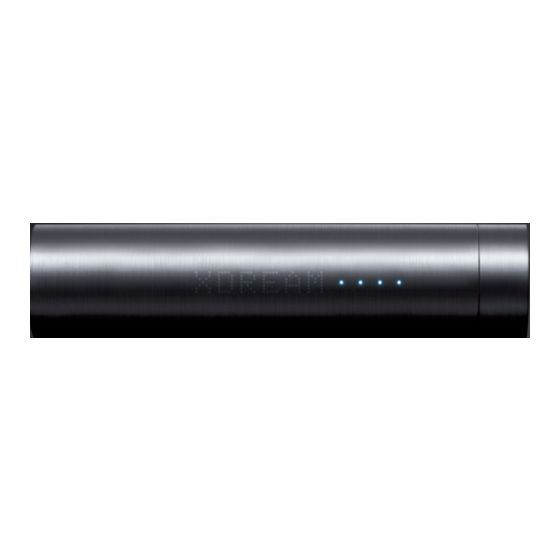

X-Cell Plus is your new source of mobile energy. Acting as both a
3000 mAh power bank and a speaker stand, it fuels your mobile
entertainment with clear, crisp sound whilst charging your
device.
Components of X-Cell
1. Power Indicator
2. Battery Indicator
3. Full Frequency Speaker
4. Locating Shaft
5. USB Power Port
6. 3.5 mm Audio Plug
7. Sound Box Pilot Hole
Accessories
USB Cable x 1
To Charge X-Cell
X-Cell does not have a dedicated adapter
and you can use any adapter with
an USB interface such as the adapters of
iPhone, iPod, iPad or Nokia, etc. <Fig.2>
To charge X-Cell through USB jack of
your computer. <Fig.3>
When the charging process is started,
the indicator will flicker one by one in
the direction of the arrow. <Fig.8>
When all indicators light, charging is
complete.
Features
Portable external battery for mobile devices
3000mAh high battery capacity
High quality & full frequency speaker
Switch on and off through detecting audio signal automatically
Power input and output through single USB port
<Fig.1>
2
3
<Fig.2>
1
<Fig.3>
Adapter AC
110V~ 220V
The maximum input voltage of X-Cell is 5V, please read the
specification manual instrution of the adaptor you will use.
6
4
5
7
USB Connector
