SERVER EDGE SW4I-03457-100 User Manual

Serveredge HDBaseT 4K2K 4-Input Switcher with (1) HDBaseT (3) HDMI Inputs,
(1) HDBaseT (1) HDMI Mirrored Outputs, IR, Ethernet & Control - 100m
Part No: SW4I-03457-100

PRODUCT DESCRIPTION

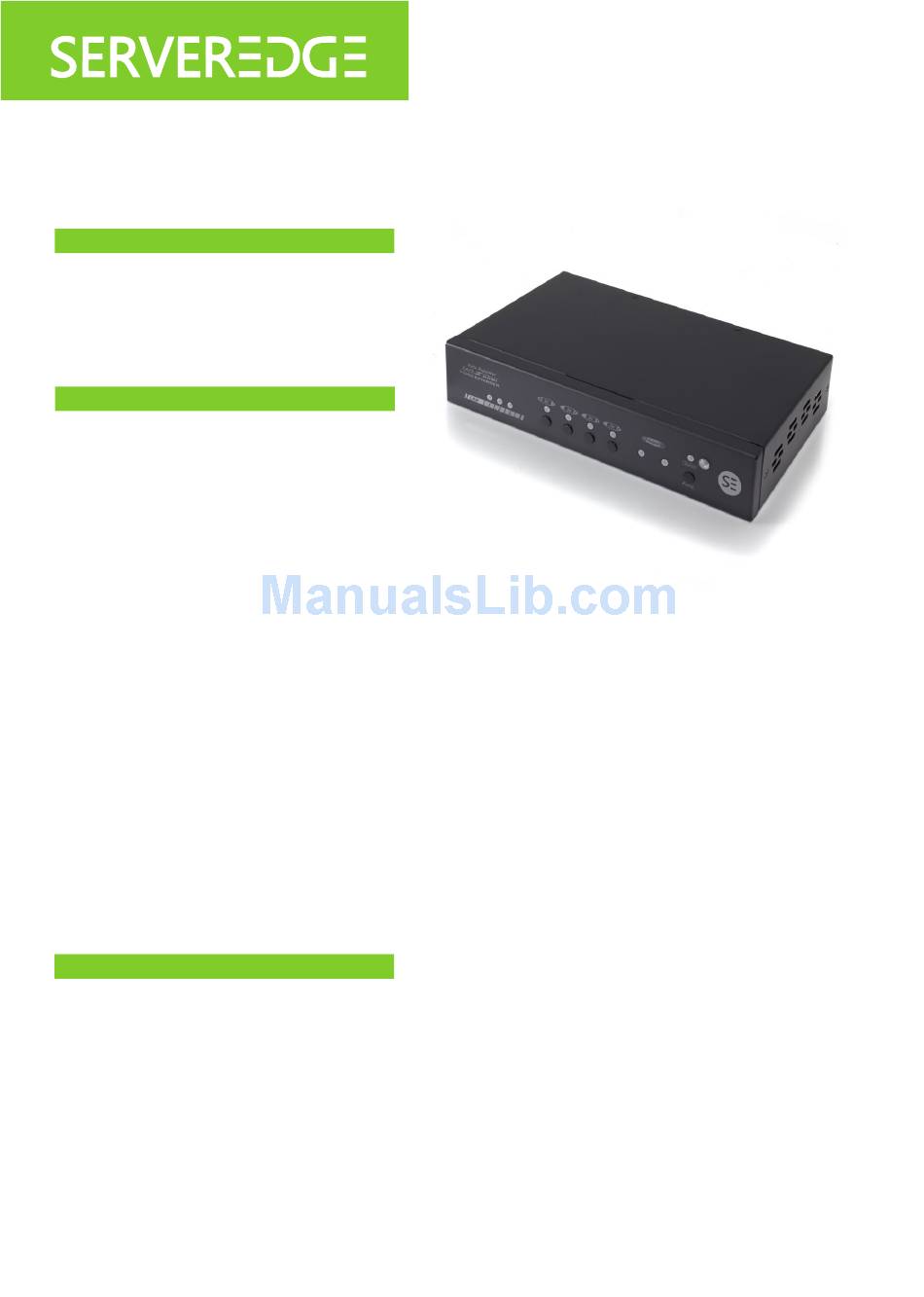

The Serveredge SW4I-03457-100 is a 4 x 1 switcher with one HDBaseT
input, three HDMI inputs, mirrored HDMI and HDBaseT outputs enabled
with automatic input selection and automatic display control capability. It
transmits AV signals along with Ethernet, power, Bi-Directional IR and
control over a single cable to displays up to 100 meters from the switcher.
Control options include automatic input selection, front-panel buttons,
and compatibility with IR and RS-232.
PRODUCT SPECIFICATION

Package Includes

* 1 x SW4I-03457-100
* 1 x Power Adapter Set
* 1 x IR Remote Controller
* 1 x CD (User's Manual + Software Utility)
* 1 x Quick Start Guide
* 1 x CATx Cable (1.5M)
* 1 x Grounding Wire
* 1 x Foot Pad Set

Unit Specifications:

Model
Video Input :
Video Output :
IR Extension :
Serial Extension :
LED Indicator - Status LED :
Input / Ouptut LED :
Slide Switch - Audio/Video EDID Setting : Audio / Video / Inventory
EGO
(Advanced Auto-
Setting :
sensing)
Serial Linking Setting :
Push Button - Function :
Source Selection :
EDID Copy :
Video Resolution (max.) :
Extension Distance :
Power Supply :
Enclosure :
H x W x D (mm) :
Weight (g) :

PRODUCT FEATURES

Auto-Switching
Selects active input when sources are connected or if there is a
change in source power status. Eliminates need for complex
control system in small AV systems
Flexible control options for compatibility with 3rd-party control
systems. RS-232 controlled from HDBaseT connection reduces
integration time and costs. Front panel Input Select button and
Remote for easy switching between sources. Input source
sequence is also selectable
4×1 HDBaseT™ Switcher
Features three HDMI inputs plus a HDBaseT input and one
HDMI and one HDBaseT outputs.
SW4I-03457-100
(Remote)RJ-45 x 1
(Local)HDMI x 3
(Remote) RJ-45 x 1
(Local) HDMI x 1
x 2 (Transceiver x 1 + Receiver x 1)
DB9-F x 1
1
4 + 2
Priority / Auto-sensing / Switch
Link Mode x 4
x 1
x 1
x 2 (Local x 1 + Remote x 1)
UHD (3840 x 2160)
100M
DC 12V
Metal
34 x 190 x 125
1020~1070
4K2K
Support resolutions up to UHD (3840 x 2160), Full HD 1080p,
2048 x 1152, Deep Color and HD Audio formats
Exclusive EDID Functions
Multi-functions for EDID setting, like EDID Copy and EDID
Pre-setting, ensuring accurate output display. Can learn Audio
and Video EDID separately for multimedia / Home Theater
system integration. Read and store the EDID from the
connecting display to the video extension
Warranty : 1 Year
