READ ME FIRST – SETUP INSTRUCTIONS
Congratulations on your purchase of the
to provide exceptional performance and value. It allows access to 2 HDMI display devices from a single HDMI
video source. For a DVI device, use an optional HDMI to DVI adapter or HDMI to DVI cable.
Features:
Connectors: 1 input/2 output, HDMI Type A female
•
Supported resolutions: Up to 1080p/120Hz
•
•
Total data rate: 6.75Gbps (225MHz)
Signal repeater: Supports up to 30' cable length from
•
Splitter to Display. Note: Amplified HDMI cables can reach extended lengths.
•
•
Power: 100-240VAX, 50/60Hz
Dimensions: 2.75"W x 2.75"L x 1.2H
•
Weight: 2 ounces
•

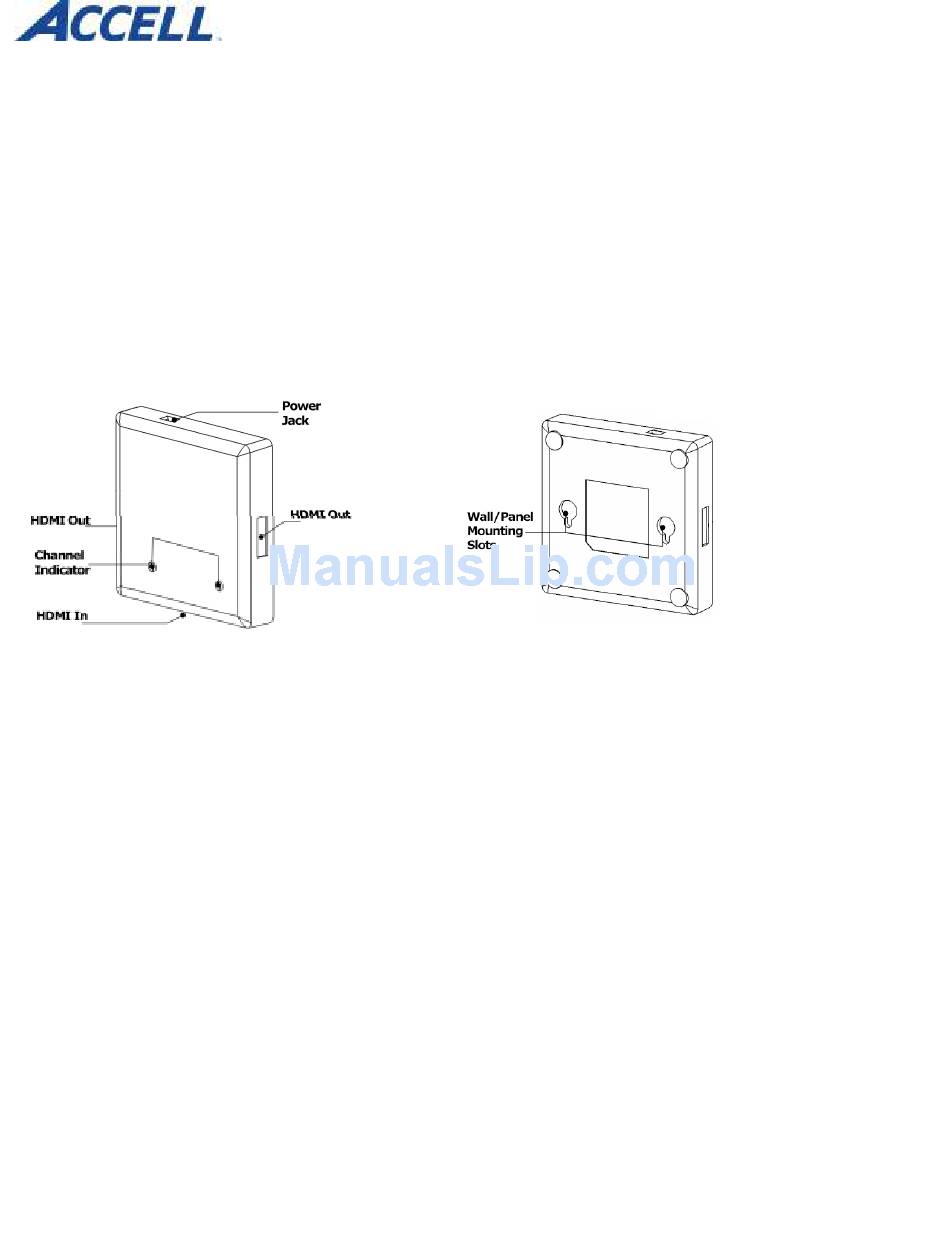

Mounting the HDMI Splitter:
As an alternative to placing the 1-2 Splitter flat on its foot pads, the HDMI splitter features 2 wall mounting slots
located on the back of the switch. The switch can easily be mounted to a wall or panel.
How to Connect the HDMI Splitter:
Step 1: Plug the power adapter into the "Power Jack" on the splitter. Plug the adapter into a power outlet.
Step 2: Connect your HDMI cable from the video source into the HDMI splitter input labeled "In".
Step 3: Connect your HDMI cables from each of the two displays into the splitter outputs labeled "Out".
Channel Indicator:
A channel indicator LED becomes illuminated when the video display, which is connected to its corresponding
HDMI port, is properly connected to it by an HDMI cable and is powered on. The LED will also illuminate when
the display is in power saving mode.
Troubleshooting:
-If the HDMI splitter fails to operate,
1. Ensure the HDMI source and the displays (or projector) are powered on.
2.
Check both ends of all of the HDMI cables to ensure that they are fully inserted into each device.
3.
Inspect the power adapter to ensure it is plugged into the power jack of the splitter. Ensure the power
adapter is plugged into the power outlet and the power outlet is supplying power.
Assistance: If you have questions regarding the Accell HDMI switch, please check out our Web site at:
www.accellcables.com. Technical Support can be reached at 510-438-9288 (M-F 9am-5pm PST).
