iData HDMI-MX414 User Manual

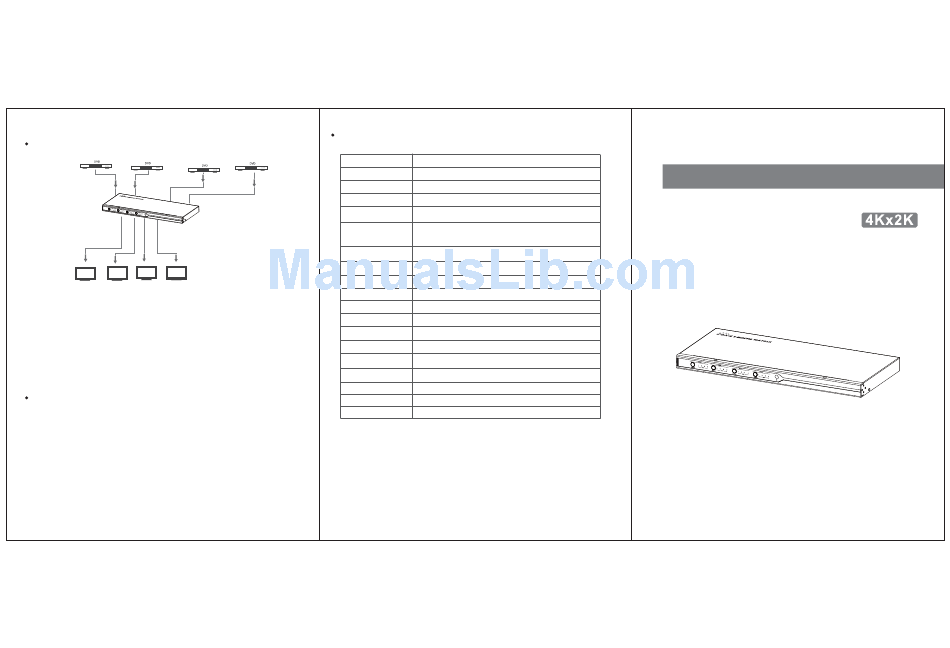

Connections
HDMI OUT
Display
1) Connect all your HDMI source devices to this product's inputs
via HDMI cables.
2) Connect up to the HD display devices on the HDMI outputs via
HDMI cables.
3) Power on all source device, this Matrix Switch and display device,
then it works.
4) Select/switch inputs and outputs via IR remote , buttons or
RS232 command.
FAQ
Q: No video/audio signal output on the displays?
A: 1) Please check and make sure the Matrix Switch is connected well
and powered.
2) Please check and make sure all HDMI cables are connected well
3) Please check and make sure the input channel of displays are
correct.
Q: Picture quality is not fluent and stable ?
A: 1) Please check and make sure all HDMI cables are connected well.
2) Tr y to connect the source device to display device directly, or
change to another source device for a tr y to see the picture quality.
3) Please use high quality HDMI1.4 standard cable when HDMI 4Kx2K
signal input.
Specification
Items
HDMI signal HDMI1.4, Full compatible with HDCP1.4
HDMI IN
Inputs 4 HDMI
Outputs
4 HDMI
Transmission rate 10.2Gbps
480i@60Hz,480p@60Hz,576i@50Hz,576p@50Hz,720p@50
Support resolution
/60Hz,1080i@50/60Hz,1080p@50/60Hz
Support audio format DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
YUV
4:2:2
0.5~ 1.5Vp-p(TM DS)
Video signal
DDC signal 5Vp-p(TTL)
Video bandwidth
340MHZ
HDMI port Type A 19 pin, female
RS232 serial control
RS232
Working temperature
0 ℃～ 60
Power supply
DC12V/2A
Power consumption
18W(Max)
400(L)x172(W)x23(H)MM
Product dimension
Weight 1.65Kg
Color
Black
Disclaimer
The product name and brand name may be registered trademark of
related manufacturers.TM and ® may be omitted on the user manual.
The pictures on the user manual are just for reference, and there may be
some slight difference with the real products.We reser ve the rights to
make changes without further notice to a product or system described
herein to improve reliability, function or design.
Specification
,
4Kx2K @ 25/30Hz
℃
4× 4 HDMI Matrix Switch
U s e r M a n u a l
