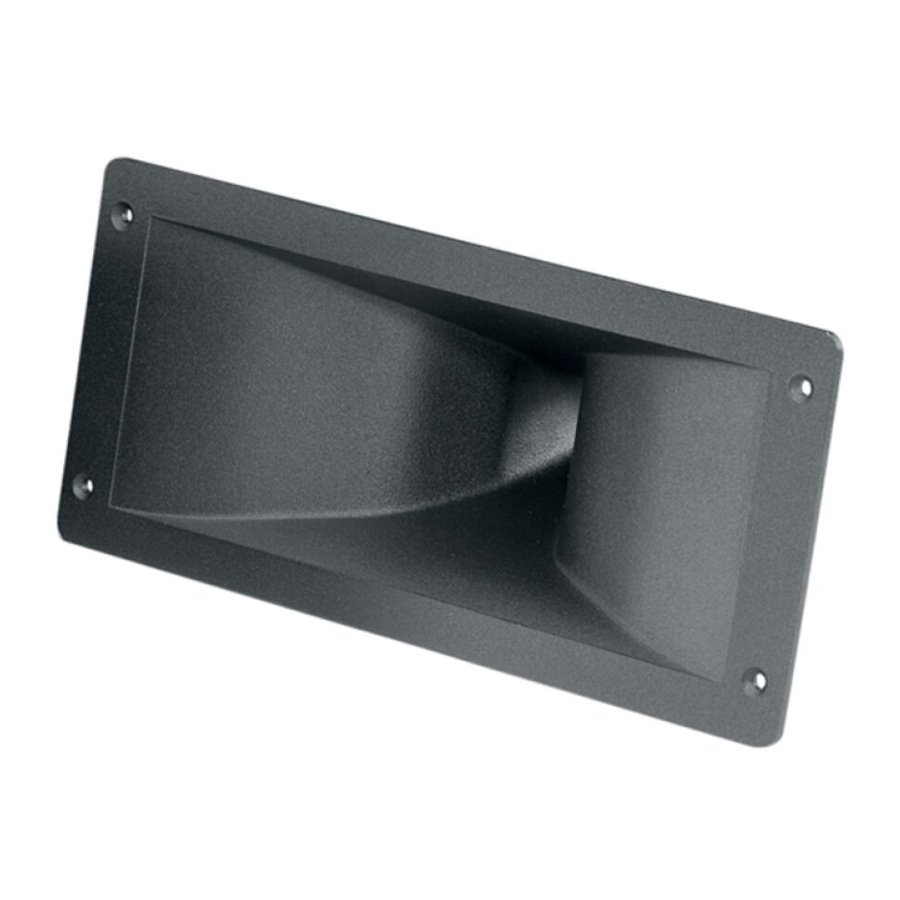

ME45
Horns
90° x 40° nominal coverage
Very good loading down to 1 kHz
Specifications
Throat Diameter (1)
Nominal Coverage Horizontal
Nominal Coverage Vertical
Cutoff Frequency
Material
Dimensions
Mounting and Shipping Info
Two 6 mm (0.25 in) holes 180°
on 76 mm (3 in) diameter
Baffle Cutout Dimensions
Net Weight (1 unit)
Shipping Weight (4 unit)
Shipping Box (4 unit)
1 Horn mounted on B&C DE25 compression driver
1" throat entry
Exponential flare
25 mm (1 in)
90°
45°
1 kHz
Cast Aluminium
310x140x124 mm
(12.2x5.6x4.9 in)
260x110 mm (10.2x4.3 in)
0.8 kg (1.8 lb)
4.9 kg (10.8 lb)
540x350x185 mm
(21.2x13.8x7.3 in)
