Wayne Scott Joness RC-1324 v2 Owner's Manual

RC-1324 v2
13 to 24 Pin Bus Converter
OWNER'S MANUAL
_______________________________________
DESCRIPTION

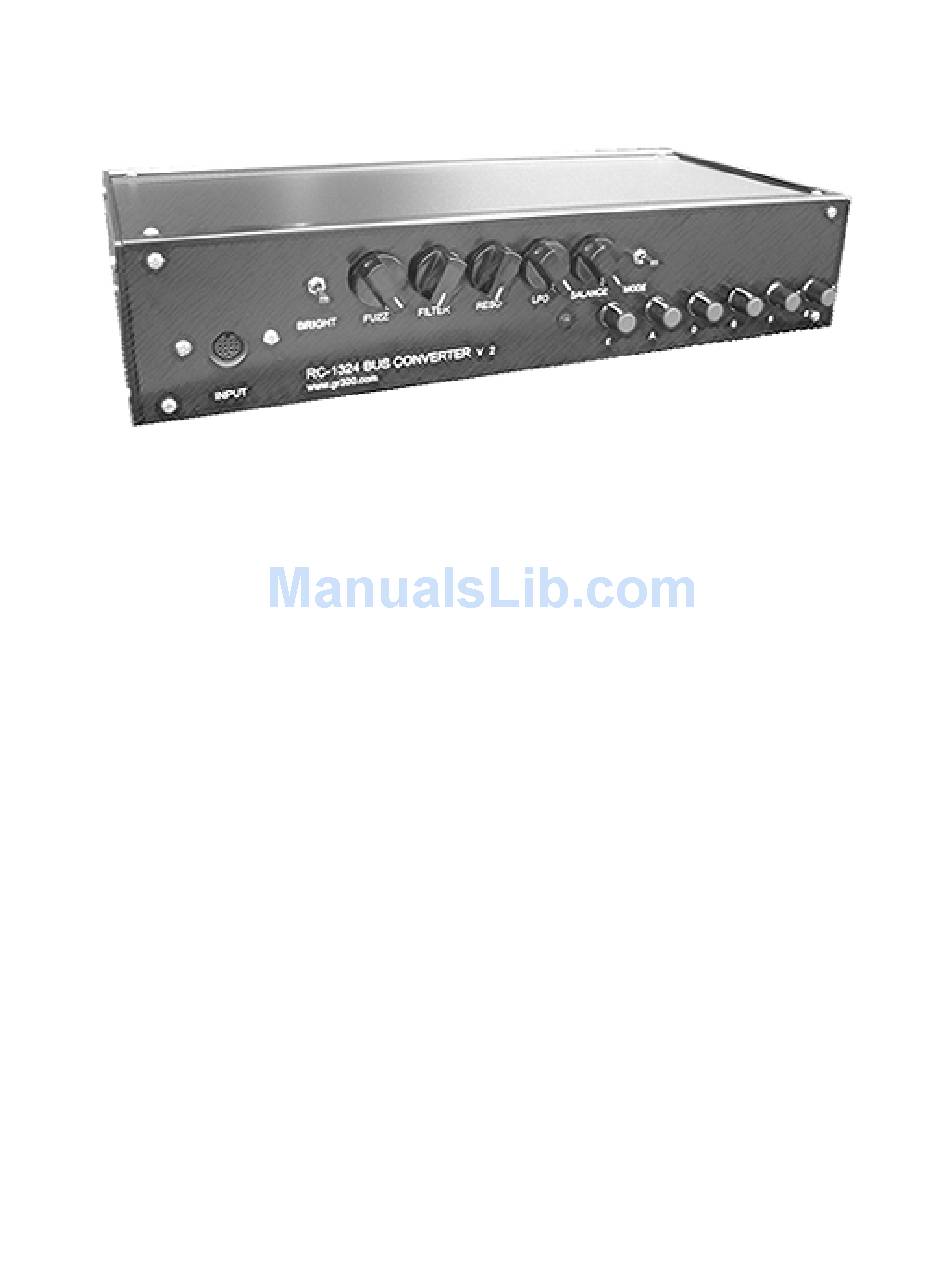

The RC-1324 is a unique processor designed to
convert modern, 13-pin Roland guitar synthesizer
signals to the 24-pin format used by vintage
Roland and Roland-compatible
synthesizers.
Because the vintage Roland guitars featured
more controls than modern systems, the RC-
1324's control panel recreates all the vital controls
for a vintage system.
In addition, the RC-1324 has its own built-in hex
fuzz generator, with a separate hex fuzz output.
_______________________________________

IMPORTANT NOTES

• When connecting
synthesizer to the RC-1324, be sure that
power to the synthesizer(s) is switched
off.
• The 13-pin connector used with the RC-
1324 is a locking style connector, and
To replace the LFO touch pads on a vintage guitar
controller, the RC-1324 has a CV pedal input on
the back for hands-free control over vibrato/LFO
guitar depth.
Please read this owner's manual carefully before
using the RC-1324.
The RC-1324 incorporates circuitry and concepts
designed by Mark Smart.
a guitar and therefore cables cannot be disconnected
unless the locking pin is released.
• Using the 1/4" output on the guitar while
at the same time using the 13-pin output
may create a ground loop or signal hum.
